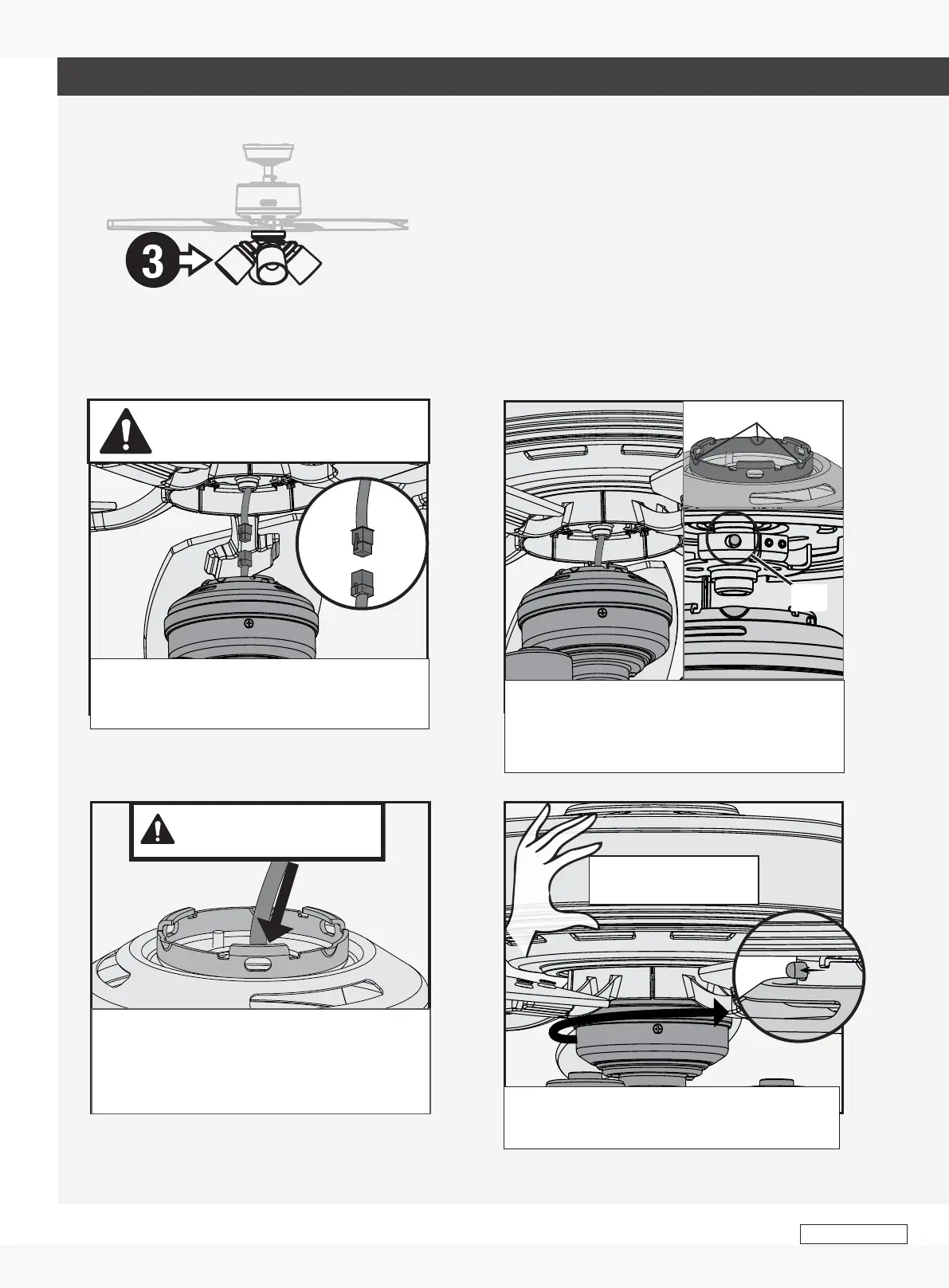

Installation – Light Kit
3a3a
3b3b
IMPORTANT
Push the connector and excess wire into the hole at
the top of the light xture. The connector and excess
wiring must be pushed into the light xture in order to
successfully mount the light xture to the fan.
Connect the plugs from the fan and light xture.
Make sure to line up the colored markings on the
connectors.
Remove the cardboard plug
guard before proceeding!
3d3d
Hold the fan body stationary and rotate the light
xture clockwise to engage the locking pin.
HOLD HERE
3c3c
Notch
Pin
Raise the light kit to the bottom of the fan. Align the
notch on the mounting ring on the top of the light kit
with the pin in the mounting bracket on the bottom of
the fan.
Fan style may vary.
Note:
