Hunter Ellipse 90064 - Existing Construction: Accessible Only from Below - Ducting; Wire Pulling and Duct Attachment; Securing Housing to Joist; Wiring Connections Diagram

41722-01 09/09/2011
16
D13
2
1
D14
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
Red
Red
White
Black
Black
White
White
Bare Copper
Ground
D16
Night Light
Night Light
Switch 1 (AC In)
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option

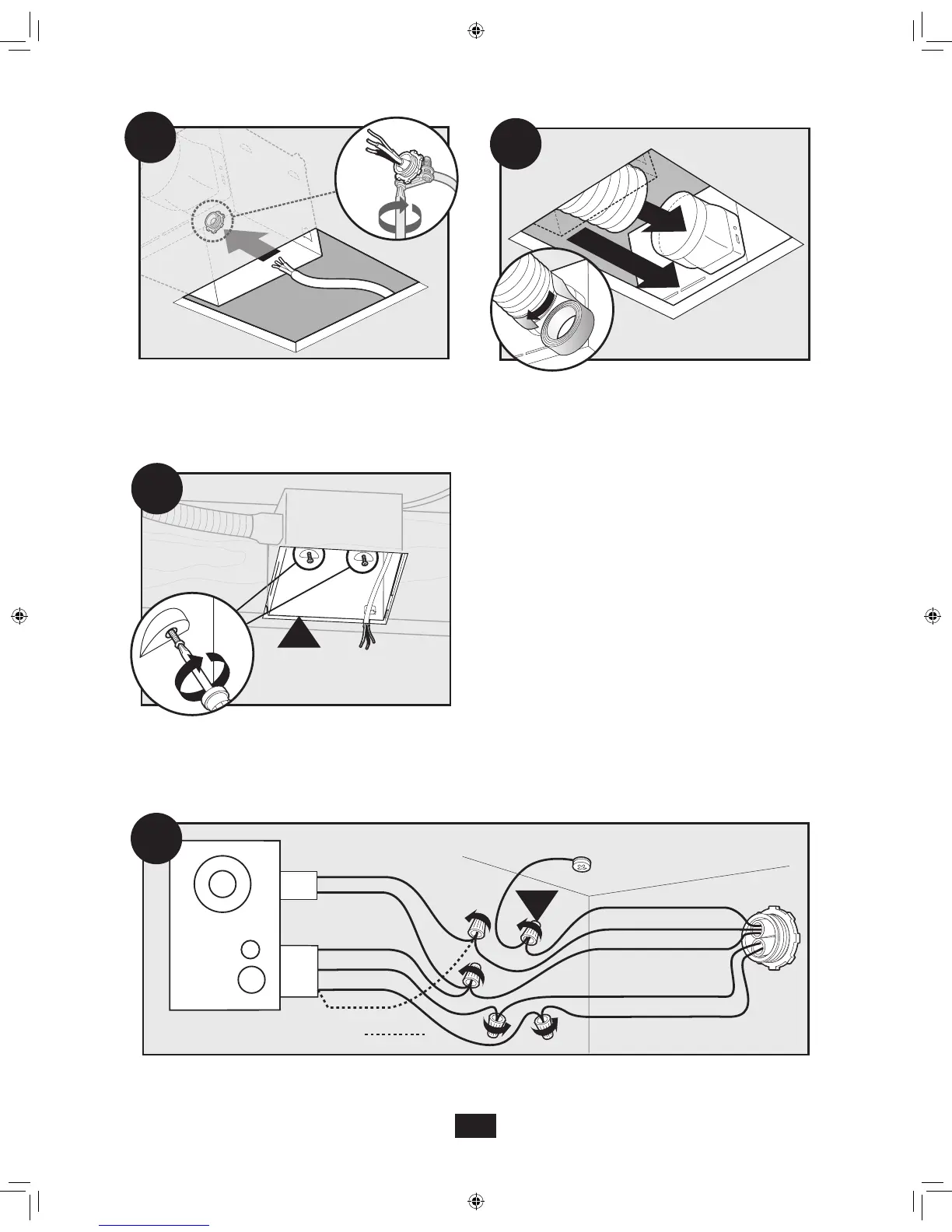

Connect wires as shown.
E
D15
Pull wires through strain relief.
Attach existing ducting to duct connector. Tape joints.
If ducting does not t securely,
an adapter may need to be purchased.
Screw pre-loaded screws into joist or framing.
