Step Title
5
42746-01 • 04/26/07 • Hunter® Fan Company

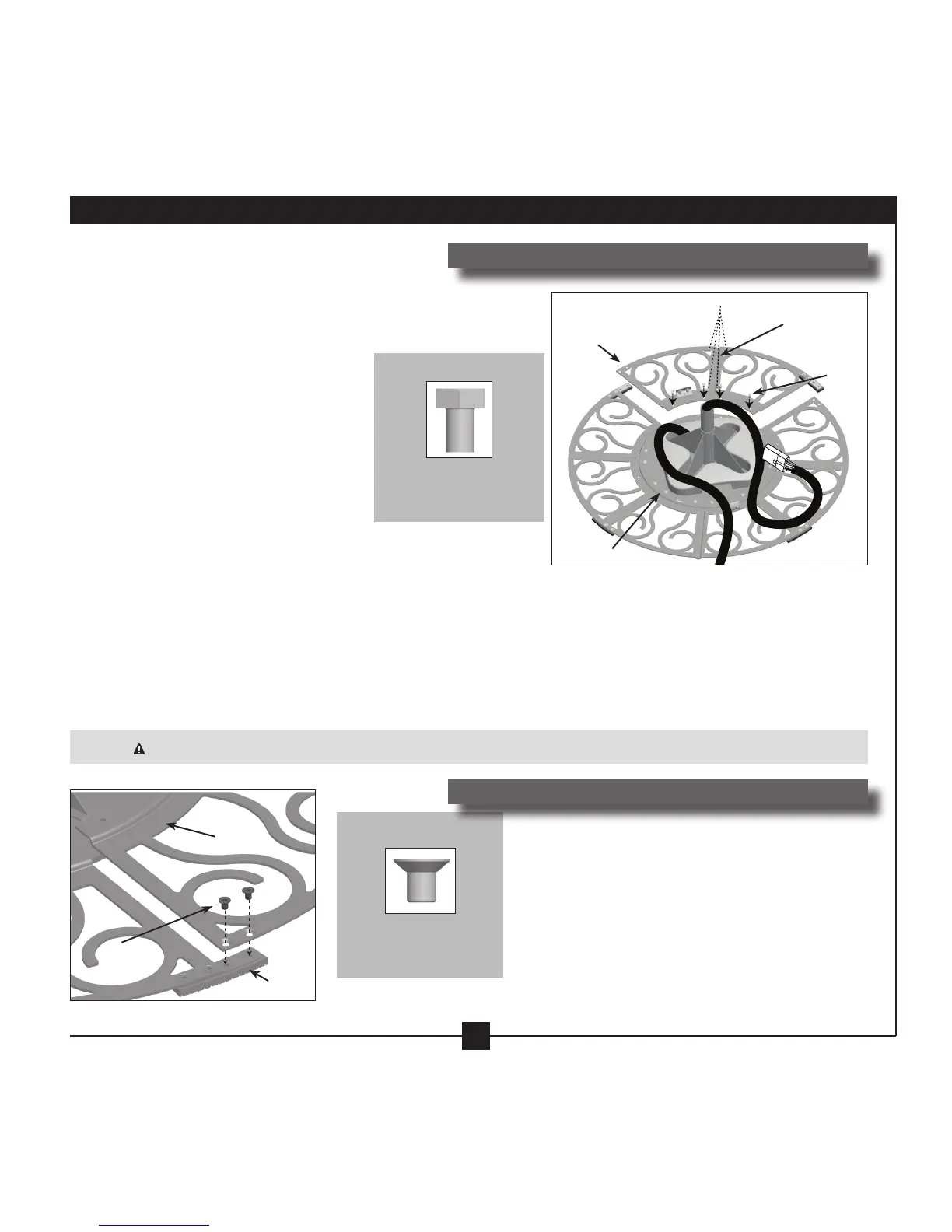

2 • Assembling the Skirt
Note: is fan should be assembled in an open,
level area with a solid ground surface large
enough for the assembled fan.
2-1. Locate the base stand and place it on the ground at the location
where the fan will be operated.
2-2. Identify the skirt section with the 4
small screw holes around the power
cord channel and a notch in the inner
edge. Align the four holes in the skirt
section with the holes in the base
stand where the power cord is located,
then align the notch in the skirt
section with the raised tab on the base
stand. Partially install four base bolts
to attach the skirt section to the base stand. To ensure proper
spacing, do not tighten the bolts until all have been partially
installed.
Note: e remaining three skirt sections are identical and may be
installed in any order.
2-3. Align the four holes in the next skirt section with four holes in the base
stand. Partially install four base bolts. Repeat for the remaining skirt
sections.
CAUTION: Do not attempt to assemble fan without all four skirt sections. e fan may fall if a skirt section is not installed.
Skirt
Section
Base Stand
Power Cord
Channel
Base
Bolt
4 Small Screw Holes
Base Bolt
64193-02-247
(x 16)
Hardware Needed:
Steps 2-1 - 2-3:
Skirt Bolt
Skirt
Section
Skirt Bolt
06548-01-247
(x 16)
Hardware Needed:
Step 2-4:
2-4. Align the holes in each skirt bracket with the
adjoining skirt section and partially install
two skirt bolts. Repeat for all skirt sections.
2-5. After all skirt sections are properly aligned,
securely tighten all skirt bolts and base bolts.
Skirt
Bracket
To Next Page
