Step Title
6
42746-01 • 04/26/07 • Hunter® Fan Company

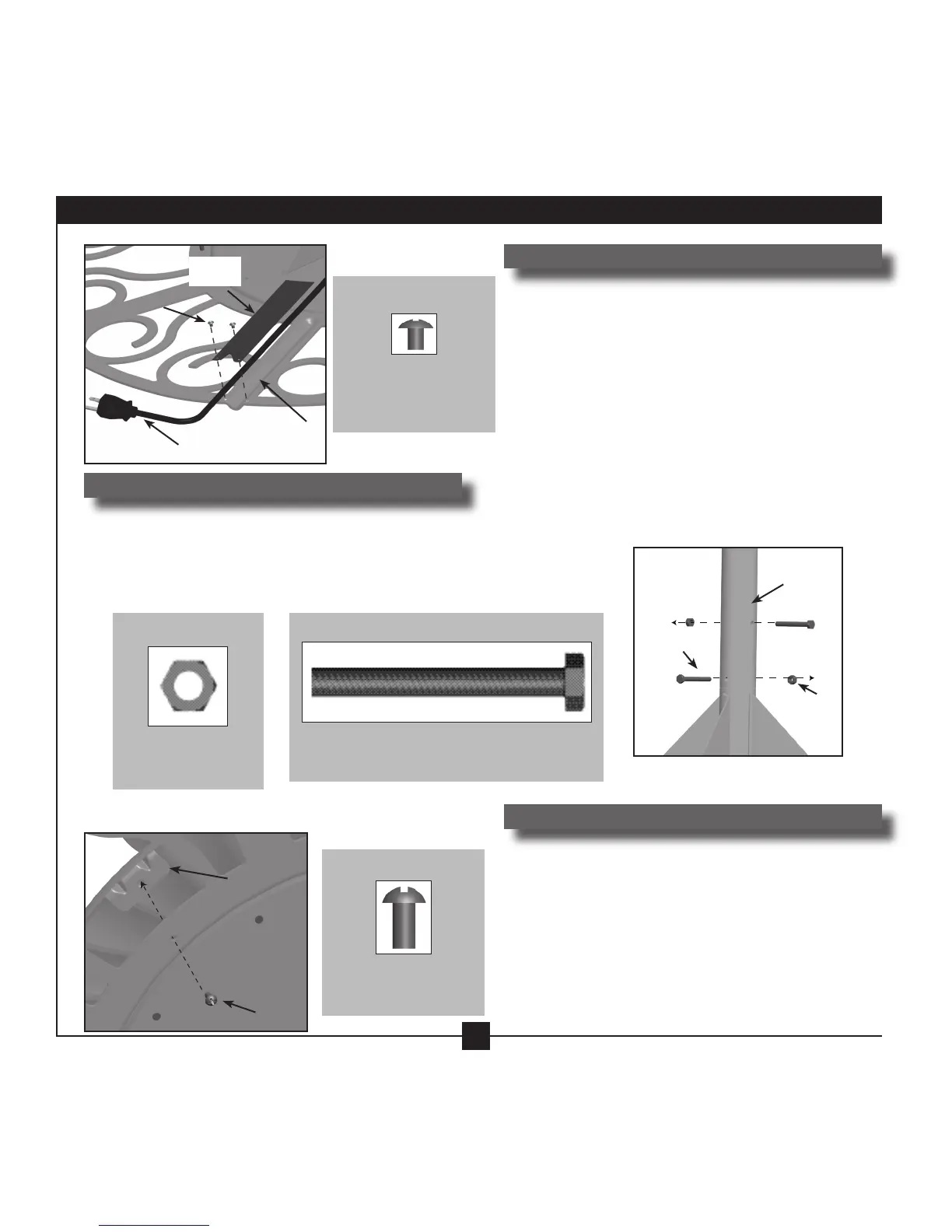

3 • Assembling the Base
3-1. Guide the power cord through the channel
and install the cover plate over the power cord
using four screws. Be sure the power cord is not
pinched between the channel and the cover plate.
You will need the assistance of at least one other
person to assemble the base and skirt sections.
Tab
Screw
Lower
Pole
Section
Lower
Pole
Bolt
Lower
Pole
Nut
Cover Plate
Screw
74506-59-247
(x 4)
Hardware Needed:
Hardware Needed:
Lower Pole Bolt
06551-10-247
(x 2)
Hardware Needed:
Lower Pole Nut
06552-02-247
(x 2)
3-2. read the power cord through the lower pole section
and slide the lower pole onto the base stand. Align the
holes in the lower pole segment with the holes in the
base stand and securely install two lower pole bolts
with nuts to stabilize.
3-3. Being careful to not damage the fan finish, slide the
base cover onto the lower pole and let it rest on the
base stand.
3-4. Holding both the base stand and base cover,
carefully tilt the base assembly and rest the
assembly on its side to access the bottom of the
base. Align the two tabs on the base cover with the
two holes in the base stand. Install two screws to
secure the base cover to the base stand.
Steps 3-3 - 3-4:
Tab Screw
74513-54-247
(x 2)
Hardware Needed:
Step 3-1:
Step 3-2:
Power
Cord
Cover
Plate
Screw
Channel
To Next Page
