Step Title
7
42746-01 • 04/26/07 • Hunter® Fan Company
Middle
Pole
Section
Power
Cord
Base
Cover
Spindle
Spindle
Cover
Base
Stand
Grommet

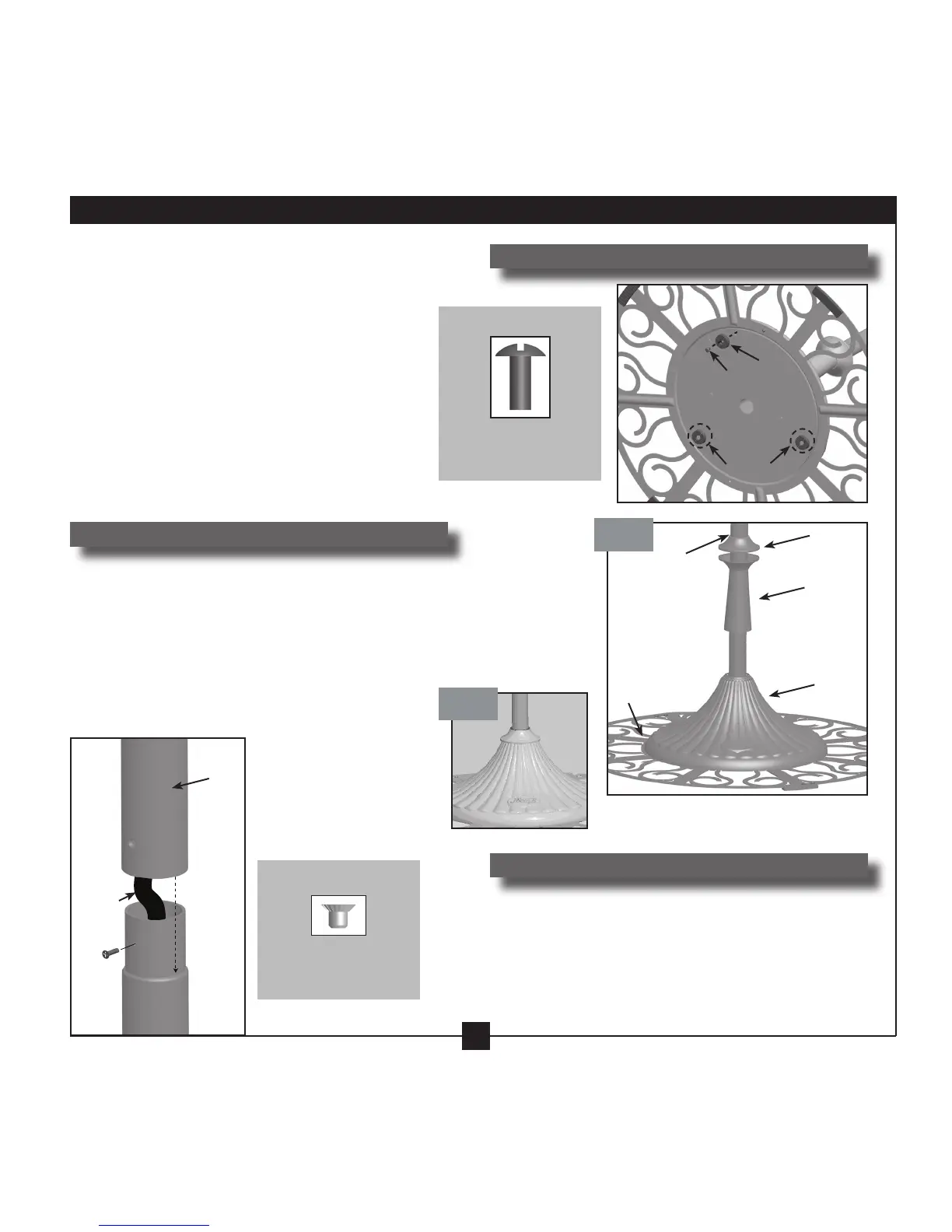

Step 3-7:
Pole Screw
06549-01-247
(x 3)
Hardware Needed:
3-6. Note: e spindle is optional. e fan can be installed with only the
spindle cover.
Holding the grommet in place, slide the spindle (optional) and
spindle cover onto the lower pole. Lower the spindle and spindle
cover to rest on the base cover.
Step 3-6:
3-7. read the power cord through the middle pole
section. Attach the middle pole section to the lower
pole section. Align the holes and securely install three
screws to stabilize.
3-5. With the assembly still on its side, install the
third foot into the base with the provided
screw. (e first two have been preinstalled.)
When the final foot has been installed, tilt the
assembly back to its upright position.
Step 3-5:
Foot Screw
74510-27-247
(x 1)
Hardware Needed:
Foot
Screw
Foot
Preinstalled feet
Without
Spindle
With
Spindle
3 • Assembling the Base
To Next Page
