Hunter H39 - Page 109

DC Electric Systems
7.11
MAP LIGHT FLUORESCENTS
RECESSED LIGHTS
SWIVEL LIGHTS DOME LIGHTS
FROM BATT.
PANEL BRKR.
EACH CIRCUIT IN PARALLEL, BLUE (LOAD TO BREAKER) AND YELLOW NEGATIVE TO NEGATIVE BUS BAR (SEE EX.)
BLUE
BLUE
FROM BATT.
OFF
NEGATIVE BUS BAR
YELLOW
YELLOW
BLUE
YELLOW
CABIN LIGHTS 1
EXAMPLE SWITCH PANEL WIRING (PARALLEL CIRCUITS)
YELLOW
BLUE/WHITE
LIGHT
POS./NEG.LEADS TO LIGHT
TO NEXT
LIGHT
EXAMPLE LIGHT WIRING (PARALLEL CIRCUIT)
LIGHT SWITCH
A TO ARCH LIGHT (PROVIDED WITH COCKPIT STEREO OPTION)
B HARNESS CONNECTORS
**
A
B

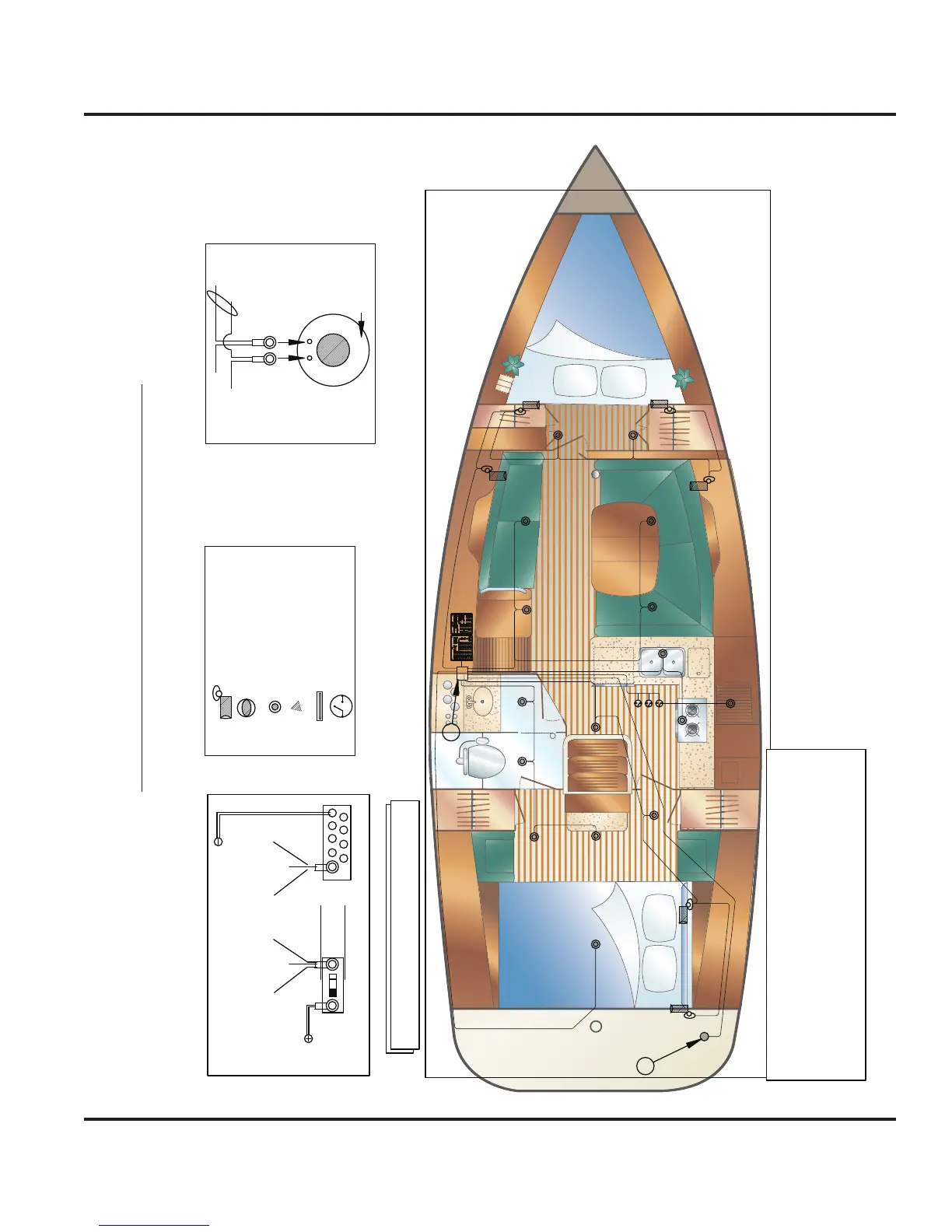

Interior 12 Volt DC Lighting Layout
