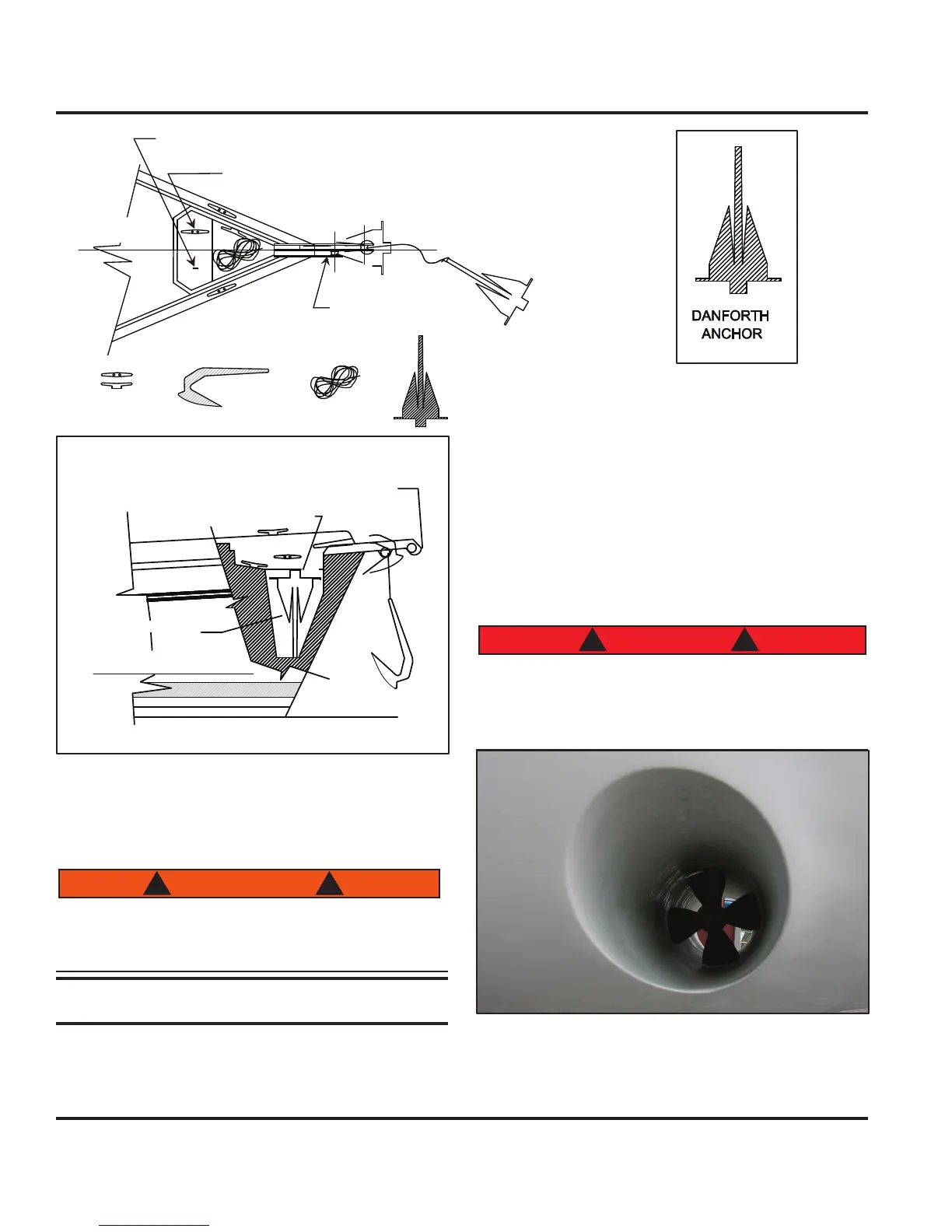

Fig 6.9 shows you a profile view of the anchoring, and
windlass system. This illustration shows the smaller and
the larger anchor well, in relation to the location.
W A R N I N G
! !
Anchoring in unusual water, and or weather condi-
tions will require additional precautions. Consult an
approved guide for suggestions.
6.5 Bow Thruster (Option)
Your Hunter boat is offered with a bow thruster option. If
installed the bow thruster will assist maneuvering in tight
spaces or marinas and with adverse wind directions. The
bow thruster is installed below your v-berth bunk into a
tunnel that is build into the hull structure under the water-
line. When operated it forces a jet of water from one side
of the bow to the other and consequently pushes the
bow towards the opposite direction of the jet. You should
familiarize yourself with the maneuvering and operation
of the bow thruster in open and still water before attempt-
ing to maneuver in tight spaces or marinas! The bow
thruster is powered by your on board DC system and it is
vital for this to be at full charge and capacity to assure full
functionality. Please refer to the supplied vendor specific
manual for safety tips and service requirements.
DA N G E R
! !
DANGER OF SERIOUS INJURY:
ROTATING PROPELLER – DO NOT SWIM IN THE
VICINITY OF THE BOW THRUSTER!
ELEVATION
WELL: SMALLER MODELS
WATERLINE
WELL: LARGER MODELS
STAINLESS BOW ROLLER
Fig. 6.8
Fig. 6.10
Fig. 6.9
PLAN
PLOW ANCHOR
DANFORTH
ANCHOR
ANCHOR RODE
(CHAIN OR ROPE OR COMBO)
TYPICAL CLEAT
LOCATIONS VARY
W/MODEL.
STAINLESS BOW ROLLER
(SIZE & SHAPE VARIES
BETWEEN MODELS)
NOTE: THE FORWARD "U" BOLT IN THE ANCHORWELL IS CONSIDERED THE
STRONG POINT. THAT SHOULD BE USED IF THE VESSEL IS TO BE TOWED
NOTE: ALWAYS SECURE ANCHOR RODE TO THE CLEAT OR
LASH ANCHOR SECURE TO BOW ROLLER IN ADDITION TO
THE QUICK PIN.
