Hunter H39 - Page 184

Sails and Rigging
12.18
BOOM
HARKEN
U.S.A.
TO COCKPIT
1. BOOM VANG BALE
2. UPPER VANG BLOCK
3. VANG LINE
4. LOWER VANG BLOCK
5. VANG TOGGLE
4 UPPER VANG BLOCK, SCHAEFFER 03-13
6 LOWER VANG BLOCK
5 VANG LINE 5/16" X 45" (7.9mm x 13.7m)
7 VANG TOGGLE
3 VANG CABLE
1 BOOM VANG BALE
2 VANG
5
3
2
4
7
6
BOOM
1
MAST
MAST
NOTE: THE RIGID VANG IS OFFERED AS AN OPTION ON
STANDARD MASTS
TO COCKPIT
HARKEN
U.S.A.
2
1
3
5
4

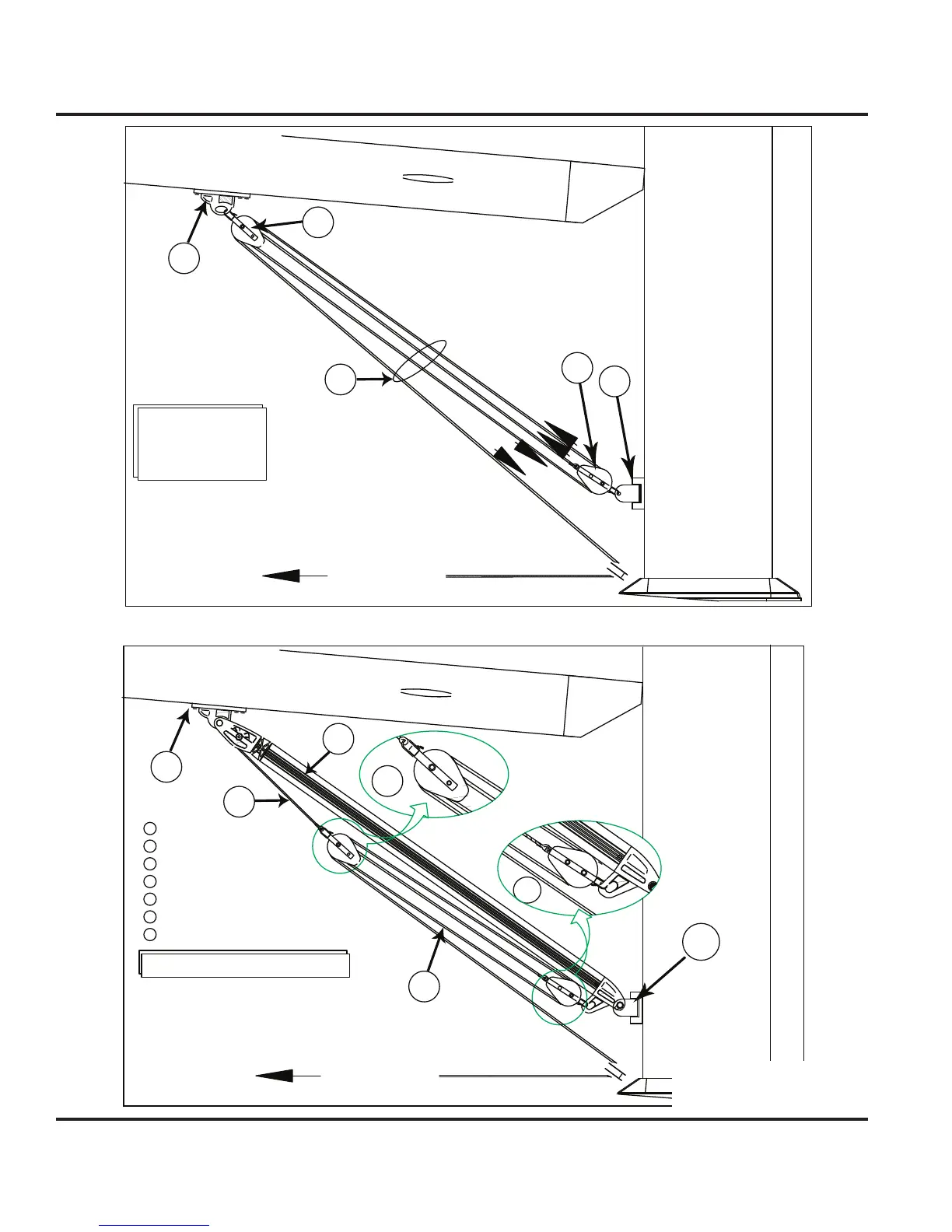

Figure 12.15 Boom
Vang Details
