Hunter Original - Hanging the Fan

4
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Operation Troubleshooting
Check the outlet box:
Installing the Ceiling Hardware

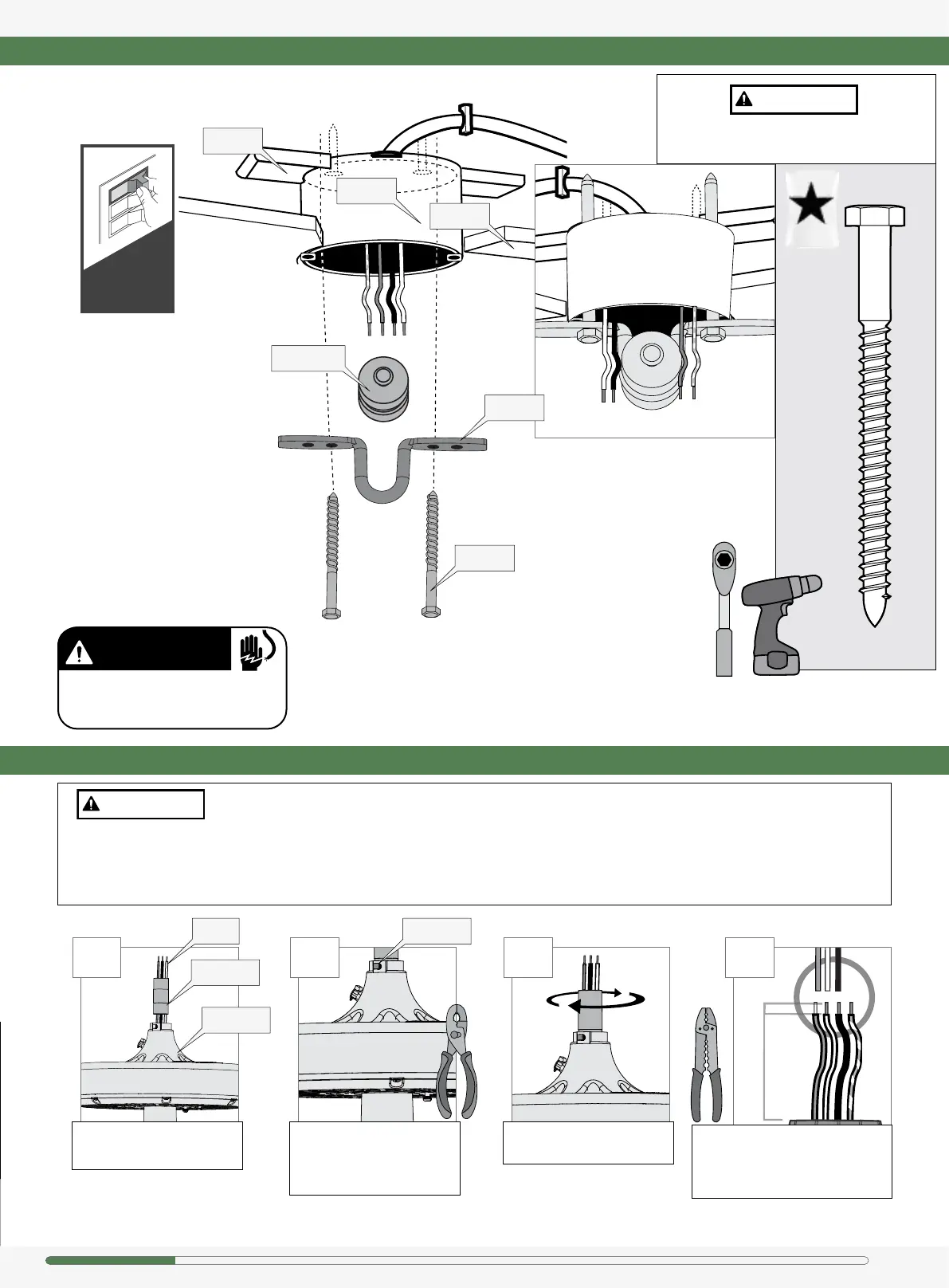

Hanging the Fan
Drill two (2) 11/64” diameter
holes 2-9/16” apart through the
back of the outlet box into the
cross brace 2” deep. These holes
are for the U-bracket bolts. Install
rubber bushing and pin into the
U-bracket. Use a 11 mm wrench
to install the (2) 3 1/2” lag bolts,
found in the hardware bag, to
secure the U-bracket to the joist
OFF
Turn Power

Installed View
Exploded View
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
Excess wiring can be cut, but leave at
least 8” extending from the top of the
hanger pipe. NOTE: Some of the pipe
threads may still be visible
Feed the wires from the top of the
fan motor through the hanger pipe
Loosen the motor housing set
screw (do not completely remove
from the fan) in the neck of the fan
motor housing.
Screw the pipe into the fan until
tight (at least 4-1/2 turns)
1 2 3 4
STEP STEP STEP STEP
Remove any existing bracket prior to installation. Only use the provided Hunter
ceiling bracket that came in your fan’s box.
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.

x2
3-1/2” Lag Bolt
IMPORTANT
DO NOT USE LUBRICANT ON SCREWS
IMPORTANT
TO SECURELY HANG THE FAN, CAREFULLY FOLLOW THE STEPS ON PAGES 7 AND 8. BE SURE TO TIGHTEN THE HANGER PIPE INTO
THE FAN AND THE HANGER BRACKET ONTO THE PIPE. TIGHTEN THE 2 SET SCREWS, AS DESCRIBED IN STEP 7, TO PREVENT THE
FAN FROM FALLING. YOUR FAN MAY WEIGH UP TO 50 LBS. ALL OF THE FOLLOWING STEPS MUST BE FOLLOWED IN ORDER TO
ENSURE A SECURE MOUNTING.
Cross Brace
Outlet Box
Rubber Bushing
and Pin
Ceiling
U-Bracket
Lag Bolt
Motor Housing
Motor Housing
Set Screw
Wires
Hanger Pipe
