Wiring the Fan
We know wiring is hard. Let’s make it easier.
You are going to need these:
4 Wire Nuts (these are in the bag)
Follow these steps to get your fan wired quickly and safely. Follow the route below that best matches
your wall switch setup. If you are unfamiliar with wiring or uncomfortable doing it yourself, please

in accordance with national and local electrical codes.
Have a single switch?
Follow these steps:
Have dual switches?
Follow these steps:
Hunter Pro Tip:

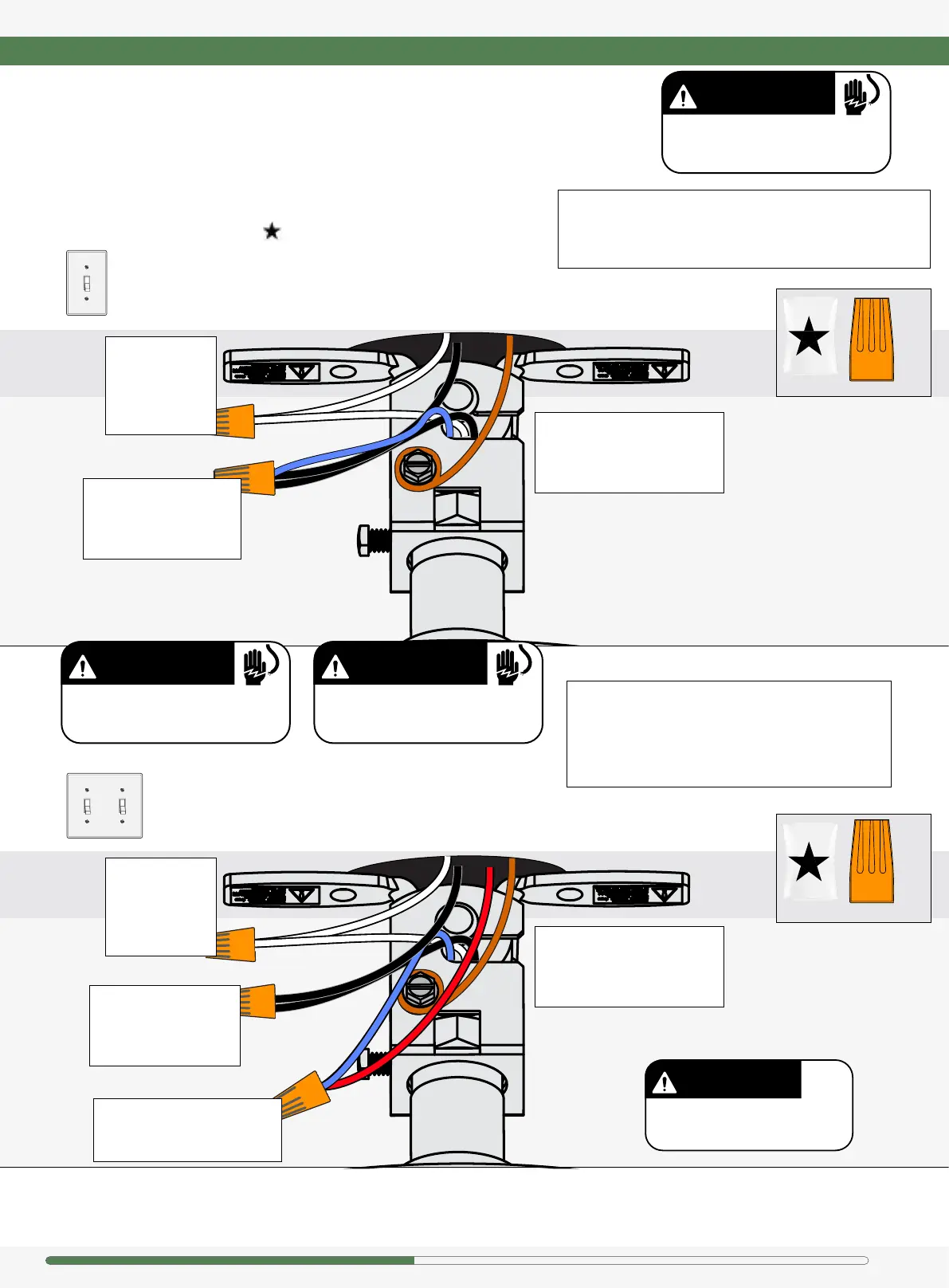

Here is how to connect the wires:
Push the bare metal ends of the wires together and slide a wire nut over
them. Then, twist the wire nut clockwise until tight. Give it a gentle
pull to make sure none of the wires are loose.
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Connect the white
(grounded) wire
from the ceiling
to the white wire
from the fan.
Connect the second ungrounded
(light) wire from the ceiling to the
blue wire from the fan.
Connect the bare or green ground
wire (grounding) from the ceiling
to the side of the hanger bracket
assembly.
Connect the bare or green ground
wire (grounding) from the ceiling
to the side of the hanger bracket
assembly.
Connect the black
(ungrounded) wire from
the ceiling to the black
wire from the fan.
Blue
Black
White
White
Ungrounded
UngroundedUngrounded
Ungrounded
(light)
Grounded
Grounded
Grounding
x3

x3

Wire Nut
Wire Nut
Connect the black wire
(ungrounded) from the
ceiling to the black and the
blue wires from the fan.
Black
Blue
WARNING
All wiring must be in accordance with national
and local electrical codes ANSI/NFPA 70. If you
are unfamiliar with wiring or in doubt, consult
a qualied electrician.
WARNING
The ceiling fan must be grounded. If the
ground wire for the installation site is not
present, immediately STOP installation and
consult a qualied electrician.
Have extra wiring?
Turn the wires upward and push them carefully back through the
hanger bracket into the outlet box. Spread the wires apart, with the
grounded wires on one side of the outlet box and the ungrounded
wires on the other side of the outlet box. Make sure that the wires
are still attached to the wire nuts.
Hunter Pro Tip:
WARNING
NO BARE WIRES OR WIRE
STRANDS SHOULD BE VISIBLE
AFTER MAKING CONNECTIONS.
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Grounding
