Hunter PGP Series User Manual

11
®
10
PGP
®
Rotor

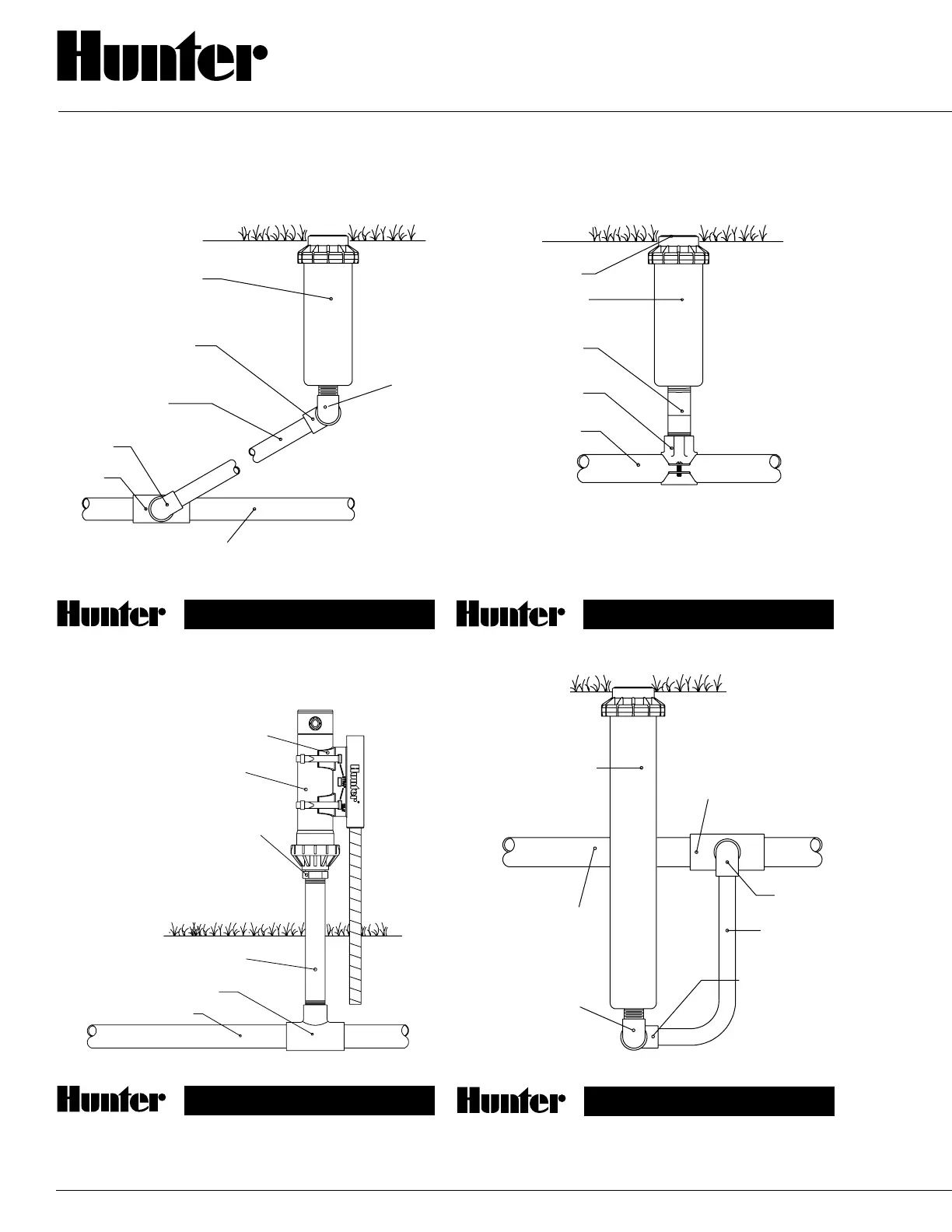

INSTALLATION DETAILS
PGP
®
PGS-ADV (or I-10 Shrub)
PGH
FINISH GRADE
MODEL PGH
GEARED ROTOR
TEE
LATERAL LIN
E
POLY PIPE
LENGTH AS REQUIRED
POLY ELL
POLY ELL
STREET ELL
®
PGP
®
POLY LATERAL LINE
SADDLE
(LENGTH AS REQUIRED)
FINISH GRADE
RUBBER COVER
MODEL PGP
GEARED ROTOR
3/4" SCH 80 RISER
®
FINISH GRADE
MODEL PGS
GEARED SHRUB ROTOR
HYDRAULICALLY COMPATIBLE WITH
NOTE : NOZZLE MUST BE
RISER SIZE
(USE WITH 1/2" THD RISER ONLY)
1/2" X 3/4" THD REDUCER BUSHING
1/2" OR 3/4" PVC RISER
(LENGTH AS REQUIRED)
TEE
LATERAL LINE
STAKING KIT
MODEL PGP
(LENGTH AS REQUIRED)
FINISH GRADE
GEARED ROTOR
POLY PIPE
POLY ELL
LATERAL LINE
STREET ELL
POLY ELL
TEE
®
®

Hunter PGP Series Specifications

General

Warranty	5 years
Color	Black
Arc Adjustment	40 to 360 degrees
Pop-up Height	4"
Nozzle Trajectory	25 degrees
Inlet Size	3/4 inch
Spray Pattern	Adjustable Arc, Full Circle
