PGP
®
Rotor
Shrub Staking Kit
Secure installation of
shrub rotors on slopes or
in shrub areas
The Hunter Shrub Stak-
ing Kit allows contractors
to install the PGS and I-10
rotors quickly and easily on
slopes and in shrub beds.

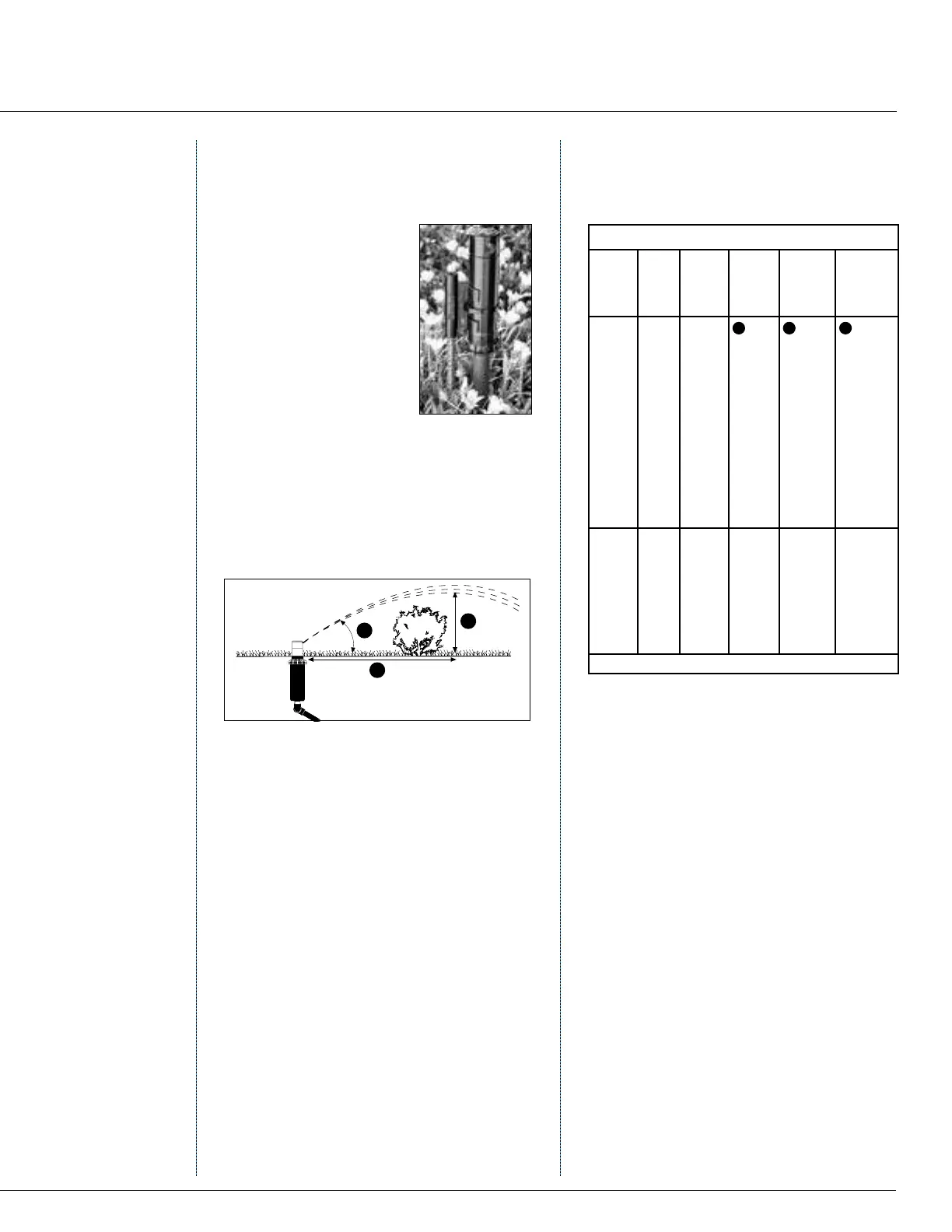

Nozzle Trajectory
This rotor nozzle trajectory chart is designed
to help determine how close a sprinkler can be
placed to an object such as a fence or hedge
without obstructing the spray pattern. All
information shown is at optimum operating
pressures.
A
B
C
Hunter Nozzle Height and Trajectory Chart
Sprinkler
Model
Nozzle
No.
Pressure
in PSI
Degrees
of Trajec-
tory
Max Height
of Spray
(ft.)
Distance
from head
(ft.) to Max.
Height
PGP
1
2
3
4
5
6
7
8
9
10
11
12
50
50
50
50
50
50
50
50
50
60
60
60
25
25
25
25
25
25
25
25
25
25
25
25
7'
7'
8'
8'
9'
10'
11'
11'
12'
13'
13'
13'
22'
22'
23'
23'
26'
28'
30'
30'
32'
32'
38'
40'
PGP
Low
Angle
4
5
6
7
8
9
10
50
50
50
50
50
50
60
13
13
13
13
13
13
13
5'
4'
4'
4'
5'
5'
6'
22'
22'
22'
22'
24'
26'
30'
Note:All performance data is derived from testing at 4" above nished grade.
A
B
C
