8
MOUNTING THE RECEIVER

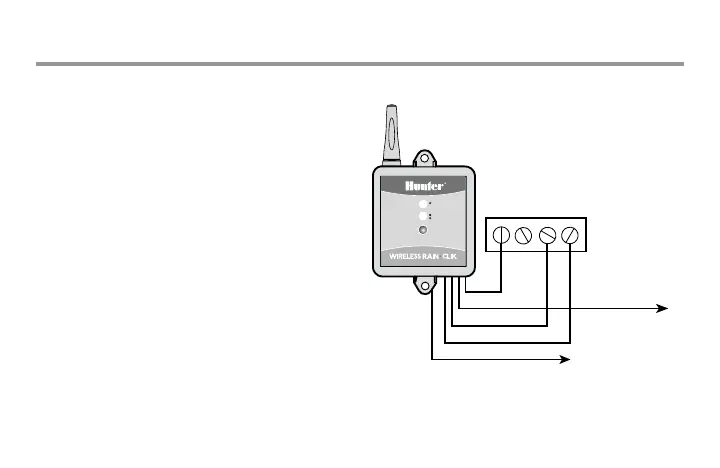

Wiring the Receiver to Other Controllers:
Normally Closed Sensor Applications
1. Attach the two yellow wires to the 24
VAC terminals.
2. Attach the blue and white wire to the sensor
terminals (if available) or in-line with the valve
common wire.
P MV C AC AC
W
B
Y
Y
O
Common Wire
to all Valves
Used for normally
open sensor
applications
SENSOR STATUS
SENSOR BYPASS
Press to bypass, press
again to re-enable
GREEN = Sensor is dry
RED = Sensor is wet
Red light indicates
sensor is bypassed
RAIN SENSOR BYPASS
