Hunter Sentinel User Manual

7
8
1886
1886
Installing the Bulbs and Glass
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Bulbs/Glass Remote CradleRemote
Install bulbs into the sockets.
When necessary, replace
with bulbs of same wattage.
Lift the globe and align the
notches in the globe with
the tabs in the light kit.
NOTE: Check to ensure
proper engagement.
Attach the globe by lifting and
turning clockwise one third of a
full turn of the glass until it stops.

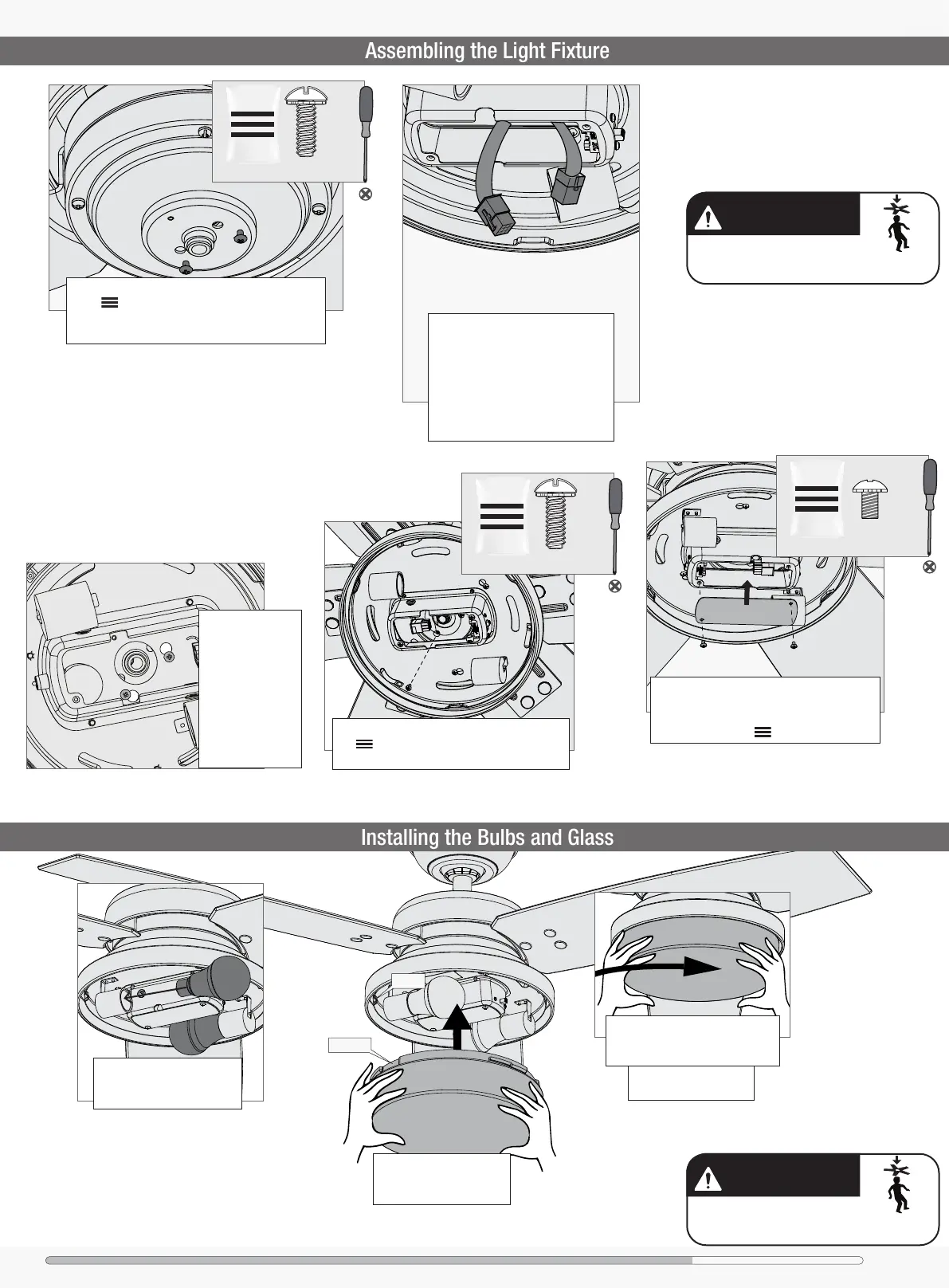

Assembling the Light Fixture
Notch
Tab
Align the keyhole
slots in the top
of the light kit
assembly with the
partially installed
assembly screws.
Wrap the keyhole
slots around the
screws and twist
counterclockwise.
Partially install two light kit assembly screws, found
in the hardware bag, halfway into the motor
housing as shown. It does not matter which two
screw holes you choose.
WARNING
FAN FALL HAZARD
Make sure all three screws are tight to secure
the trim ring to the mounting plate.
WARNING
GLASS FALL HAZARD
To prevent SERIOUS INJURY or DEATH, make
sure that glass is properly secured.
Carefully push all switch housing components
into the switch housing, then install the switch
housing plate using two light kit assembly
screws, found in the hardware bag.
2 of 2
Short Light Kit
Screw
bag
2 of 3
Light Kit Screw
bag
Feed the 9-pin plug connector
coming from the bottom of the motor
housing through the center hole in
the light kit assembly. Connect it
to the plug connector found in the
switch housing area of the light kit
assembly. Make sure to line up the
colored markings on the connectors.
1 of 3
Light Kit Screw
bag
Insert a third light kit assembly screw, found in
the hardware bag, into place and tighten all
three screws securely.

Hunter Sentinel Specifications

General

Blade Span	52 inches
Number of Blades	5
Control Type	Pull Chain
Mounting Type	Ceiling
Mounting Options	Standard
Material	Wood
Color	Brushed Nickel
Warranty	Lifetime
