41865-01 01/15/2007 © 2007 Hunter Fan Company
2
If you need help installing the fan, your Hunter fan dealer can direct
you to a licensed installer or electrician.
gathering the tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver
• Phillips-head screwdriver
• Wrench or pliers
considering optional accessories
Consider using Hunter’s optional accessories, including a wall-
mounted or remote speed control. To install and use the accessories,
follow the instructions included with each product. For quiet and
optimum performance of your Hunter fan, use only Hunter speed
controls.
checking your fan parts
Carefully unpack your fan to avoid damage to the fan parts. Check
for any shipping damage to the motor or fan blades. If one of the
fan blades was damaged in shipment, return all the blades for
replacement.
NOTE: If you are installing more than one fan, keep the fan blades
in sets, as they were shipped.
If any parts are missing or damaged, contact your Hunter dealer or
call Hunter Parts Department at 888-830-1326.
understanding Installer’s Choice®
is patented 3-position mounting system provides you maximum
installation flexibility and ease. You can install your Hunter fan in
one of three ways. e steps in this manual include specific instruc-
tions for the fan mounting method of your choice. For a ceiling 8
feet or higher, standard mounting is recommended.

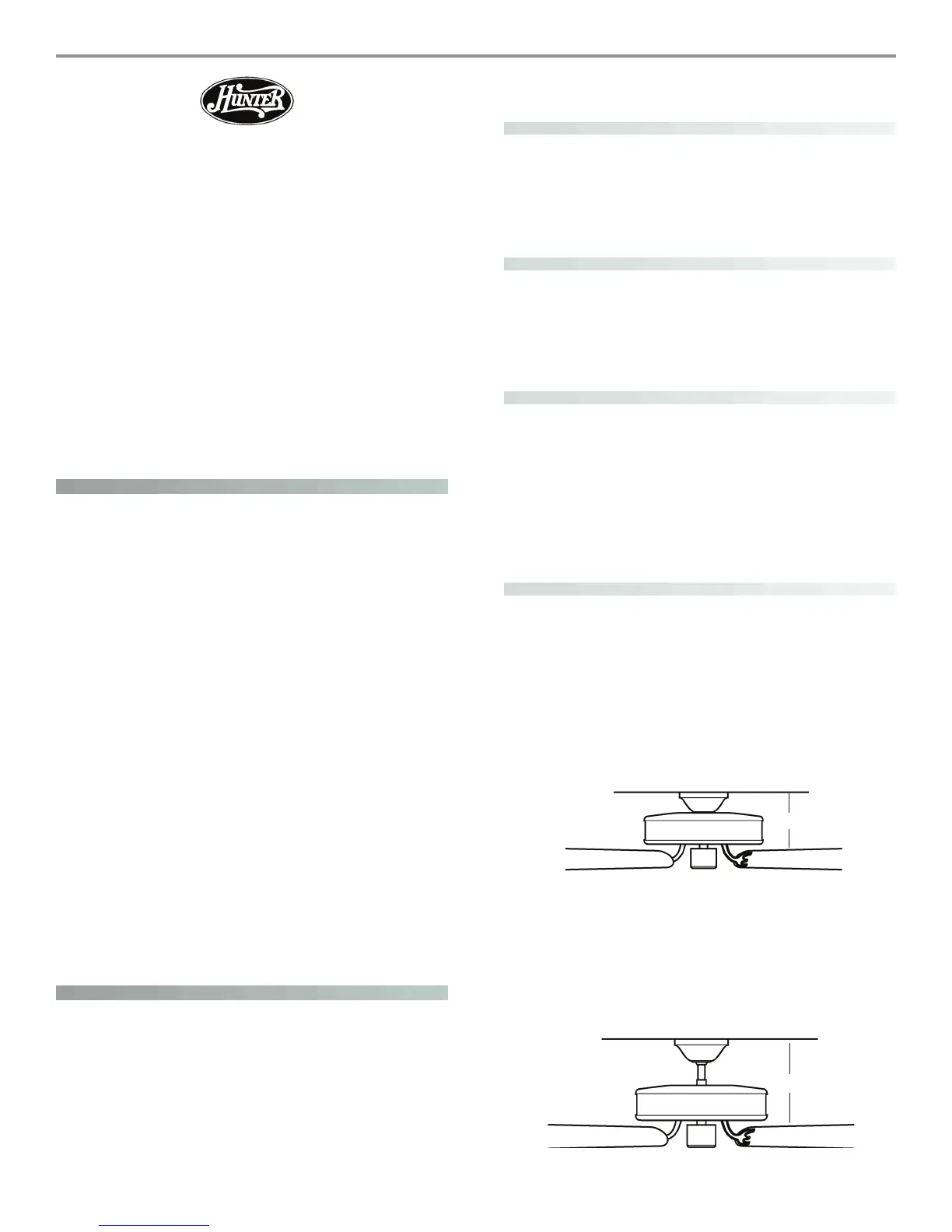

Flush Mounting (Figure 1) fits close to the ceiling, for low ceilings
less than 8 feet high.
Figure 1 - Flush mounting
Standard Mounting (Figure 2) hangs from the ceiling by a downrod
(included), for ceilings 8 feet or higher. For ceilings higher than 8
feet, you can purchase Hunter extension downrods. All Hunter
fans use sturdy 3/4” diameter pipe to assure stability and wobble-
free performance.
Figure 2 - Standard mounting
Your new Hunter® ceiling fan is an addition to your home or office
that will provide comfort and performance for many years. is
installation and operation manual gives you complete instructions
for installing and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, record the following information for your
records and warranty assistance. Please refer to the carton and the
Hunter nameplate label (located on the top of the fan motor hous-
ing) for the proper information.
Model Name: __________________________
Catalog/Model No.: ______________
Serial No.: _____________________
Date Purchased: ___ / ___ / ______
Where Purchased: _______________________________
Please also attach your receipt or a copy of your receipt for refer-
ence.
cautions and warnings
• Read entire booklet carefully before beginning instal-
lation.
• Save these instructions.
• To reduce the risk of personal injury, attach the fan
directly to the support structure of the building
according to these instructions, and use only the
hardware supplied.
• To avoid possible electrical shock, before installing
your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall
switch location. If you cannot lock the circuit break-
ers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and
local electrical codes and ANSI/NFPA 70. If you are
unfamiliar with wiring, you should use a qualified
electrician.
• To reduce the risk of personal injury, do not bend the
blade attachment system when installing, balancing,
or cleaning the fan. Never insert foreign objects be-
tween rotating fan blades.
• To reduce the risk of fire, electrical shock, or motor
damage, do not use a solid-state speed control with
this fan. Use only Hunter speed controls.
getting ready
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceil-
ing.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
10”
12”
