Hunter Sona - Installation: Existing Construction (Above) - Wiring and Motor; Strain Relief Screw Tightening; Wiring Diagram and Connections; Wiring Cover Plate and Harness Connection

41951-01 12/01/2013
13
C21
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
Red
Red
White
Black
Black
White
White
Bare Copper
Ground
C22
Night Light
Night Light
Switch 1 (AC In)
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option

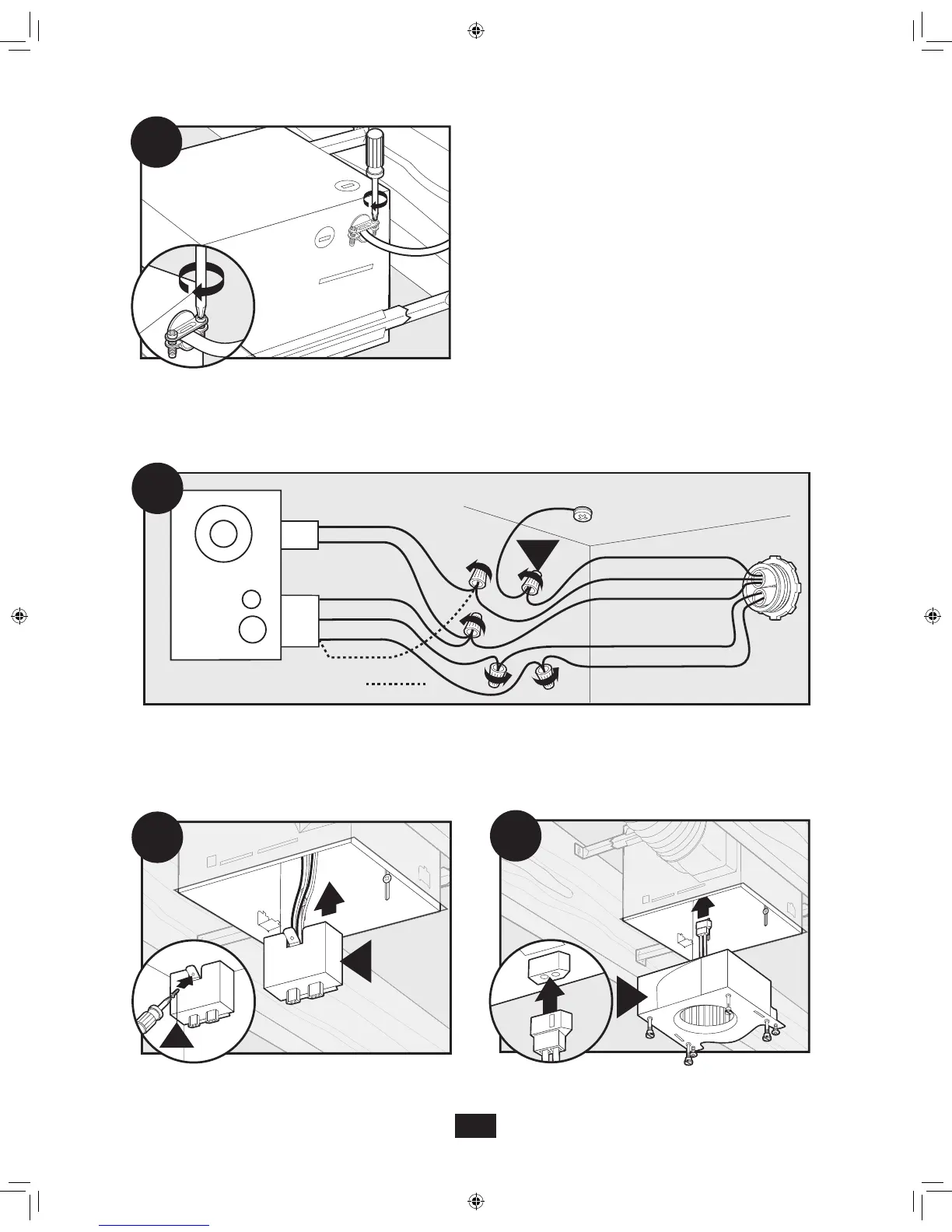

Tighten the strain relief screws.
Connect wires as shown.
C24
I
H
C23
G
Install the wiring cover plate. Make sure all wiring
connections are inside the box or under the
wiring cover plate.
Connect wiring harness. DO NOT ALLOW THE MOTOR TO
HANG FROM THE WIRING HARNESS.
