Hunter SRC Plus 900i User Manual

8

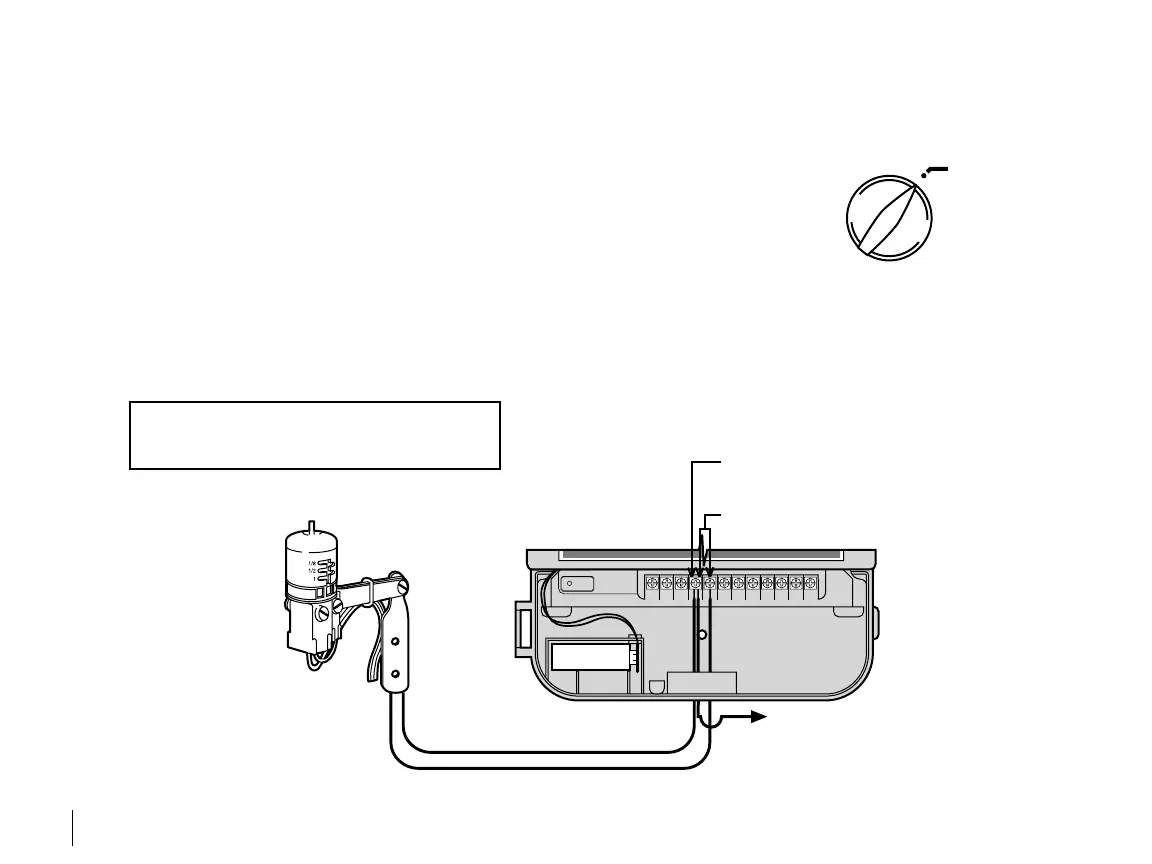

AC AC R RS C MV 1 2 3 4 5 6
9 V Battery
Sensor Wire to Common
Valve Common to RS
Hunter Weather Sensor
Connect Common to
this Terminal when
using Rain Sensor
Connect Rain Sensor Wires
to These Two Terminals
Sensor Wire to Weather Sensor
RESET
CONNECTING A WEATHER SENSOR ...................................................................................
A Hunter Mini-Clik
®
rain sensor can be connected to the SRC Plus.
The purpose of this sensor is to stop watering when precipitation is
sufficient. The sensor connects directly to the controller and allows
you to easily override the sensor by using the RUN (BYPASS SENSOR)
position on the dial.
1. Route the wires from the rain sensor up through the same opening
used for valve wiring.
2. Connect one rain sensor wire to the RS terminal and the other to the
C terminal.
3. Connect the valve common from the field to the RS terminal.
Note: If a pump relay is being used, the pump relay common must
also be connected to the RS terminal.
Weather Sensor Bypass
With this built-in feature, there is
no need for an additional manual
bypass switch when using rain
sensors The SRC Plus works with
the Hunter Mini-Clik
®
, Rain-Clik
™,
Freeze-Clik
®
plus some other rain,
wind or freeze sensors on the market today. If the sensor is preventing
system operation, just turn the dial to RUN (BYPASS SENSOR) and the
weather sensor will be overridden.
A weather sensor shuts off your system during rainy
weather – saving water. Ask your installer for more
information on this device.
RUN (BYPASS SENSOR)
