ON
Turn Power
Install a bulb into each
of the sockets. When
necessary, replace with
bulbs of same wattage.
Repeat x2
Fan style may vary.
Note:

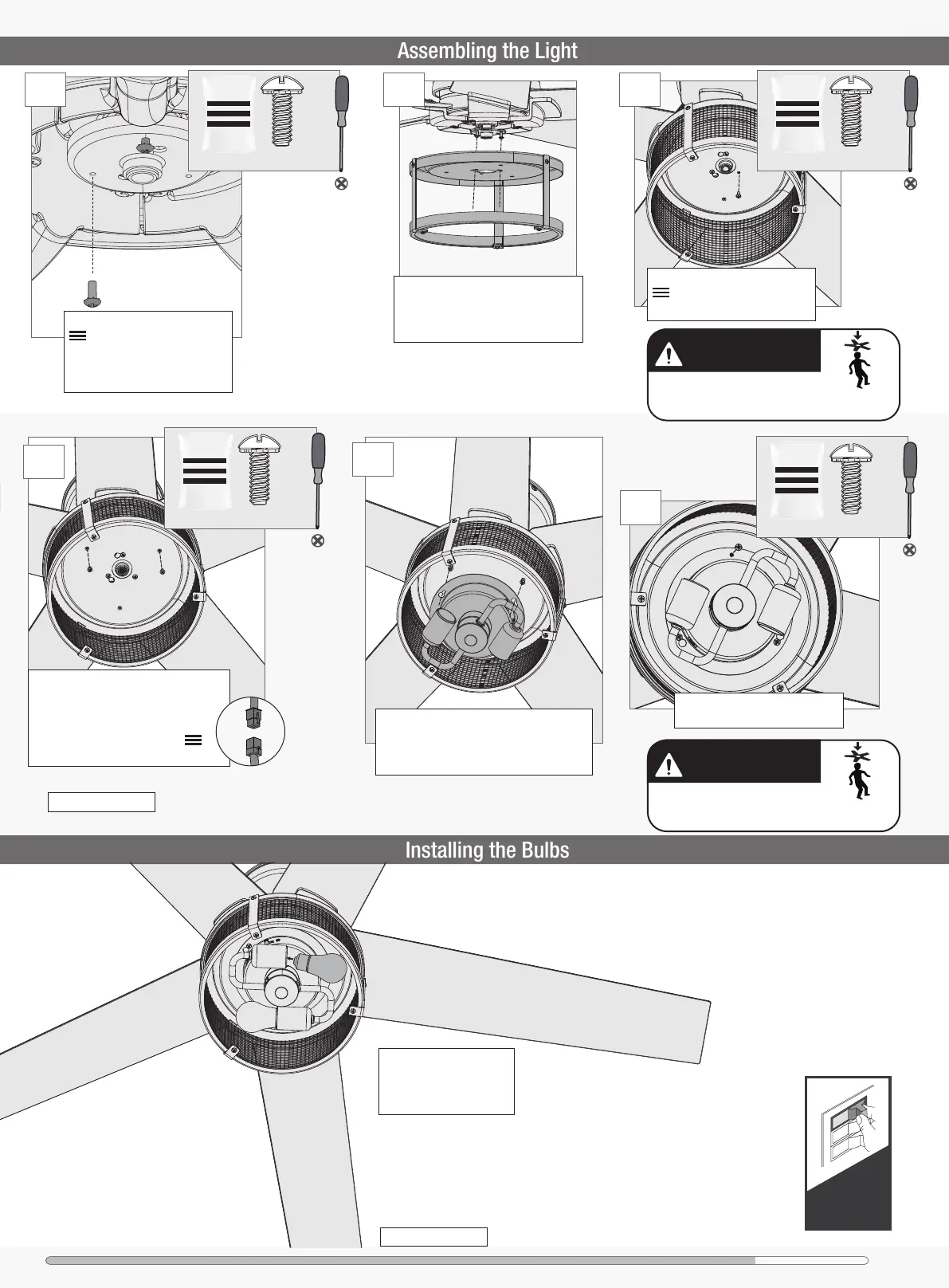

Screw light kit screws from the
hardware bag halfway into
the motor housing. It does not
matter which two screw holes
you choose.
Connect the plugs from the upper and
lower switch housings. Make sure
to line up the colored markings on
the connectors.Partially install two of
the light kit screws found in the
hardware bag.
Align the notches in the sides of the lower
switch housing with the screws on the
upper switch housing. Twist the lower
switch housing clockwise to lock into place.
Install the last light kit screw.
Tighten all three screws securely.
Feed the wire plug through the center
hole of the upper switch housing,
then wrap keyhole slots around the
screws and twist counterclockwise.
Insert a third screw, found in the
hardware bag, into place and
then tighten all three screws.
1 of 6
1 of 6
2 of 6
Light Kit Screw
Light Kit Screw
Light Kit Screw
bag
bag
bag
2 of 6
Light Kit Screw
bag
1
STEP
4
STEP
5
STEP
6
STEP
2
STEP
3
STEP
FAN FALL HAZARD
Make sure all three screws are tight to secure
the upper switch housing to the mounting plate.
FAN FALL HAZARD
Make sure all three screws are tight to secure the
lower switch housing to the upper switch housing
Fan style may vary.
Note:
To Next Page
