TC39 Series Changer Operation Instructions Getting Started •
••
• 5
Specific Precautions/Power Source

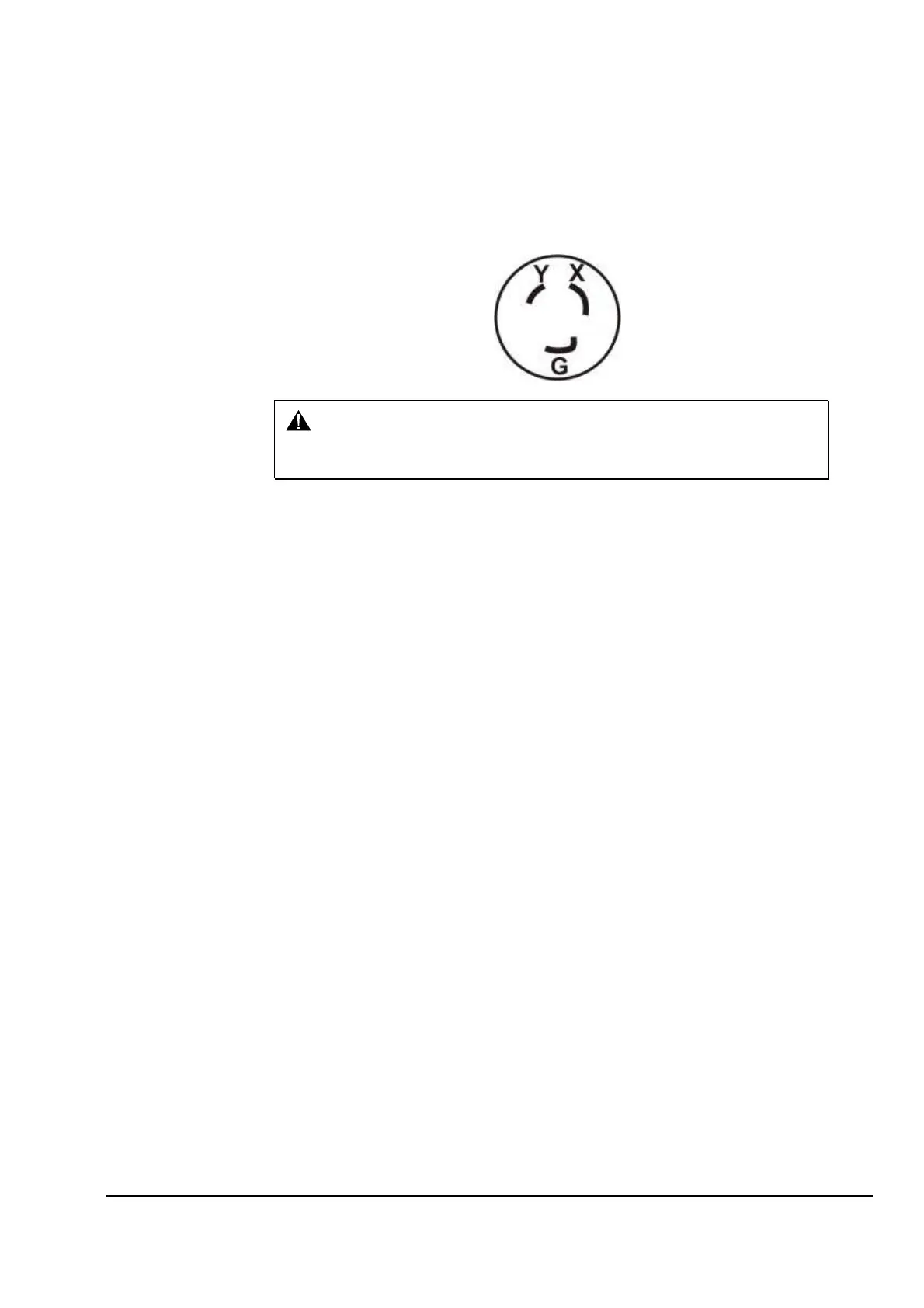

The TC is intended to operate from a power source that will apply 208-230VAC, 1
phase, 15 amp 50/60 Hz, power cable includes NEMA 20 amp plug, L6-20P, between
the supply conductors of the power cord. The power cord supplied utilizes a twist lock
connector, NEMA L6-20P. This machine must be connected to a 20 amp branch
circuit. Please refer all power source issues to a certified electrician. Refer to
“Installation Instructions for TC Tire Changer.
CAUTION: A protective ground connection, through the grounding
conductor in the power cord, is essential for safe operation.
Use only a power cord that is in good condition.
Equipment Installation and Service
A factory-authorized representative should perform installation.
This equipment contains no user serviceable parts. All repairs must be referred to a
qualified Hunter Service Representative.
Equipment Specifications
Electrical
Voltage:
208-230VAC, 1 phase, 50/60 Hz, power cable includes
NEMA 20 amp plug, L6-20P
Amperage: 15 amperes
Wattage: 3450 watts (peak)
Air
Air Pressure Requirements: 115-175 PSI (7.9-12.0 bar)
Approximate Air Consumption: 4 CFM (110 Liters/Minute)
Mechanical
Clamping System Rotating
Speed:
CW – variable up to 14 rpm
CCW – 7rpm
Torque: 867 ft-lbs
Max. Tire Diameter: 46 in.
Max Bead Roller Opening Width: 15 in.
Diameter Range: 10-26 in.
Bead Roller Power; Each Roller: 2645 lbs.
