UltraScan VIS Supplemental Manual for EasyMatch QC ver2.0
10

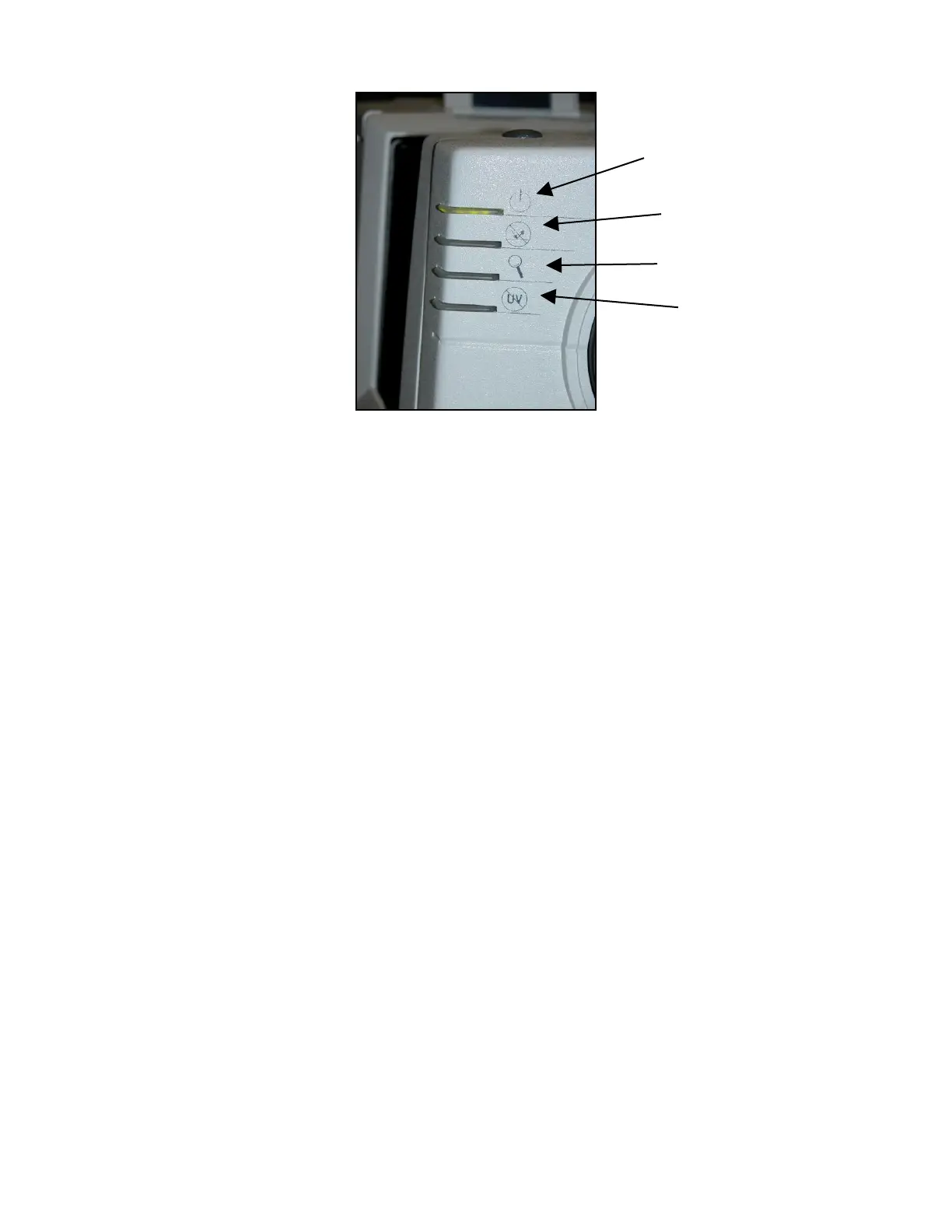

Figure 8. Indicator Lights
Macro Button
The macro button, also known as the “Sensor button,” activates a sample measurement.
UltraScan VIS Accessories
The following accessories are provided in the standards case:
• White calibrated tile - placed at the reflectance port (with pegs in the guidance holes)
during standardization. This tile is traceable to National Institute of Standards & Technology
(NIST).
• Light trap - placed at the reflectance port (with pegs in the guidance holes) during
standardization in reflectance modes.
• Black card device - placed in the transmittance compartment during standardization in
transmittance modes.
• Green tile - placed at the reflectance port (with pegs in the guidance holes) to check
instrument performance.
• Didymium filter - screwed into the lens as a check for wavelength accuracy.
• Tile data sheet - gives calibration information for the standard tiles.
• Non-slip pad for sample clamp - can be placed into the sample clamp as a replacement for
the white disk for applications that require a non-slip or black backing.
• Standards care card - gives instructions on how to clean the standards.
• Fuses - two 3-amp fuses (3A, SB 250 V, T ) are provided as spares.
• Allen wrench - one 1/8” wrench is provided.
• RS-232 communications cable.
• USB to serial adapter cable.
