Introduction
2.3 Product Controls
1
2
3
4
5
6
FD1
FD3
FD2

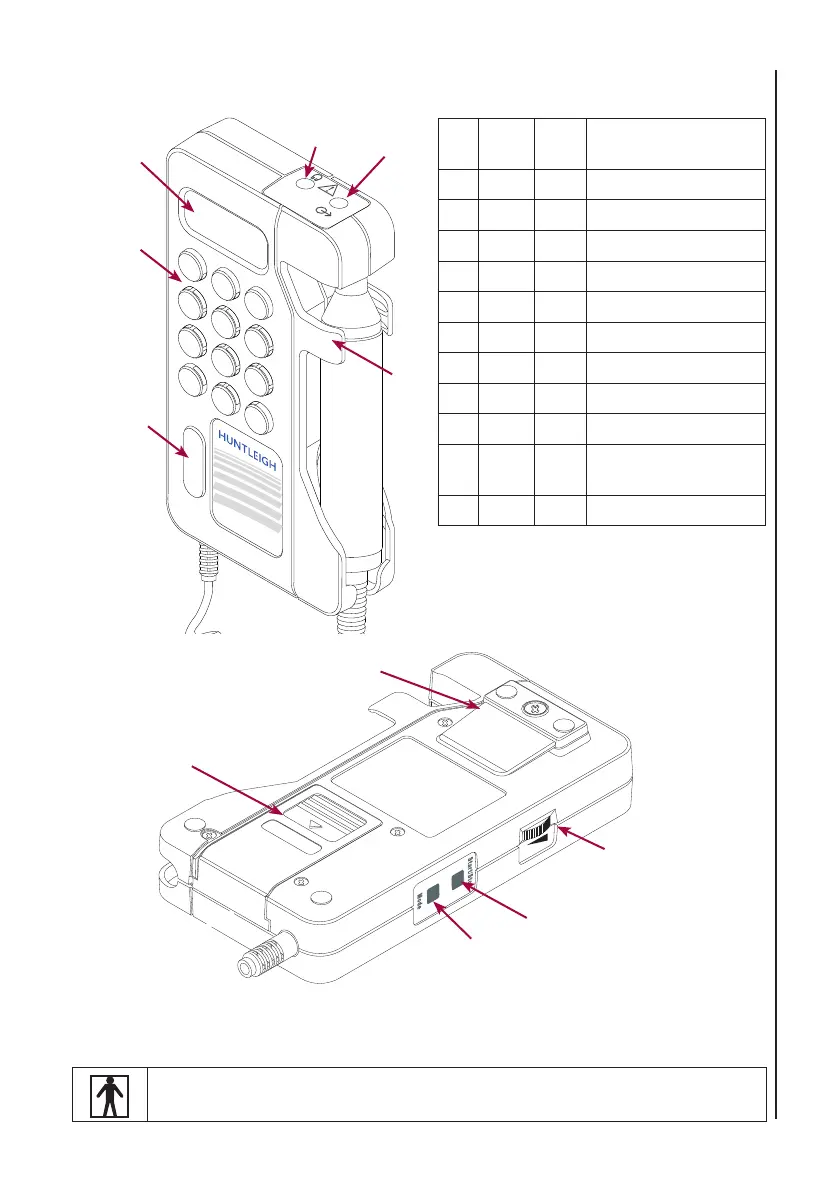

1
●●Headphone Socket
2
● RS232 Port
3
●●LCD Panel
4
●●Loud-speaker
5
●●On/Off Button
6
●●Probe Holder
7
●●Volume Control
8
● Start/Stop Button
9
● Mode Button
10
●●
Battery
Compartment
11
●●Pocket Clip
8
9
10
11
7
2.4 Product Labelling
Patient applied parts (ultrasound probes) are type BF according to the
defi nitions in IEC 60601-1:2005.
