5. How to Assemble

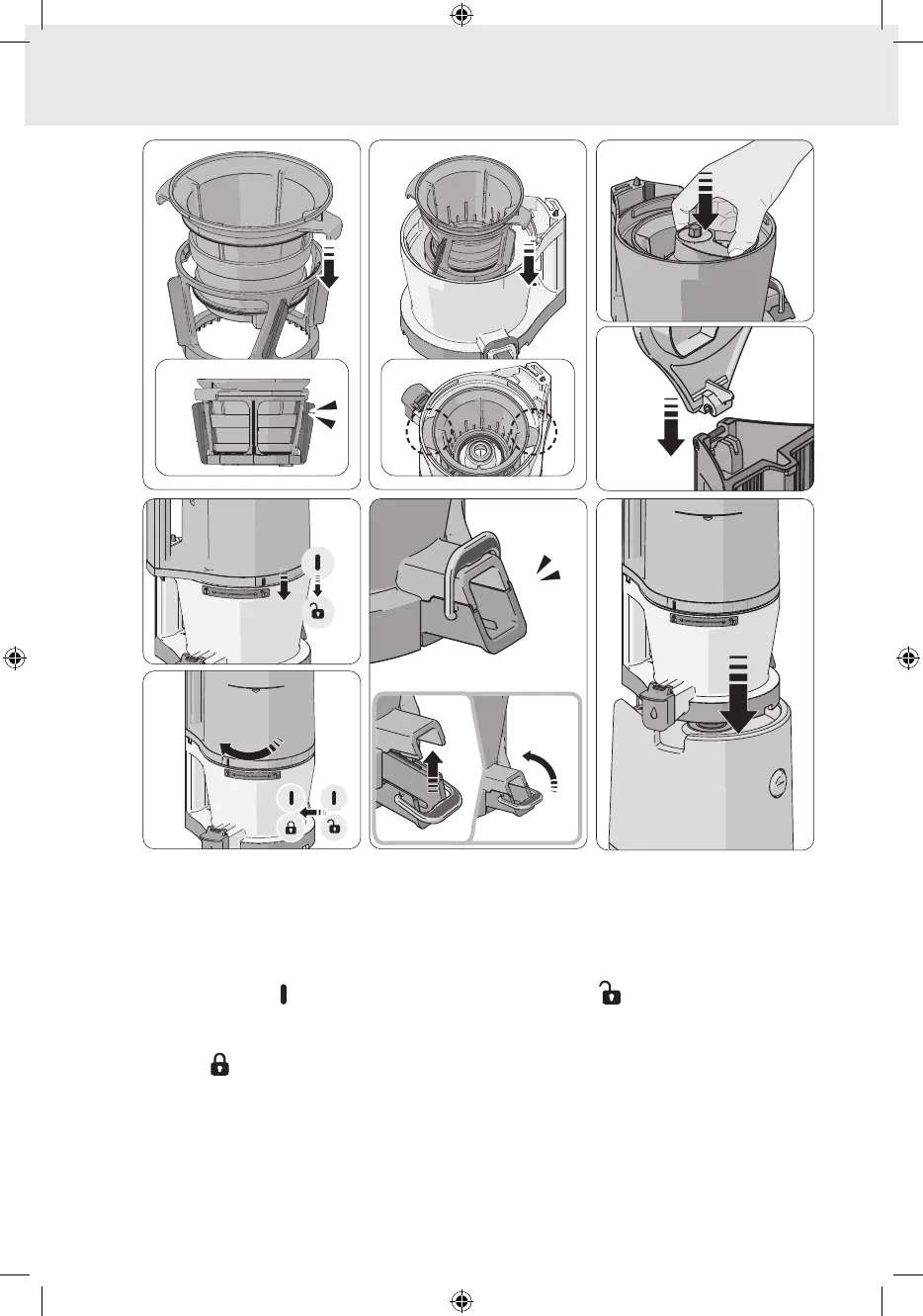

Assemble the fine strainer (④) and rotation brush (⑤) as shown in the figure. Push it all the way in.
Align the fine strainer + rotation brush set, assembled on the chamber(
⑦
), on the chamber groove as
shown in the figure.
Insert the screw on the assembled chamber. Push it all the way in until it no longer goes in.
Assemble it by making the hopper cover (
①-1) stand vertically in the hopper (②-1).
Align the hopper [
] assembly guide mark (②-3) with the chamber [ ] assembly guide mark (
⑦
-2)
to connect.
Turn the assembled hopper clockwise until its guide mark is aligned with the chamber assembly guide
mark [
].
If the internal components are not assembled correctly, then the hopper won't close.
Check that the discharge cover and the loop (
⑦
-4) of the chamber are properly fastened.
1. Close the discharge cover and fasten it with the loop.
2. If the packing is not in place or the lever is not fastened properly, juice may leak or the lever may open
during extraction.
Place the well-assembled chamber set onto the product body (
⑧
).
Assemble the chamber set and connect it to the product body.
