Operator’s Manual 17
Hurricane Power Operating
1. Park machine safely.
2. Allow engine to cool.
3. Remove any debris from around fuel tank cap/
gauge area.
4. Remove fuel tank cap/gauge slowly to allow any
pressure built up in tank to escape. Use caution
with the gauge assembly to prevent damage to
gauge.
5. Only fill fuel tank to bottom of filler neck. Do not
overfill. Clean up spilled fuel immediately.
6. Re-install fuel tank cap/gauge.

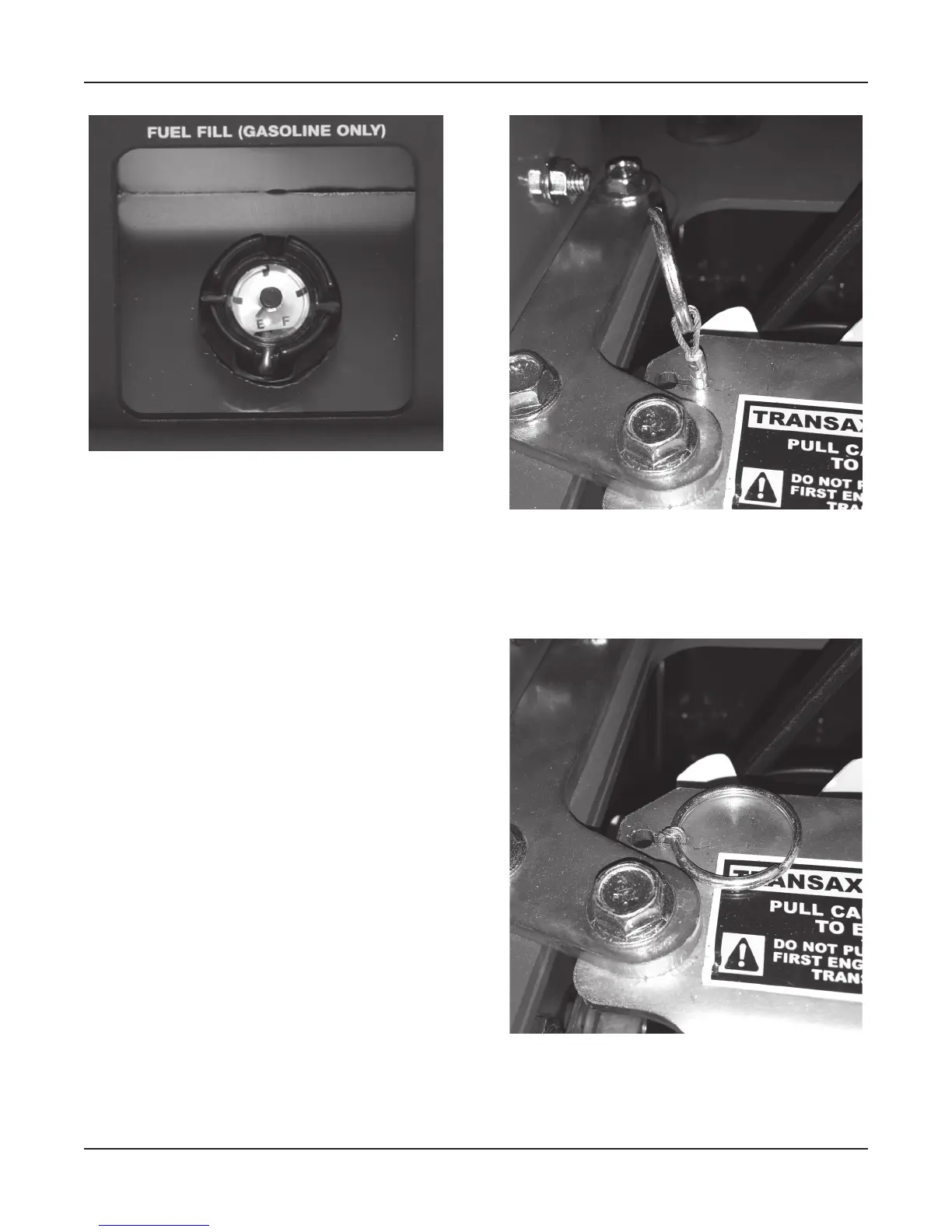

Transaxle Bypass Valve
IMPORTANT: DO NOT push or tow machine without
first engaging the transaxle bypass valve. Transaxle
damage may occur.
To move the machine with the engine not running the
transaxle bypass valve must be engaged.
1. Pull cable out past stop and move sideways to
engage transaxle bypass valve.
Transaxle Bypass Valve Engaged
2. After moving the machine, pull cable sideways
allowing cable to retract and disengage transaxle
bypass valve.
Transaxle Bypass Valve Disengaged
