Operator’s Manual 29
Hurricane Power Service
6. Thread the new belt over the pulleys in the correct
routing (Refer to Drive Belt Routing diagram).
Use 3/4 wrench to replace the tensions on the
belt.
7. Replace belt guard, tighten nuts.
Engine
Drive Pulley
Idler Pulley
Hydro Pulleys
Left Right

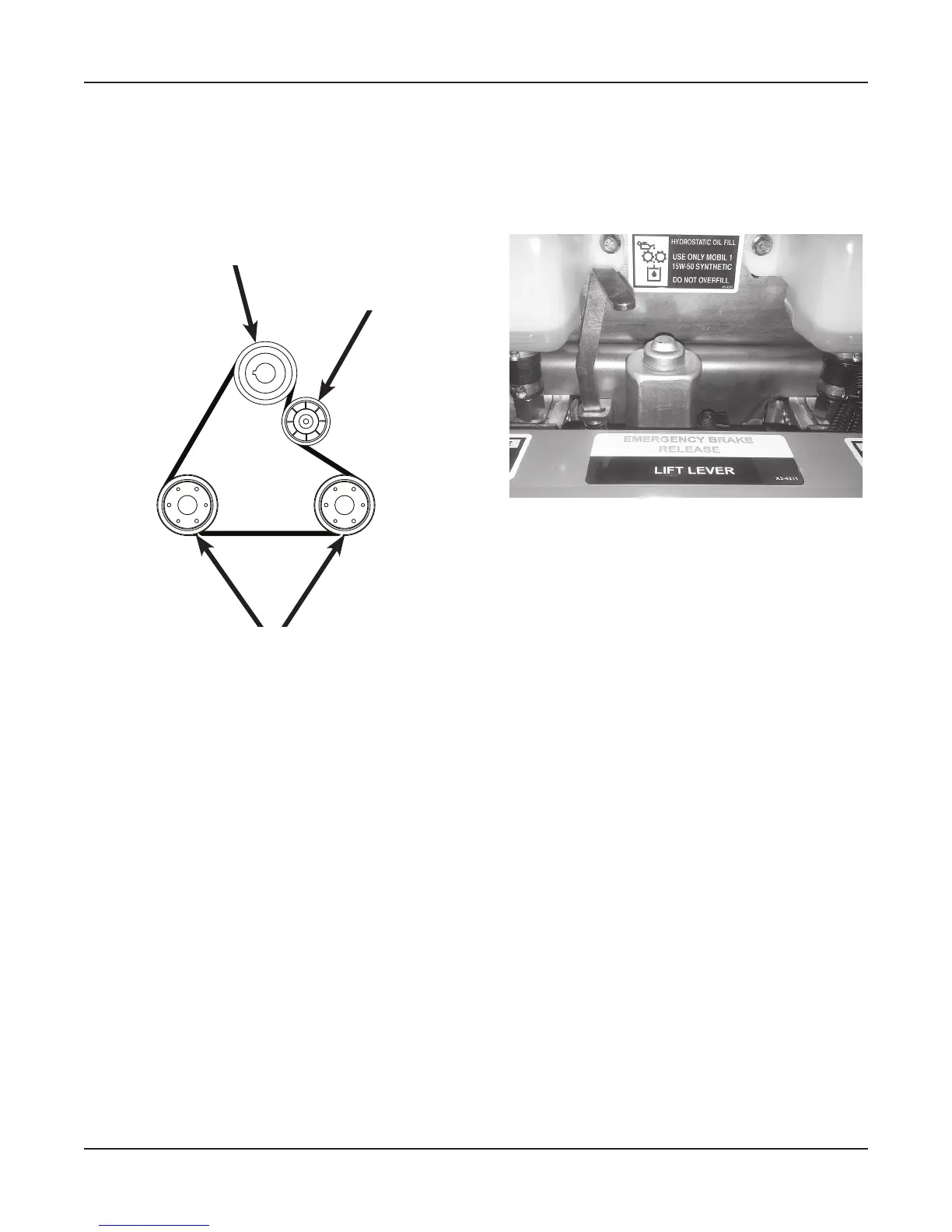

Drive Belt Routing Diagram
(View From the Back of the Unit)
8. At this time check the battery, if it needs replacing
refer to Removing and Installing Battery proce-
dure in the Service section.
9. Reassemble the unit by reversing the removal
procedure.
Service Brakes
There is no serviceable brake adjustment, the brakes
are automatic on this machine.
1. Emergency brake release, lift lever.
