Bevel gear/Cutting attachment
The angle gear has two purposes:
The rst is to gear down the engine’s high speed to better suit the lower speed a saw blade or trimmer re-
quires to work e ciently.
Secondly, the angle gear contributes towards the operator’s working stance so that it is comfortable and
at the same time e cient. In other words, the power from the engine via the drive axle should be angled so
that the cutting tool works parallel with the ground.
Dismantling
Remove the angle gear from the shaft.
Dismantling

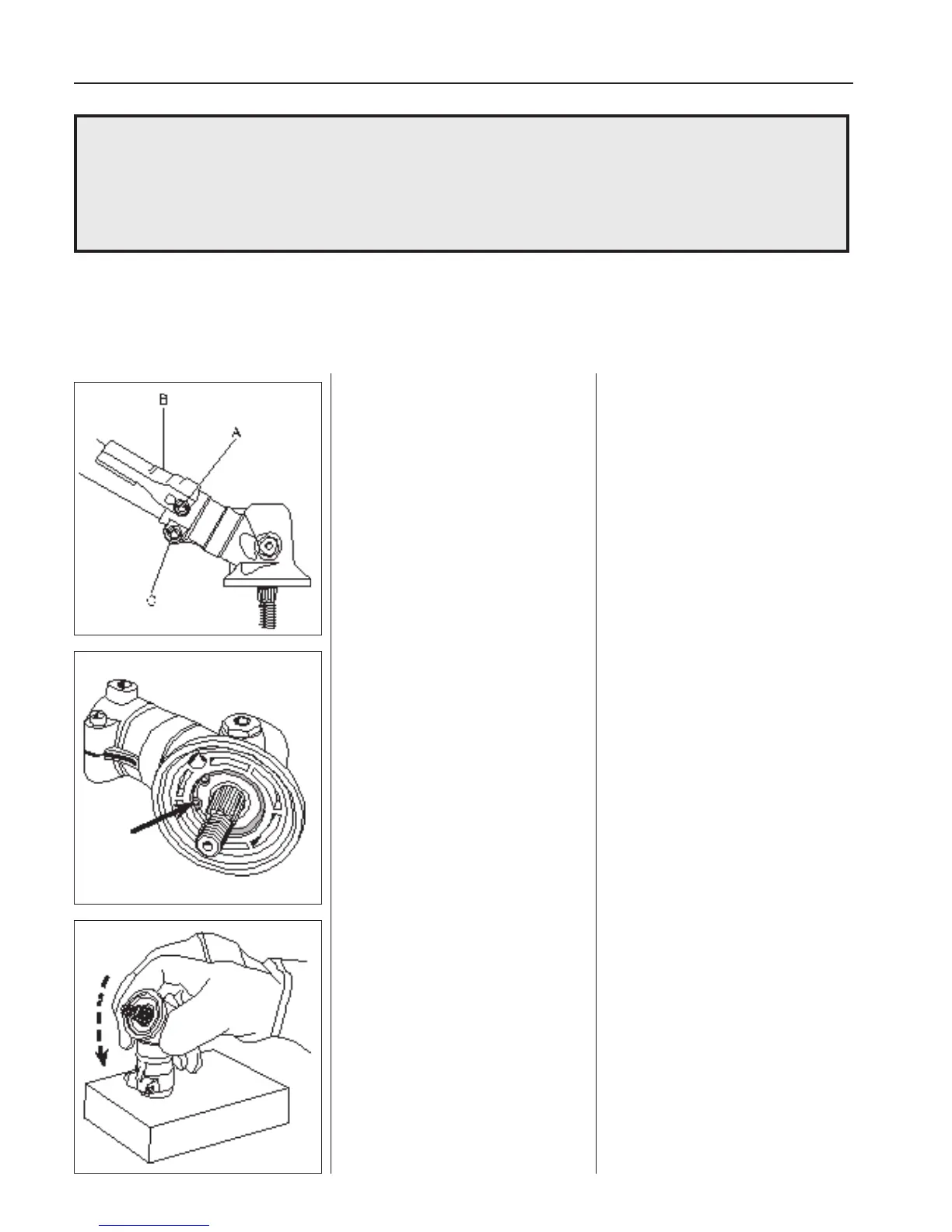

1. Remove the cutting equipment and
guard.
2. Remove the screw (A) and lift o the
plate (B).
3. Loosen the screw (C) holding the
angle gear on the shaft and remove
the angle gear.
Remove the circlips holding the bearings
on the input respective output shafts.
Heat the entire angle gear to approx.
110°C and rst dismantle the input axle
and then the output axle.
4. Remove the support washers and the
dust protection disc.
5. Remove the circlips holding the
bearings on the output axle (illustrated)
and on the input axle using the circlip
pliers.
Heat the entire angle gear using a hot air
gun to approx. 110°C.
Knock the gear against a wooden block so
that the input axle and the bearing fall out.
Now lift out the output axle.
Wear protective gloves.
