5
43
503 97 64-01

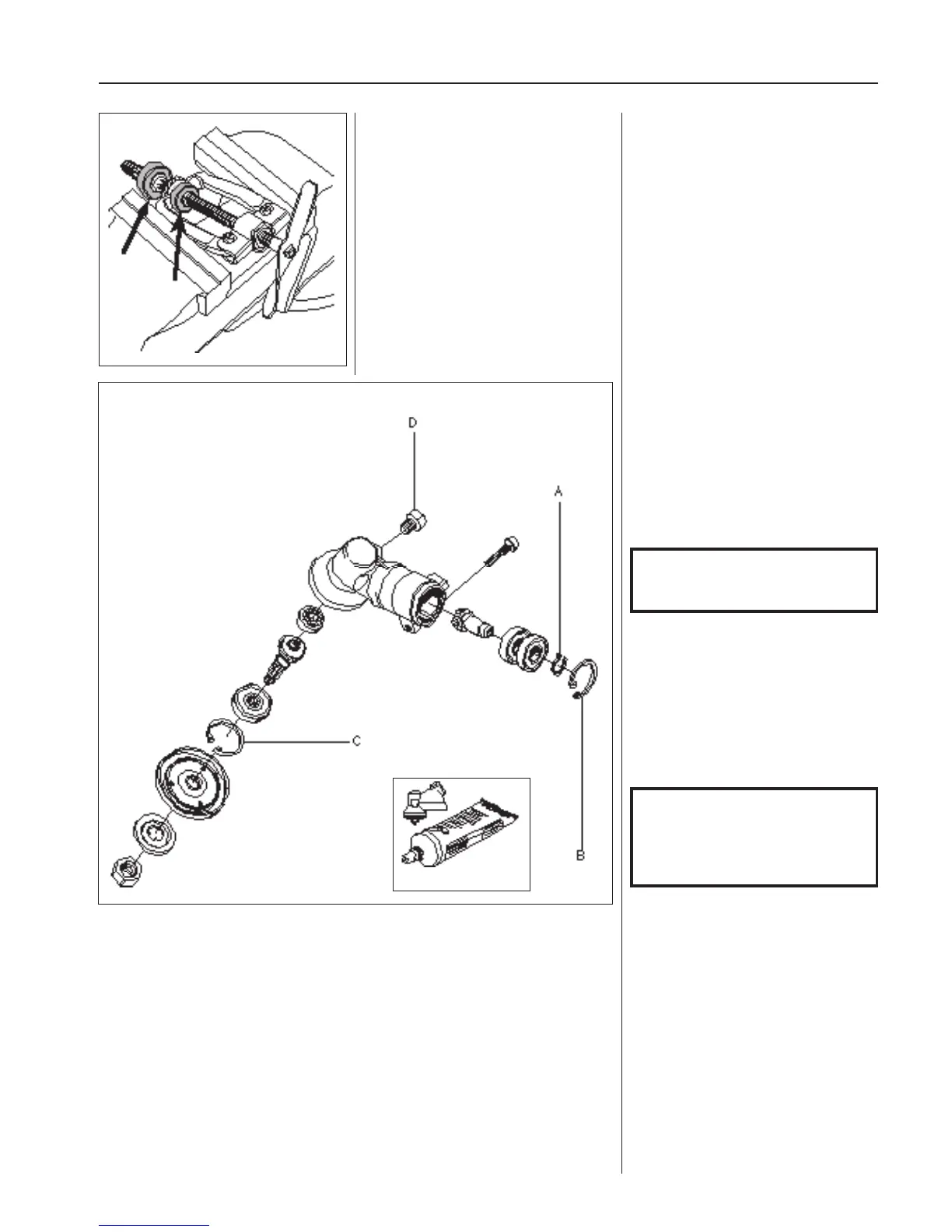

Bevel gear/Cutting attachment
NOTE!
Do not forget to ll the gear housing
to approx. 3/4 with gear housing
grease 503 97 64-01 once the plug
(D) has been removed.
Assembly
Clean all component parts and replace if
damaged or worn.
Fit the bearings on respective axles. This
is easier if the bearings are heated to ap-
prox. 110°C using a hot air gun.
The bearings on the input axle are sealed
on one side. Turn the bearings so this side
faces outwards.
Heat the gearbox to approx. 110°C and
rst place the output axle in position and
then the input axle.
Make sure the bearing bottoms in its
seating.
Fit the circlips (B) and (C). Make sure they
lie correctly in their grooves.
Assemble remaining parts in the reverse
order as set out for dismantling.
NOTE!
Do not forget the circlip (A) holding
the bearing on the input axle.
Dismantle the bearings from the output
and input axles with the help of a small
bearing puller.
TIP!
Hold the bearing puller in a vice so that it
gains a better grip around the bearing.
Dismantle the bearings from the output
and input axles.
