Husqvarna 326 E - Dismantling, Oil Pump End

5
46
502 50 18-01
Bevel gear/Cutting attachment
Dismantling, oil pump end
Dismantle the chain, bar and chain sp-
rocket.
Remove the oil tank cover, the oil hose
and circlip for the ball bearing.
Dismantling, oil pump end
Dismantle the chain, bar and chain sp-
rocket.

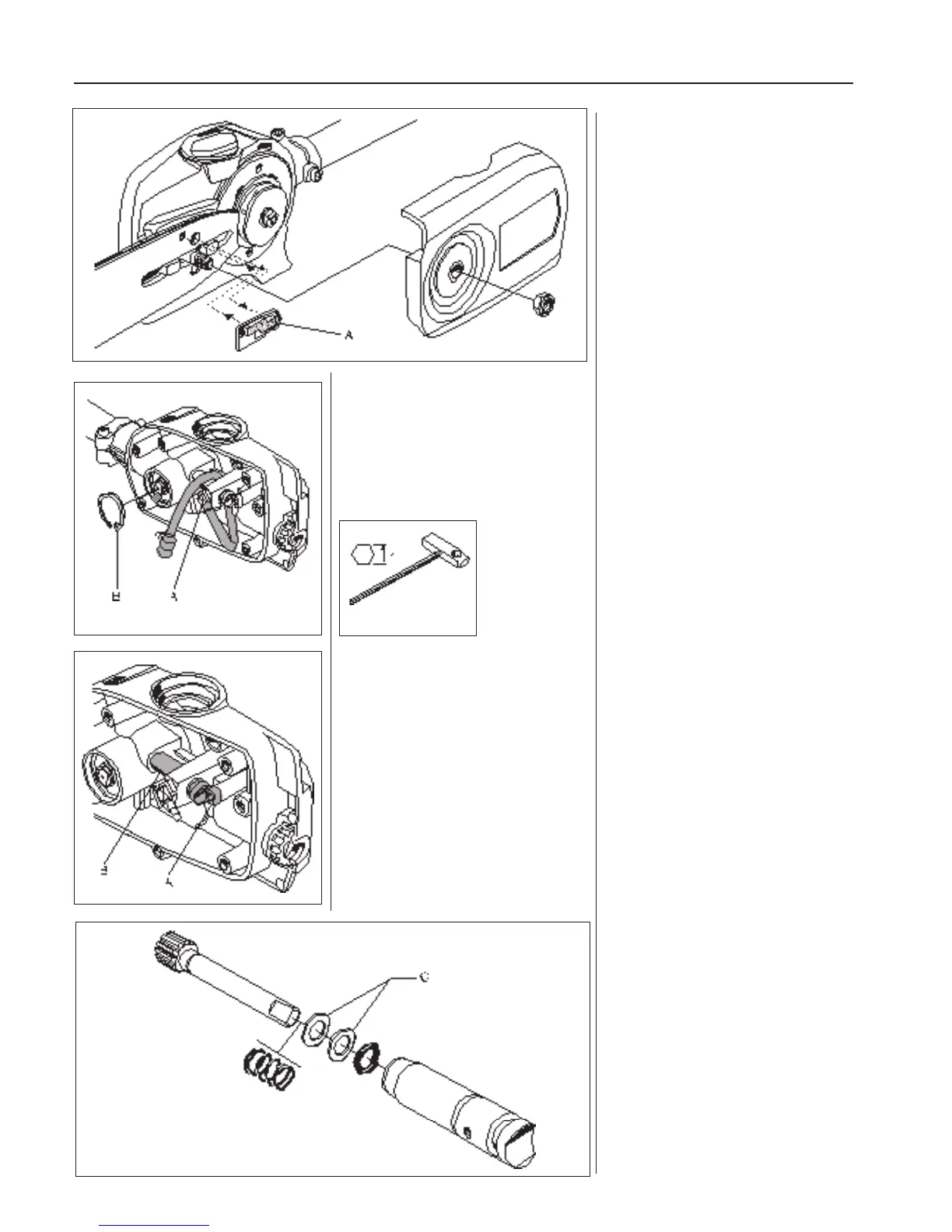

Remove the 6 screws holding the oil tank
cover in place and remove the cover.
Note how the oil hose is laid and remove
it from the nipple (A) using a  at nosed
pliers.
Remove the large circlip (B) holding the
ball bearing on the output shaft.
Remove the oil pump once the screw (A)
is removed.
Remove the screw (A) and heat the saw
body to approximately 110°C using a hot
air gun. Carefully prise o the pump hou-
sing (B) with the help of a screwdriver.
Take the oil pump apart.
Be careful not to lose the two washers (C)
while for instance cleaning the compo-
nents.
Check when assembling that the rubber
unit (A) that acts as the oil channel has
not fallen o the chain cover.
