Starter
Dismantling
Model H326

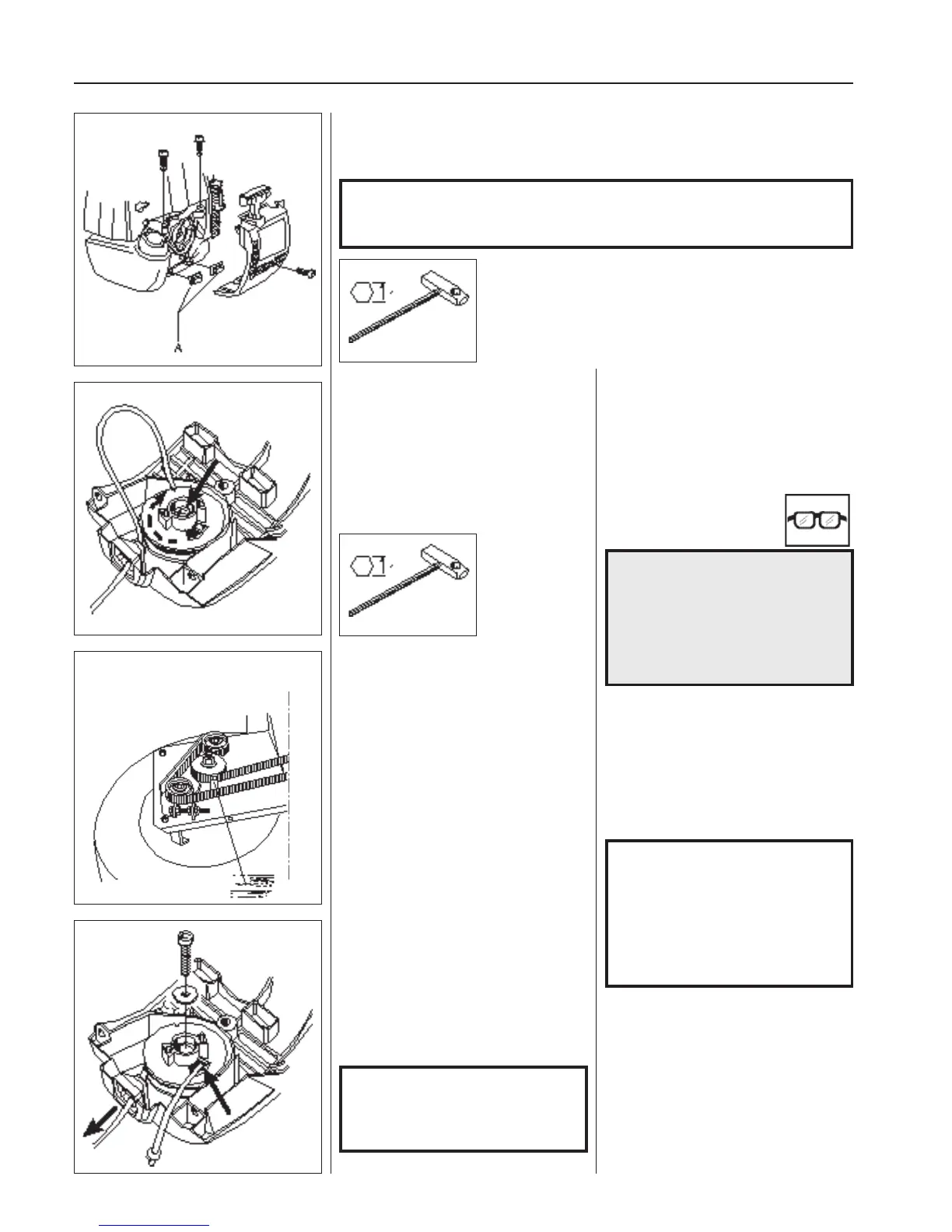

Remove the 3 screws and lift o the starter.
O oad the spring tension.
Remove the screw from the centre of the
starter pulley and lift o the starter pulley.
O oad the spring tension.
Lift up the starter cord on the starter pulley
and allow it to rotate clockwise. Slow the
rotation with your thumb.
Remove the screw in the centre of the starter
pulley. Carefully lift out the starter pulley from
the starter housing.
!
WARNING!
Wear protective glasses.
The return spring lies tensioned
in the starter and can y out
and cause personal injury with
careless handling.
NOTE!
Ensure the bushings (A) that guide the starter towards the fuel tank are not
lost.
Assembly
Model H326
Clean the component parts and assemble in
the reverse order as set out for dismantling.
Assembly
Model H326
Clean component parts before assembling.
Replace the return spring/starter pulley and
starter cord, if necessary.
NOTE!
The return spring and starter pulley
are supplied pre-assembled and
are tted in the starter housing as a
single unit.
Exercise care when opening the
packaging so that the spring does not
y out.
Assemble the starter pulley.
Assemble a new starter cord.
Lubricate the spindle with a little grease and
t the starter pulley.
Position the washer and tighten the screw.
Assemble a new starter cord. Slide it into the
starter pulley’s slot as illustrated and then out
through the cord guide in the starter housing.
Make sure the knot on the end of the cord
is as small as possible!
NOTE!
A new starter cord can be tted
without the need of dismantling the
starter!
