Fuel system

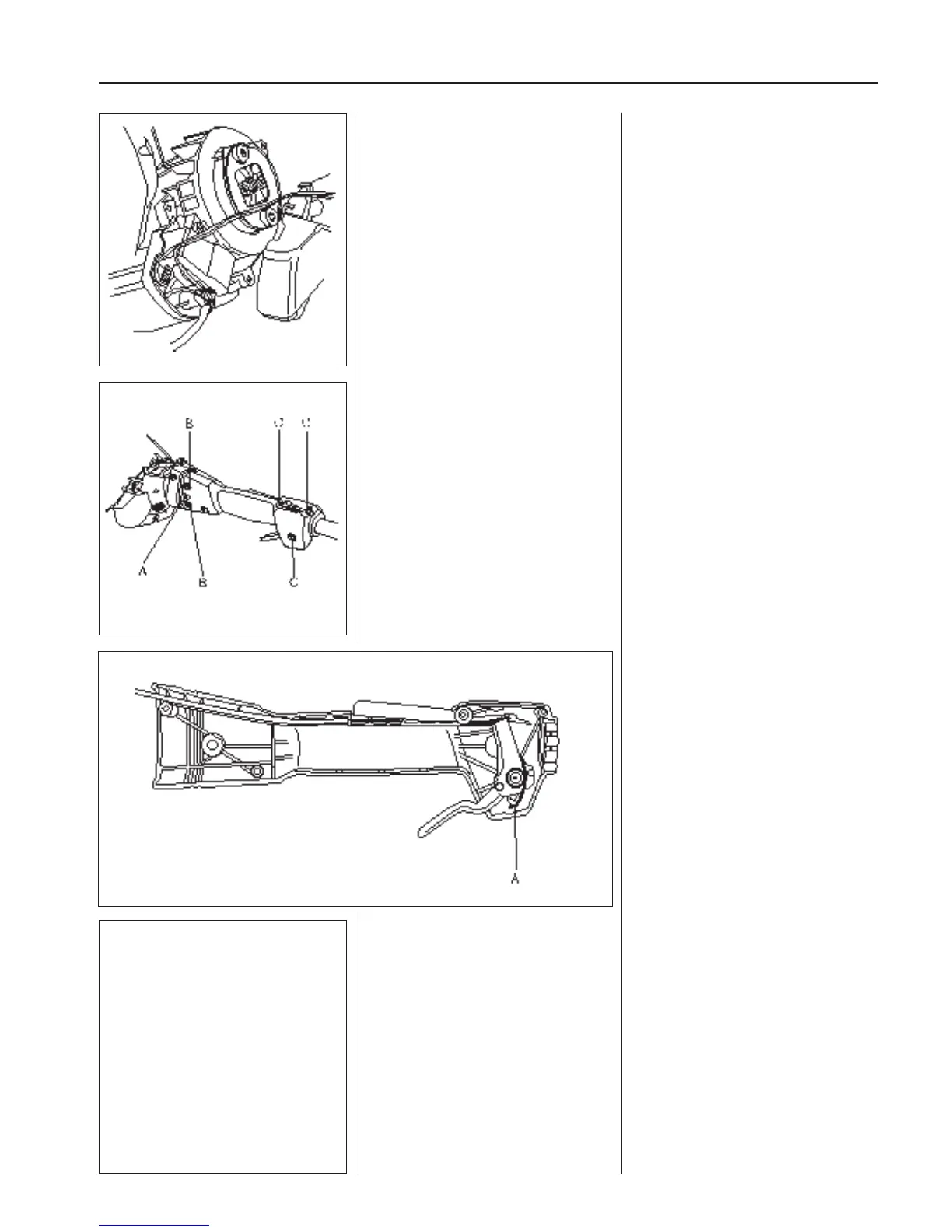

Throttle, model 326
Separate the engine body and the clutch
cover.
Throttle, model 326
We recommend that the throttle is dis-
mantled from the engine and shaft in order
to e ciently carry out service and repair
work.
Separate the engine body and the
clutch cover (see the “Electrical System”
chapter).
Pull away the shaft with the throttle from
the clutch cover.
Remove the throttle from the shaft.
Remove both screws (A) (one on each
side).
Remove the screws (B) and pull away
the shaft with the throttle from the clutch
cover.
Loosen the 3 front screws (C) (approx. 2
turns) holding the throttle halves and pull
the throttle o of the shaft.
Remove the screws holding the throttle to-
gether and carefully separate the halves.
Note how the di erent parts are tted. Pay
special attention to which way the return
spring (A) faces.
The stop contacts can be pried back using
a small screwdriver if they need to be
replaced.
