ASSEMBLING AND ADJUSTMENTS

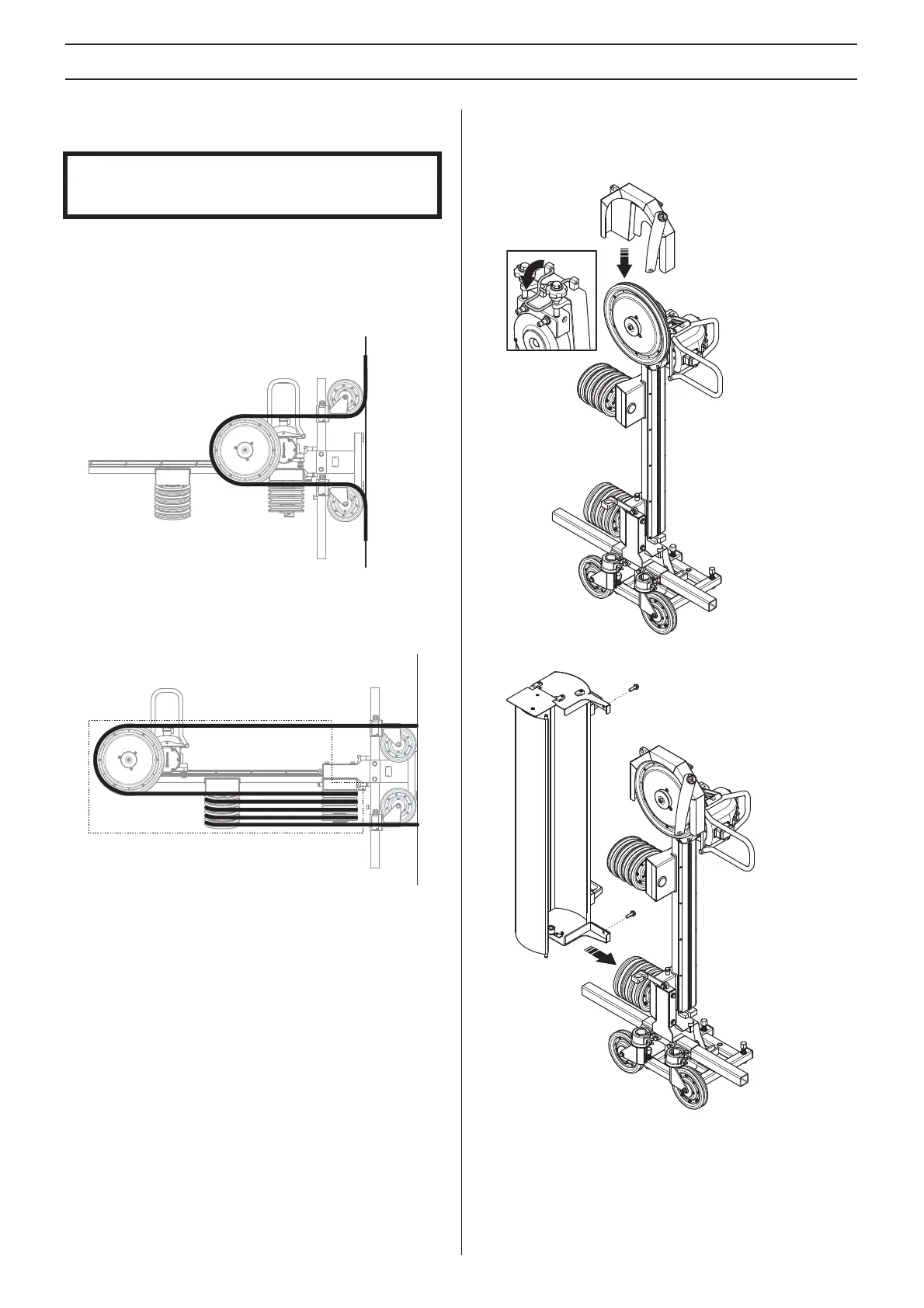

Thread the wire
• Drive the saw carriage down as far as possible.
• Place the wire around the work piece, possibly through
the predrilled holes and back to the saw.
• At min. wire through the saw, 1.7 m (6 ft), only place wire
over the drive wheel.
• As the cutting goes along, thread the wire through a
suitable number of wheel pairs in the magazine. Max. wire
through the saw is 11,3 m (37 ft) and the magazine
capacity is 10 m (33 ft).
• Before the joints on the wire are connected, the wire
should be twisted 1 to 2 turns per metre wire used. It is
important to twist the wire in the same direction as it is
spun. This is to give as even wear as possible on the wire’s
diamond segments. A closed wire does not need to be
split before you thread it through the machine.
Assemble the protective covers
• Thread the drive wheel guard over the guard bracket.
Fasten the guard with the bail.
• Mount the magazine cover in the mountings.
NOTICE! A used wire must always be run in the same
direction, as it was previously run in order to prevent
unnecessary wear.
1,9 m (6 ft)
11,3 m (37 ft)
10 m (33 ft)
