ASSEMBLING AND ADJUSTMENTS

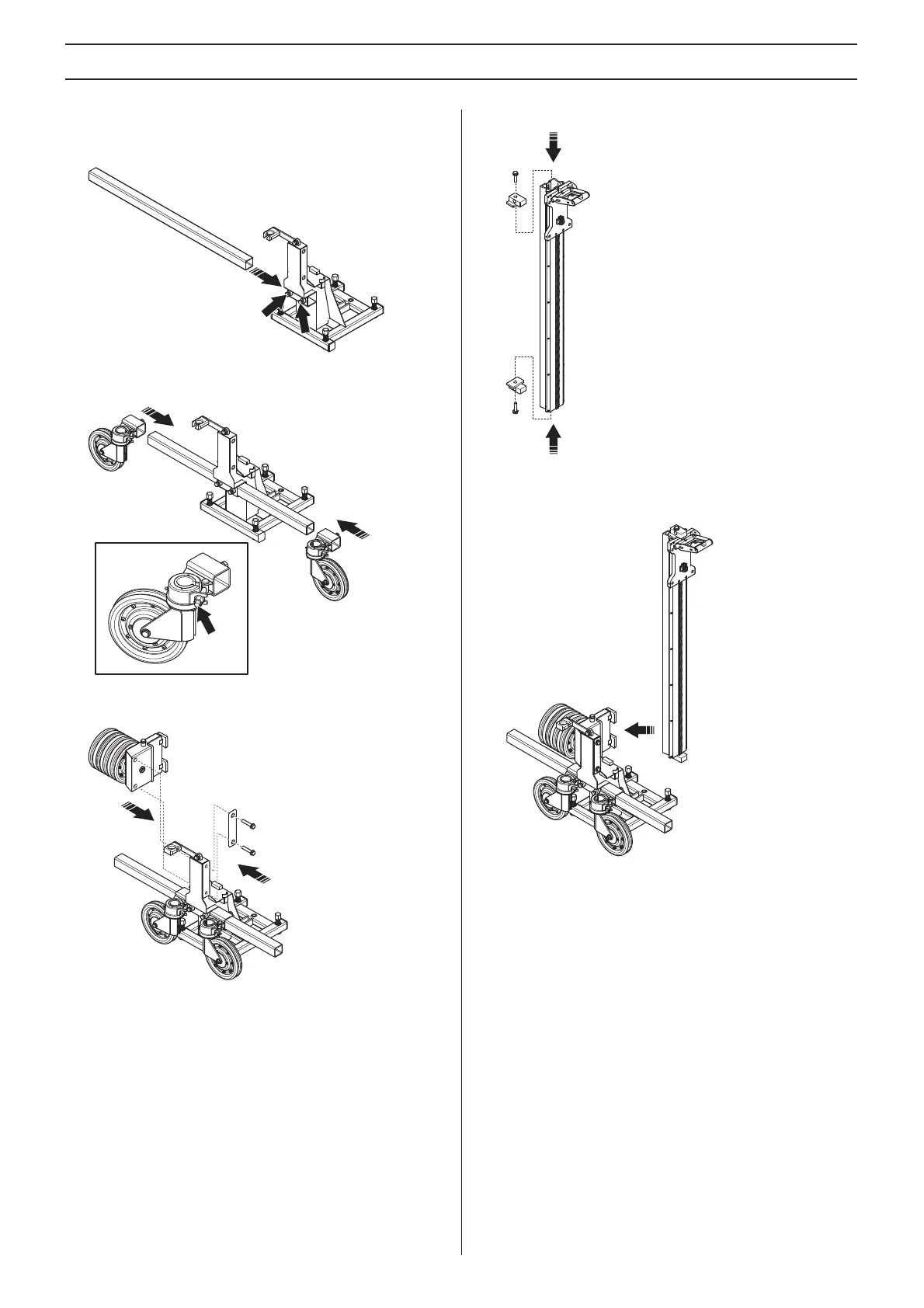

Assembling the saw
• Mount the beam on the base plate.
• Mount the swivel pulleys on the beam. The swivel pulleys
can be set to a fixed position by tightening the nut.
• Mount the lower magazine on the bottom plate. It can be
mounted on both the right and the left side.
• Mount the brackets for the magazine cover on the rail.
• Mount the rail in the mounting on the lower magazine. The
drilled hole for mounting the upper magazine should face
upwards.
