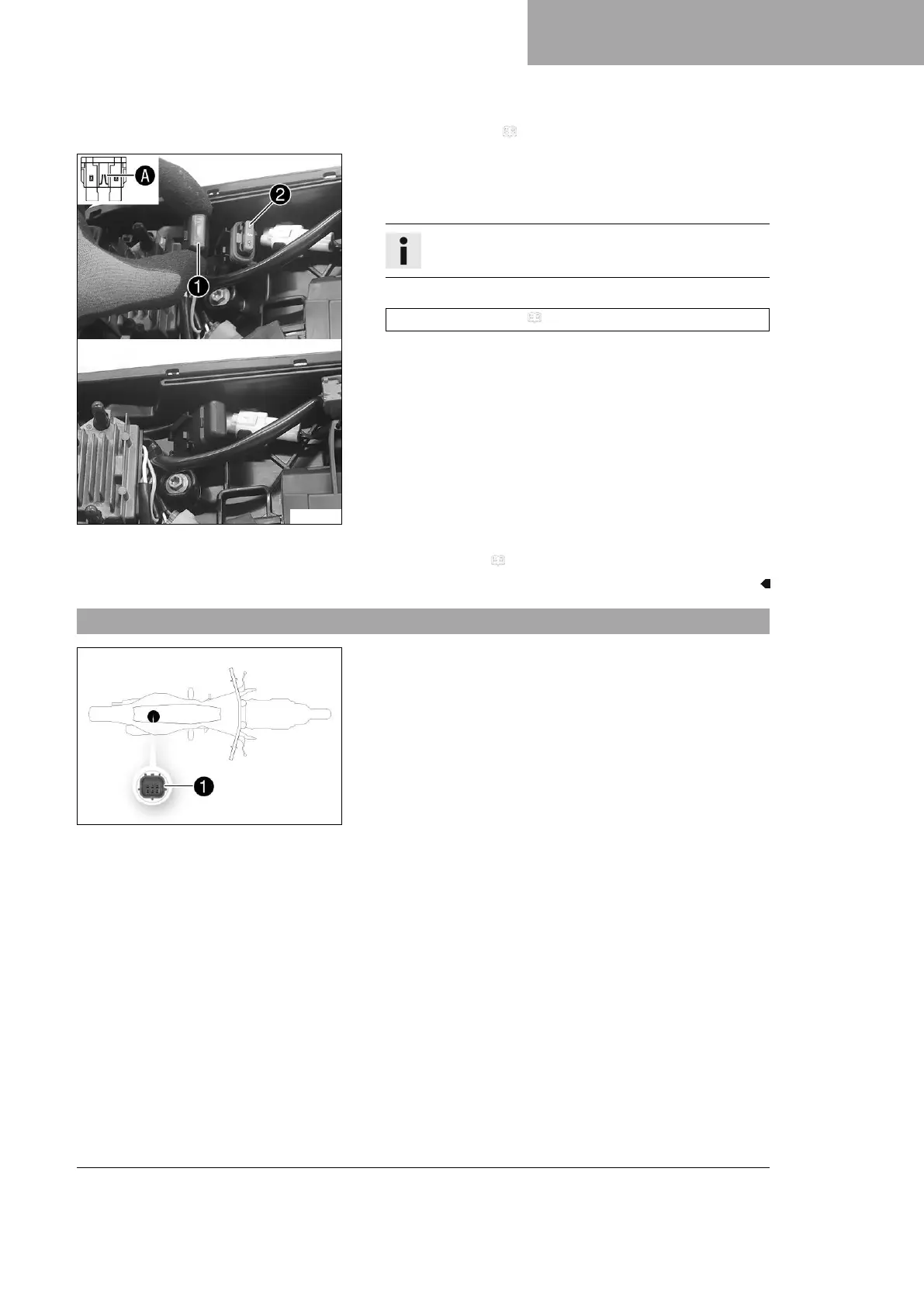

ELECTRICAL SYSTEM 14
105
Preparatory work
– Remove the seat. ( p. 61)
F03753-10
Main work
–
Take off protection cap
1
.
–
Remove the faulty fuse
2
.
Info
A faulty fuse has a burned-out fuse wire
A
.
– Insert the new fuse for the fuel pump.
Fuse (58011109105) ( p. 133)
– Check that the electrical system is functioning properly.
– Attach the protection cap.
Finishing work
– Mount the seat. ( p. 62)
14.6 Diagnostics connector
A01108-10
Diagnostics connector
1
is located under the seat.

Husqvarna FC 250 2023 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	78 mm x 52.3 mm
Compression Ratio	14.4:1
Starter	Electric starter
Transmission	5-speed
Cooling	Liquid cooled
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Tire	80/100-21
Rear Tire	100/90-19
Front Wheel	1.60 x 21"
Rear Wheel	2.15 x 19"
Ground Clearance	370 mm
Displacement	249.9 cc
Fuel Capacity	7.2 liters
Clutch	Wet, multi-disc, Brembo hydraulics
Frame	Central double-cradle type 25CrMo4 steel
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Wheelbase	1485 mm
