ENGINE DISASSEMBLY/REASSEMBLY
Workshop Manual Ed. 03-2012

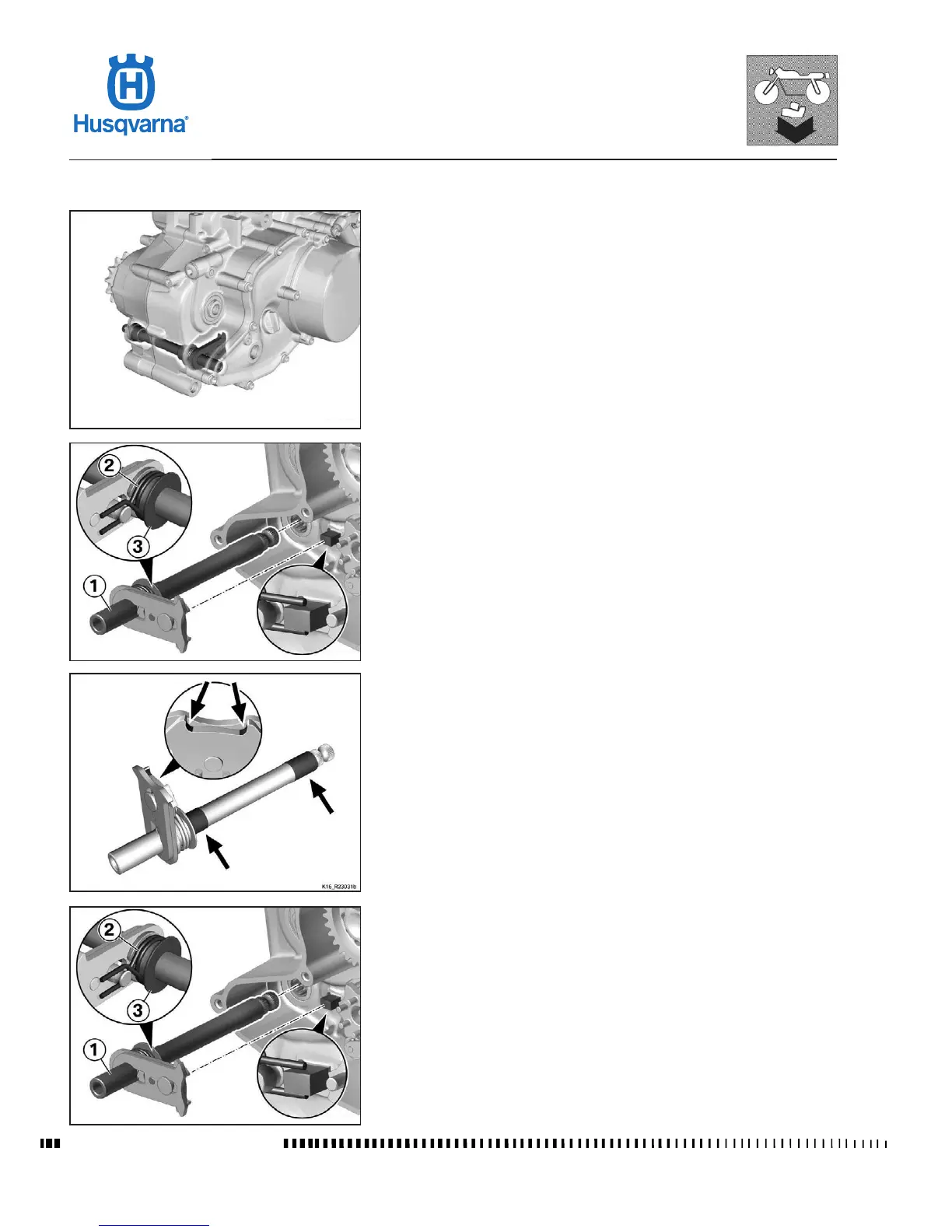

GEARBOX SHAFT REPLACEMENT (CRANKCASE COVER REMOVED)
Complete selector shaft disassembly
• Remove gearbox shaft (1) with spring (2), and washer (3).
Gearbox shaft check
Check
• Check gearbox shaft for damages.
Result: Damaged gearbox shaft.
Action:
Replace gearbox shaft (crankcase cover removed)
Gearbox shaft complete assembly
• Fit gearbox shaft (1) with spring (2), and washer (3).
• Take special care to correct spring (2) positioning.
