Workshop Manual Ed. 03-2012
ELECTRICAL SYSTEM

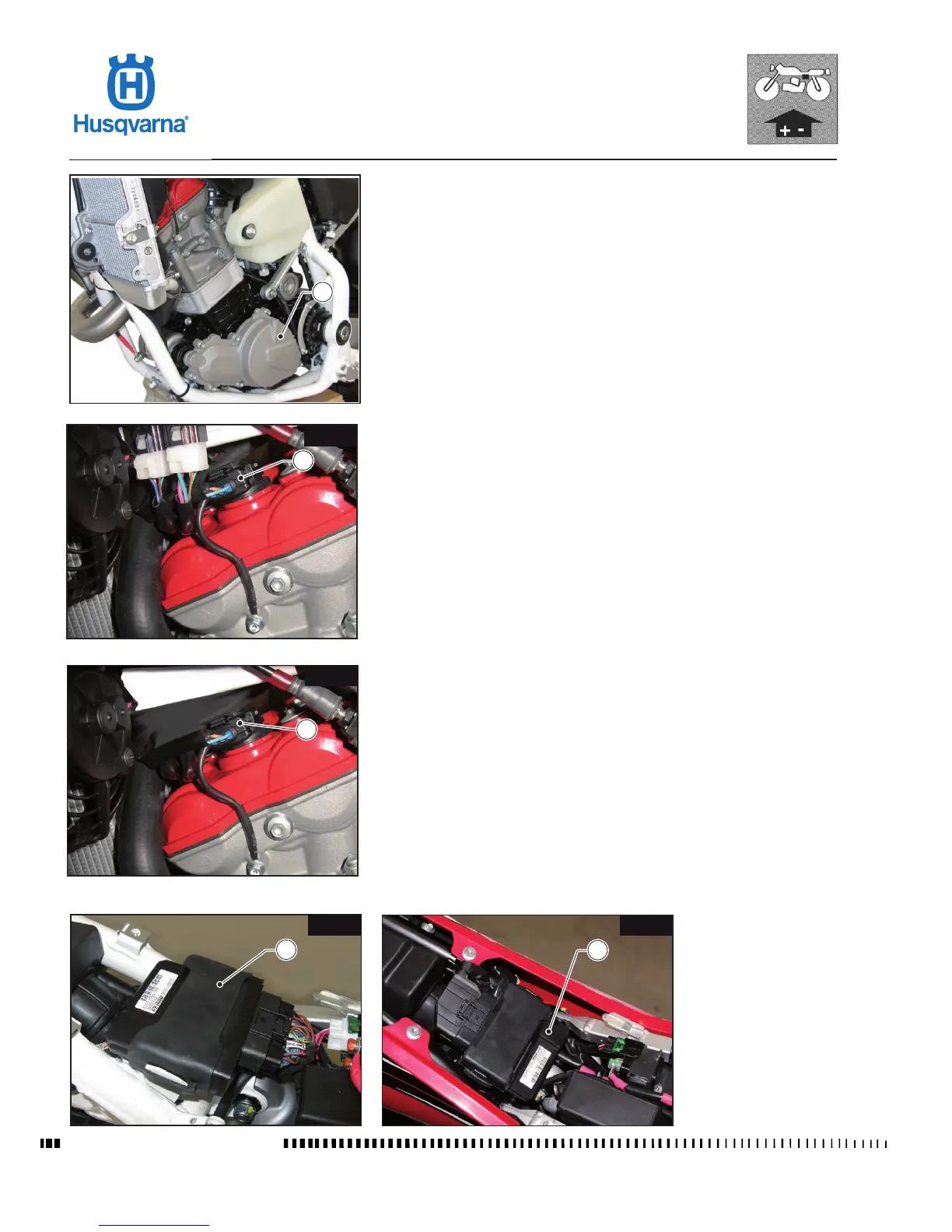

Electrical components location (TE - SMR)
The ignition system includes the following elements:
- Generator (1) on the inner side of L.H. crankcase half cover;
- Electronic ignition coil (2) with integrated spark plug cap positioned on
cylinder head;
- Spark plug on cylinder head;
- Electronic control unit (3) under the saddle;
