F1.51

TC 449 2011/2012 I.E.

TE 449 - 511 2011/2012 I.E.

TXC 449 - 511 2011/2012 I.E.

SMR 449 2011 I.E.

SMR 511 2011/2012 I.E.

H01769

H01762

H01764

8000H5018

8000H5019

8000H5017

8000H5015

8000H5016

Workshop Manual Ed. 03-2012

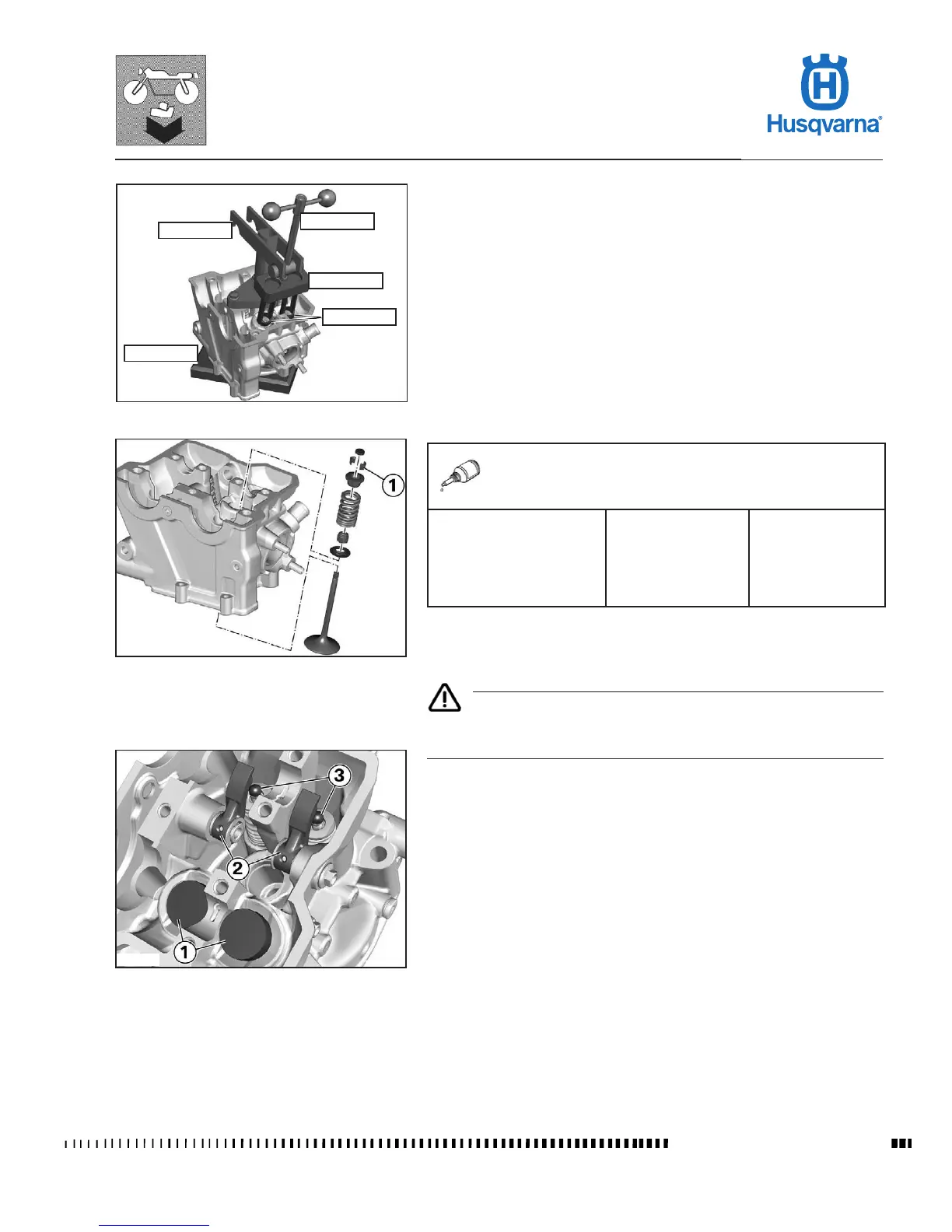

ENGINE DISASSEMBLY/REASSEMBLY

Valve assembly

• Assemble cylinder head onto support plate (N. 8000H5015).

• Fit supporting bracket (N. 8000H5017), spindle with handle (N.8000H5016),

connector (N. 8000H5018), and compression plate (N.8000H5019).

• Precharge springs using the compression plate (N. 8000H5019).

• Lubricate and assemble valve collets (1).

Consumables

Molykote D Paste Clear solid lubricant

for metal part

assembling and

settling

• Remove supporting plate (N. 8000H5015), supporting bracket (N. 8000H5017),

spindle with handle (N. 8000H5016), connector (N. 8000H5018), and com-

pression plate (N. 8000H5019).

Caution

Half balls can fall inside cylinder head oil ducts.

Plug ducts with a cloth.

• Assemble half ball (3) on the relevant valve, and overturn rocker arm (2).

• Assemble plate on the relevant valve.

• Assemble bucket type tappet (1) on the relevant valve.
