Workshop Manual Ed. 03-2012

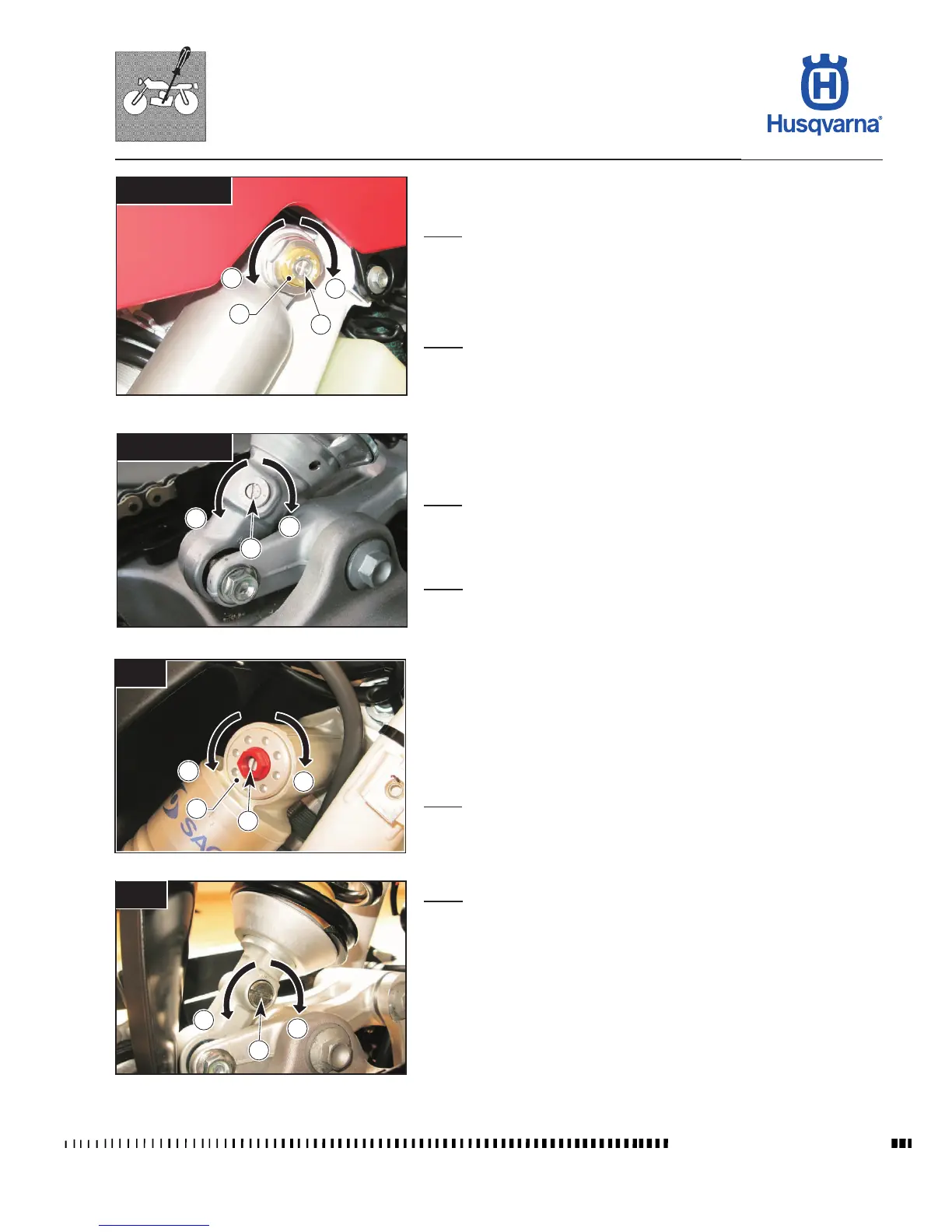

SETTINGS AND ADJUSTMENTS
Shock absorber damping adjustment
Adjustment of the compression stroke is independent from the rebound stroke.
MY11:
A) COMPRESSION - Standard setting:
1) Low damping speed:
TC - TE - TXC: -11 click
SMR: -11 click (± 2 click)
(adjuster 1)
MY12:
A) COMPRESSION - Standard setting:
1) Low damping speed:
TC-TXC: 13 +1/-2 click
TE: 16 +1/-2 click
SMR: -11 click (± 2 click)
(adjuster 1)
MY11:
TC - TE - TXC: -1.1/4 turns
SMR: -18 click (± 2 click)
(adjuster 2)
MY12:
2) High damping speed:
TC - TE - TXC: 1 ± 1/2 turns
SMR: -18 click (± 2 click)
(adjuster 2)
To reset the standard setting, turn upper adjusters (1) and (2) clockwise until reach-
ing fully closed position. Then turn them back to the above-mentioned positions.
In order to obtain a smooth braking action, turn the adjusters counter clockwise.
Vice versa to obtain a harder braking action.
MY11:
B) REBOUND - Standard setting:
TE= -18 turns
TC-TXC= -17 turns
SMR= -11 click (± 2 click)
MY12:
B) REBOUND - Standard setting:
TC-TXC: 13 +1/-2 click
TE: 16 +1/-2 click
SMR= -11 click (± 2 click)
To reset the standard setting, turn lower adjuster (3) clockwise until reaching
fully closed position. Then turn it back by the mentioned clicks.
In order to obtain a smooth braking action, turn the adjuster counter clockwise.
Vice versa to obtain a harder braking action.
