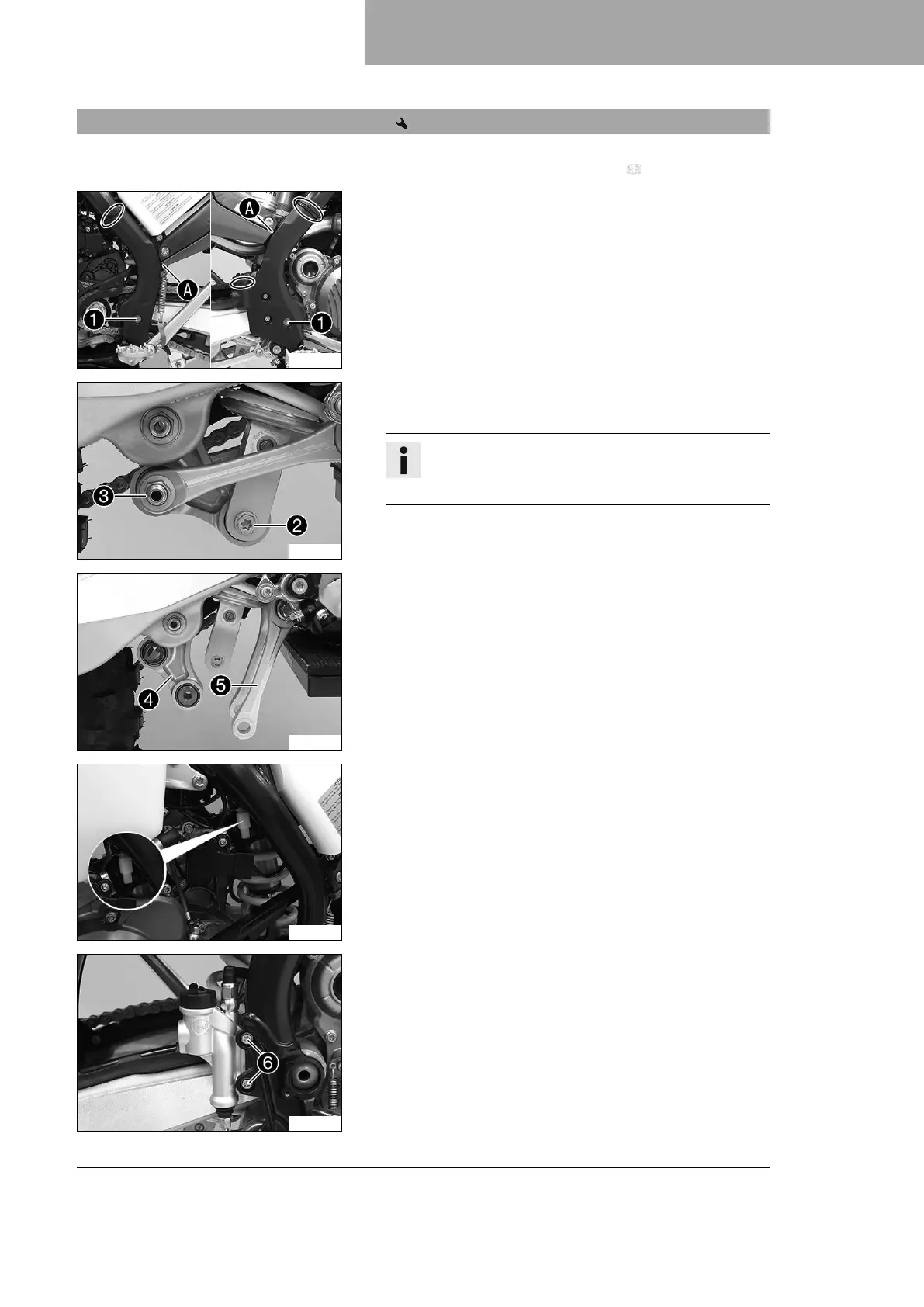

12.16 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 56)
H03692-10
Main work
– Remove the cable ties.
–
Remove screws
1
with the washers.
–
Detach the frame protector in area
A
and take it off.
H03693-10
–
Remove screw
2
.
–
Remove fitting
3
.
Info
Raise the link fork slightly to be able to remove the
screws more easily.
H03694-10
–
Press angle lever
4
toward the rear.
–
Press linkage lever
5
downward.
H03698-10
(All EU models)
– Disconnect the plug-in connector of the brake light
switch.
H03695-10
–
Remove screws
6
.
– Pull off foot brake cylinder from the push rod.
