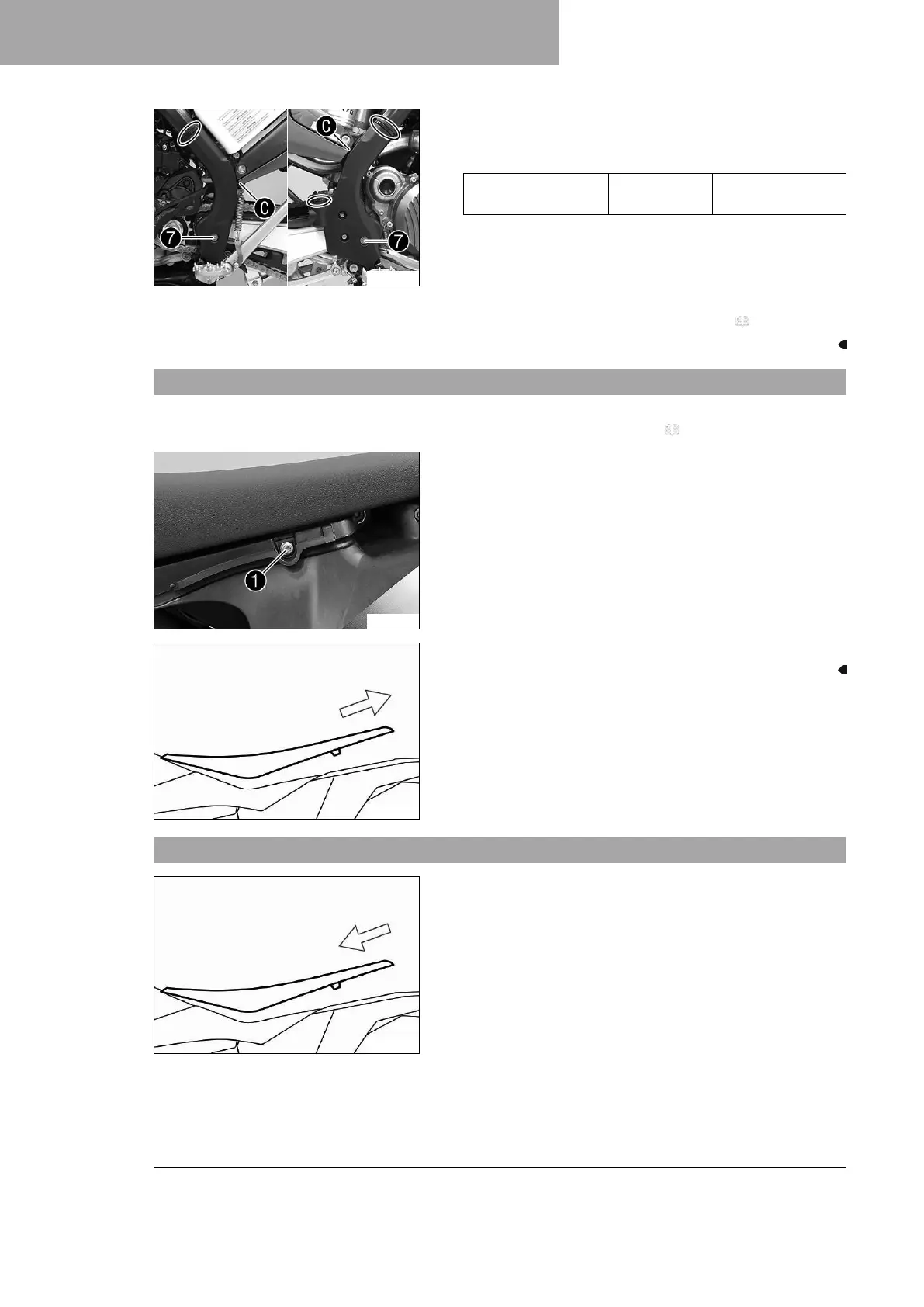

12 SERVICE WORK ON THE CHASSIS
68
F02309-10
–
Attach frame protector in area
C
and position.
–
Mount and tighten screws
7
with the washers.
Guideline
Screw, frame pro-
tector
M5 3 Nm (2.2 lbf ft)
– Mount the new cable ties.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 56)
12.18 Removing the seat
Preparatory work
– Remove the air filter box cover. ( p. 69)
F02310-10
Main work
–
Remove screw
1
.
H02218-10
– Raise the rear of the seat, pull the seat back, and lift it off.
12.19 Mounting the seat
H02218-11
Main work
– Mount the front of the seat on the collar bushing of the fuel
tank and the rear in the bracket.
– Push the seat forward.
– Make sure the seat is correctly latched in place.
