T:\WIRESCHEMATICS\NEW-WIRING
CRFD 7'-4" -REMOTE
W0400011

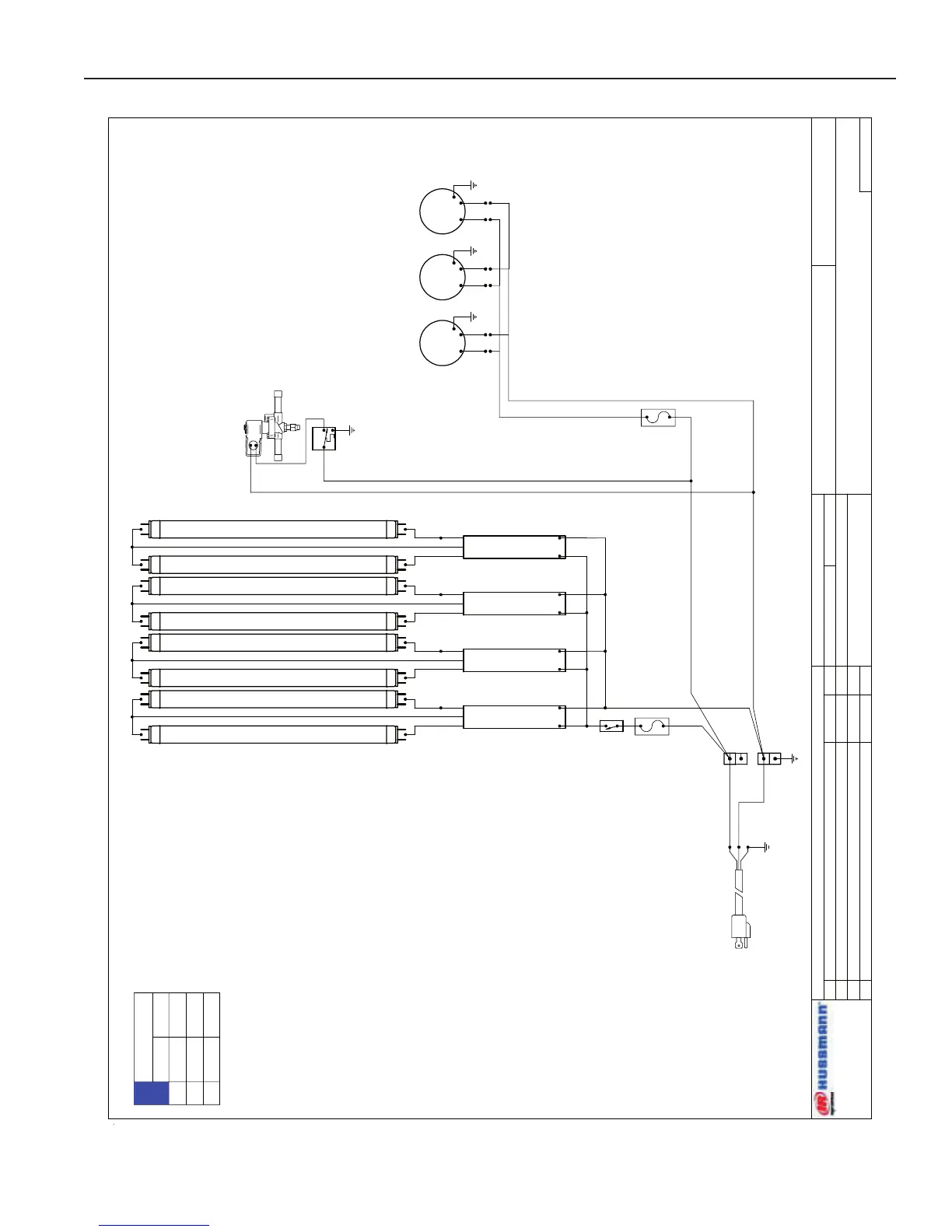

CRFD 7'-4" FLORA REFRIGERATED CASE
LIGHT SWITCH
125-01-0307
CANOPY LIGHTING
(8) F32T8-48" LAMP 125-03-1073
(4) LIGHT FIXTURE
125-02-1082
FAN MOTOR (3) GE 9W - 115V 125-01-0615A
M
TERMINAL
BLOCK
125-01-0295
POWER: ~ 208 / 230 VAC - 1Ø - 50/60 HZ. - 4W
M M
EVAPORATOR FAN MOTOR
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
FUSE 125-01-3282 15 AMP FUSE
FUSE HOLDER
125-01-3283
FUSE 125-01-3282
15 AMP FUSE
FUSE HOLDER
125-01-3283
L1
L2
N
G
WHITE-14 AWG
BLACK-14 AWG
BLACK-14 AWG
WHITE-14 AWG
BLACK-14 AWG
WHITE-14 AWG
T-STAT
SUCTION
SOLENOID
SOLENOID
225-01-3206
THERMOSTAT
225-01-0707
CIRCUIT #1
NOTE:
CASE MUST
BE GROUNDED
5.6
0.0 0.0
L1
L2 L3
115 V
LOADING
