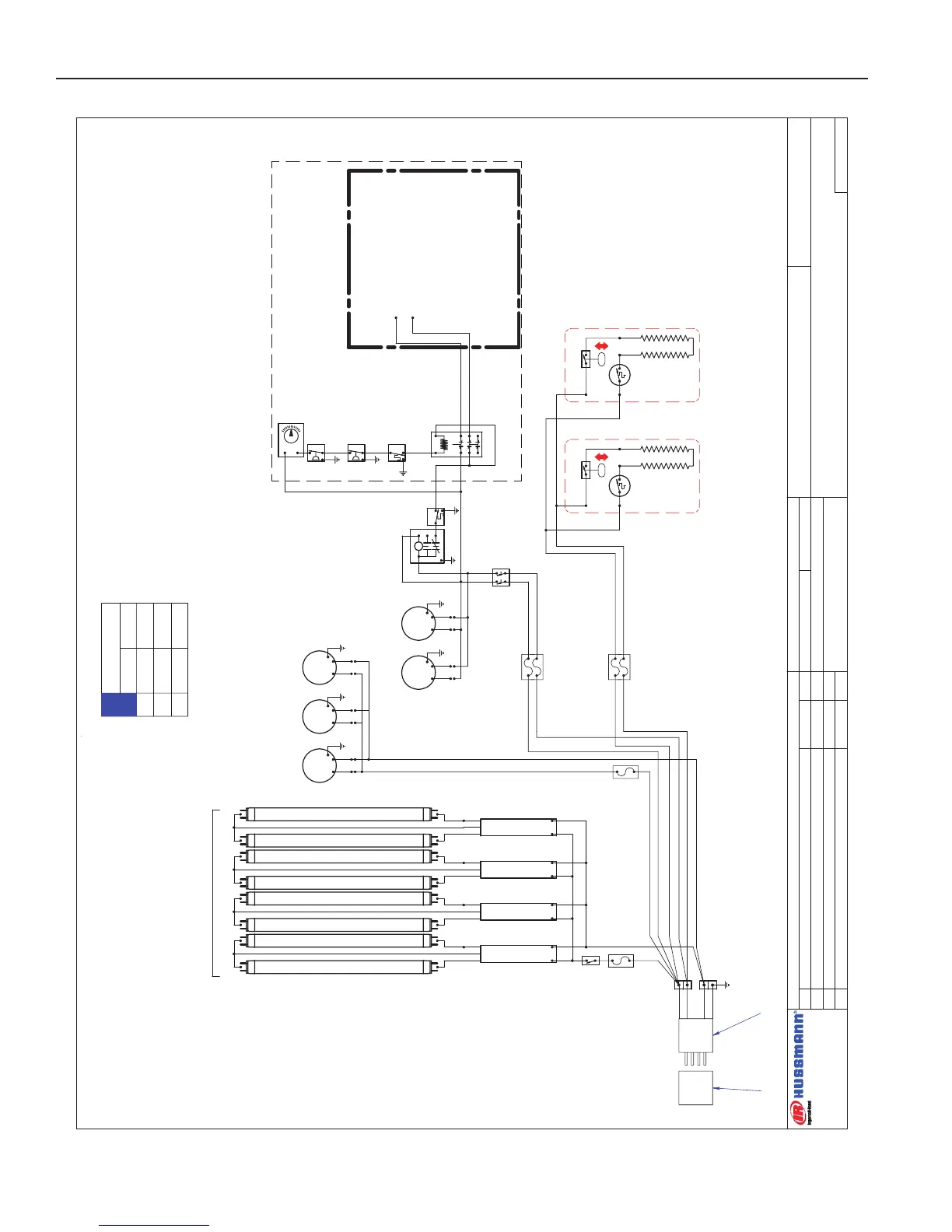

CRFD 7'-4" FLORAL REFRIGERATED CASE (R-507)
NOTE:
1. ALL MAIN POWER WIRES TO BE
MINIMUM 6 AWG. 2. ALL 6 AWG CONNECTIONS SHALL
BE DONE WITH TERMINAL BLOCK
RATED FOR 60 AMPS. 3. GROUND WIRES SHALL BE
SAME
SIZE AS MAIN BRANCH CIRCUIT.
PAGE 2 of 2
THIS IS CASE 2 OF 2
NOTE: CASE MUST
BE GROUNDED
33.5
34.0
33.5
34.2
L1
L2
L3
208 V 240 V
LOADING
SWITCH HUBBELL
HBL-1372
125-01-0312
CONDENSING UNITS - COPELAND®
FJAM-A25Z-CFV-020 / 3 H.P. / R-507 17.9 RLA
225-03-7509
CONDENSER FANS
~208 VAC
T
X
4
N
3
1
2
DEFROST TIMER
PARAGON 8045-20
~208 V - 60 Hz.
125-01-0715
T-STAT
LOW
PRESSURE DEVICE
HIGH PRESSURE
DEVICE
TIME DELAY
DEVICE
CONDENSING UNIT
T-STAT
CONDENSING UNIT
LIGHT SWITCH
125-01-0307
CANOPY LIGHTING
(8) F32T8-48" LAMP 125-03-1073
(4) LIGHT FIXTURE 125-02-1082
FAN MOTOR (3) GE 9W - 115V
125-01-0615A
M
M
TERMINAL
BLOCK
125-01-0295
FISHER™ EVAPOWAY™
DM20WW-3D 2000W @ ~ 240 VAC
125-01-0500
SAFETY
SWITCH
FLOAT SWITCH
FISHER™ EVAPOWAY™ DM20WW-3D
2000W @ ~ 240 VAC 125-01-0500
SAFETY SWITCH
FLOAT SWITCH
POWER: ~ 208 / 230 VAC - 1Ø - 50/60 HZ. - 4W
M
EVAPORATOR FAN MOTOR
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
FIXTURE LITHONIA
C232 125-02-1082
FUSE 125-01-3282
15 AMP FUSE FUSE HOLDER
125-01-3283
FUSE 125-01-3282
15 AMP FUSE FUSE HOLDER
125-01-3283
FUSE 125-01-3286 (2) 25 AMP FUSE
FUSE HOLDER (1)
125-01-3285
FUSE 125-01-3284 (2) 30 AMP FUSE
FUSE HOLDER (1)
125-01-3285
125-01-8510
NEMA L14-60P
MALE PLUG
125-01-8514
NEMA L14-60R
FEMALE PLUG
L1
L2 N
G
NOTE:
1. USE
RECEPTACLE
MOUNTING PLATE
PART NUMBER 125-01-8515
WHITE-14 AWG
BLACK-10 AWG
BLACK-10 AWG
BLACK-14 AWG
BLACK-14 AWG
WHITE-14 AWG
RED-10 AWG
BLACK-10 AWG
RED-10 AWG
RED-10 AWG
RED-10 AWG
RED-10 AWG
BLACK-10 AWG
BLACK-14 AWG
RED-10 AWG
BLACK-10 AWG
BLACK-10 AWG
WHITE-14 AWG
CIRCUIT #2
M M
CIRCUIT #1 - SECTION B - LOWER CONDENSING UNIT
Wiring Diagrams (Cont'd)
