HUSTLER Super 104 Service Manual

117364 5-3 REV B
Fuel Evaporation System Filter
Some Hustler
®
Super 104 mowers have a fuel evaporation
system filter. This filter must be checked and replaced every 500
hours or annually whichever comes first. Figure 1-1

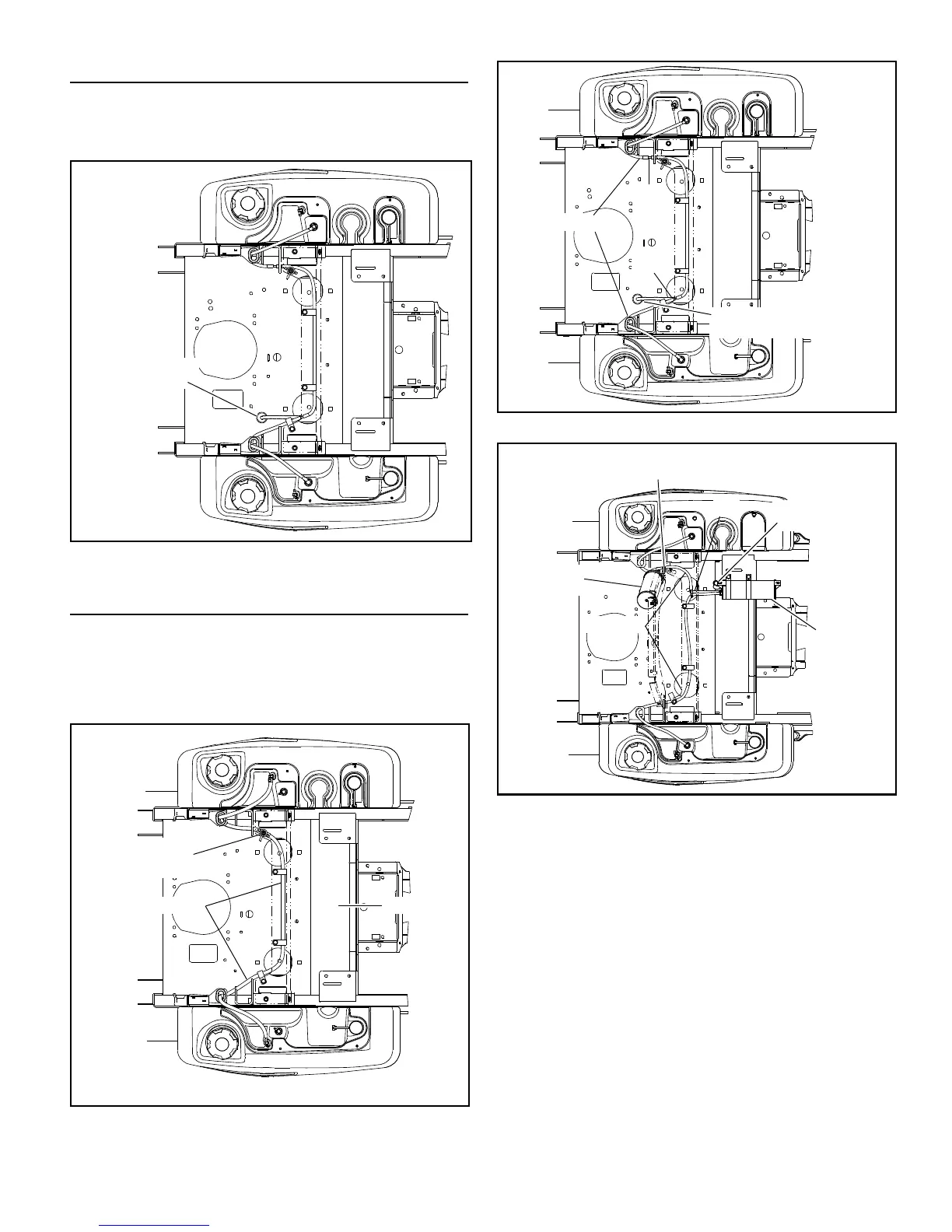

Fuel & Evaporative System Line Routings
There are two rubber hoses that are connected to the fuel
tanks. One is the fuel hose that is part of the fuel system. The
other is the vapor line that is part of the fuel evaporative system.
The fuel hose is connected to the fuel tank as shown. It
connects the fuel tank to the fuel shutoff valve. Figure 5-7
The vapor line is connected to the fuel tank as shown. It
connects the fuel tank to the engine’s vapor port. Figure 5-8 &
Figure 5-6
Figure 5-7
Fuel evaporation
system filter
Fuel
shutoff
valve
Fuel
tank
Fuel
tank
Fuel line
Seat support
Figure 5-8
Figure 5-9
Fuel evaporation
system filter
Vapor line
Tee
Fuel
tank
Fuel
tank
Tee
Fuel evaporation
system filter
Vapor line
Tee
Fuel
tank
Fuel
tank
Carbon
canister
Carbon
canister
Fuel evaporation
system filter
