117364 6-7 REV B

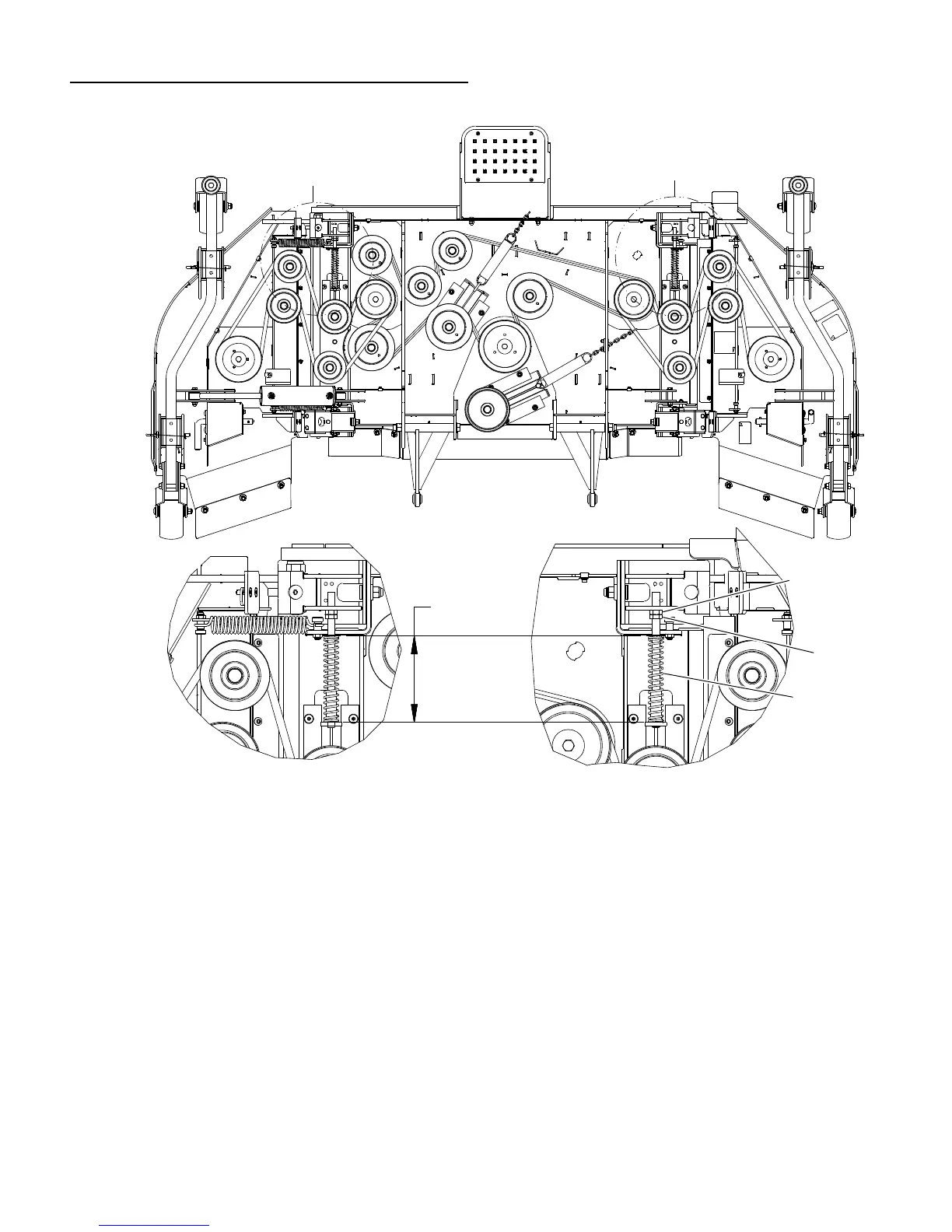

Center Deck To Side Deck Belt Routing & Tensioning
Figure 6-16
Spring length after
tensioning new belt
6.0” ± 0.25”
(152mm ± 6.3mm)
Adjusting nut
Jam nut
Idler spring
See Detail A
See Detail B
Detail A
Detail B
