HUSTLER Super 104 Service Manual

117364 9-5 REV B

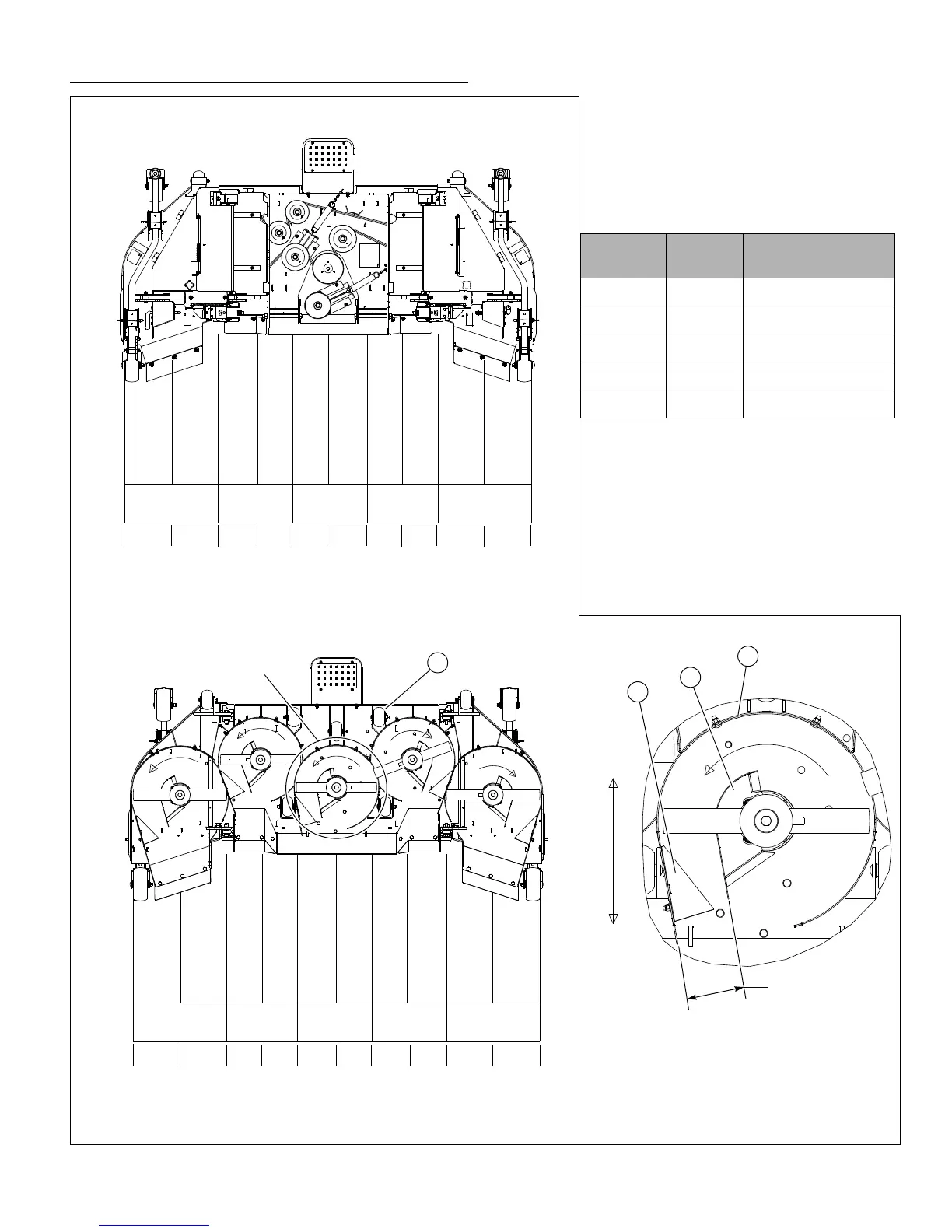

Deck Zone Chart
DETAIL A
Typical cutting chamber components
1. Spreader triangle
2. Rotary cut-off baffle
3. Front baffle
4. Anti-scalp wheel
CHAMBER
1
CHAMBER
2
CHAMBER
3
CHAMBER
4
CHAMBER
5
Zone 1 Zone 1 Zone 1 Zone 1 Zone 1 Zone 2 Zone 2 Zone 2 Zone 2 Zone 2
0
12 24 34 43 52 62 71 80 92
104
Left
Side
Right
Side
Deck Front
Inches from left edge of cut
BLADE IDENTIFICATION TABLE
CHAMBER
BLADE
COLOR
BLADE LENGTH (IN)
1RED 23.86
2RED 20.5
3BLACK 20.5
4BLACK 20.5
5 BLACK 23.86
CHAMBER
5
CHAMBER
4
CHAMBER
3
CHAMBER
2
CHAMBER
1
Zone 1 Zone 1 Zone 2 Zone 1 Zone 1 Zone 2 Zone 2 Zone 1 Zone 2 Zone 2
104
92 80 71 62 52 43 34 24 12
0
Right
Side
Left
Side
Deck Front
Inches from left edge of cut
See Detail A
4
FORWARD
Grass Discharge
Channel
REARWARD
2
3
1
