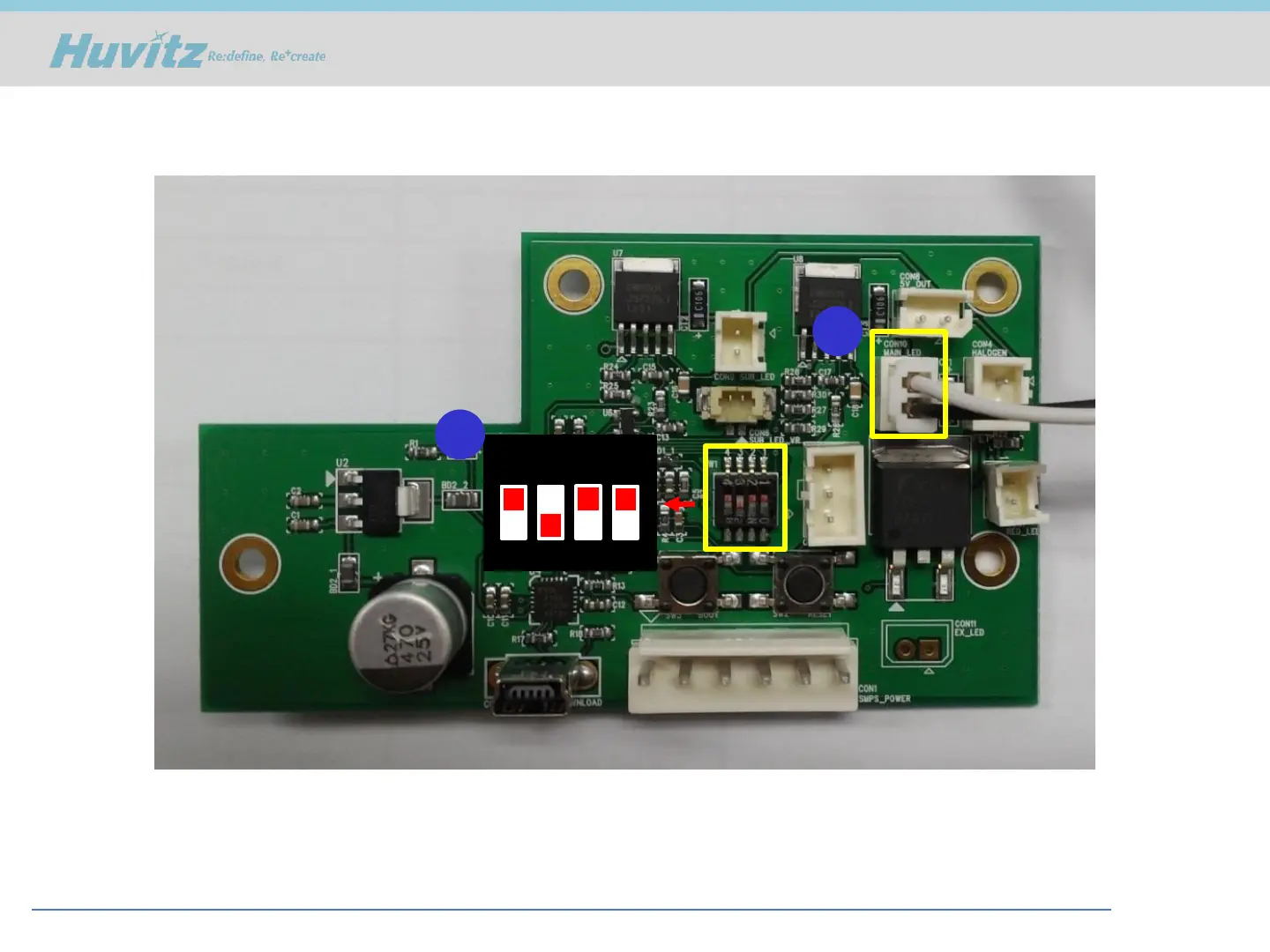

NEW SMPS Installation for reference
1. Connect main light connector to CON10 (MAIN_LED)
2. Adjust the switch as above the picture.
* Only for HS-5000, HS-7000, HS-5500, HS-7500
1
2
4 3 2 1
ON
1
2
□ In case of using a main light, LED LAMP(5000/7000/5500/7500)
