Hy-Gain 533 - Reflector Assembly; Direction Element Assembly

I ~." REFLECTOR BOOM
~O '1,.' LONG

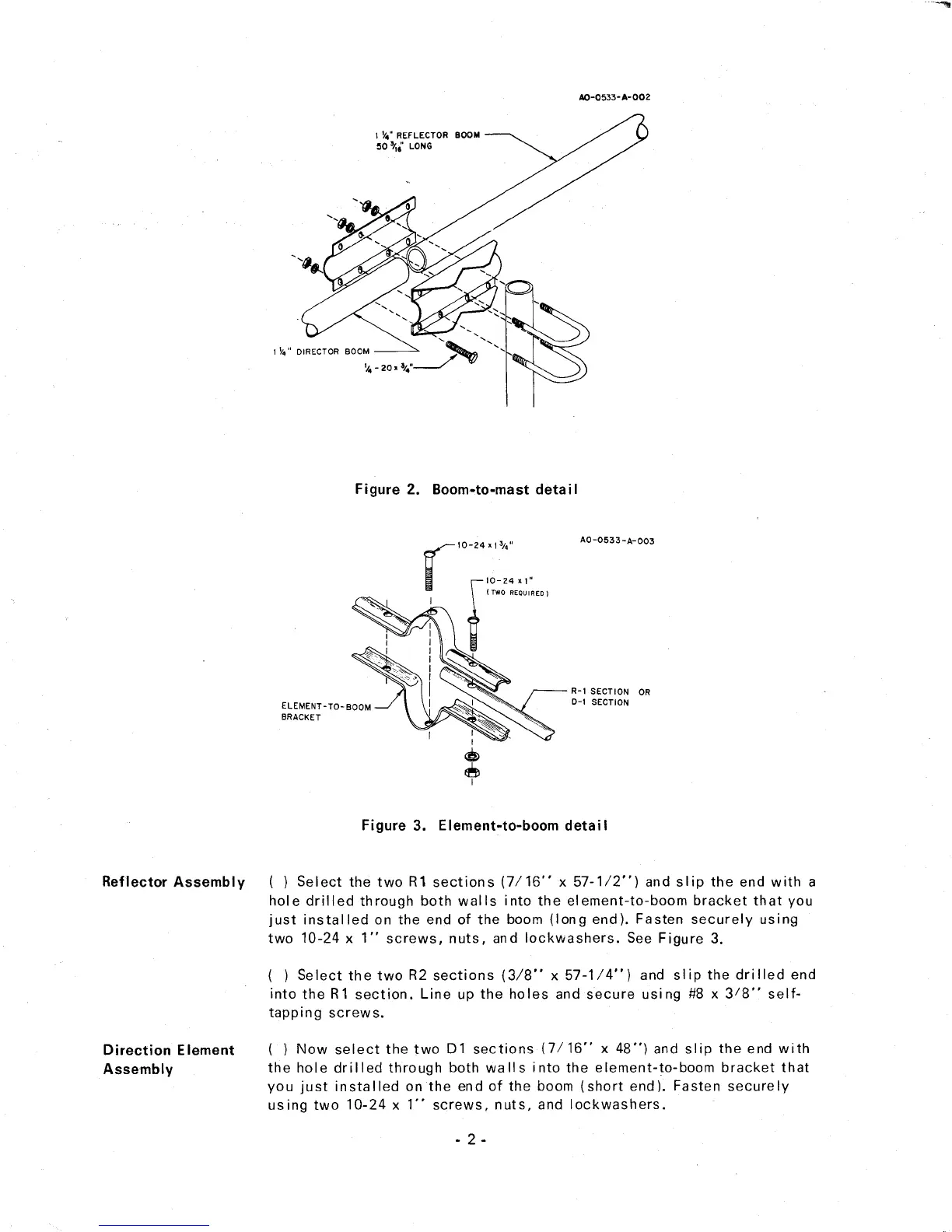

Reflector Assembly () Select the two Rl sections (7/16" x 57-112") and slip the end with a
hole drilled through both walls into the element-to-boom bracket that you
just installed on the end of the boom (long end). Fasten securely using
two 10-24 x 1" screws, nuts, and lockwashers. See Figure 3.
( ) Select the two R2 sections (3/8" x 57-1/4") and slip the drilled end
into the Rl section. Line up the holes and secure using #8 x 3
/
8" self-
tapping screws.
Direction Element
Assembly
( ) Now select the two 01 sections (7/16" x 48") and slip the end with
the hole drilled through both walls into the element-to-boom bracket that
you just installed onthe end of the boom (short end). Fasten securely
using two 10-24 x 1" screws, nuts, and lockwashers.
