Hy-Gain 533 - Coax Trimming; Connecting Coax; Connecting Coax to Driven Element; Coax Stripping Detail

#10 x %" R.H.
Y'6" CLAMP

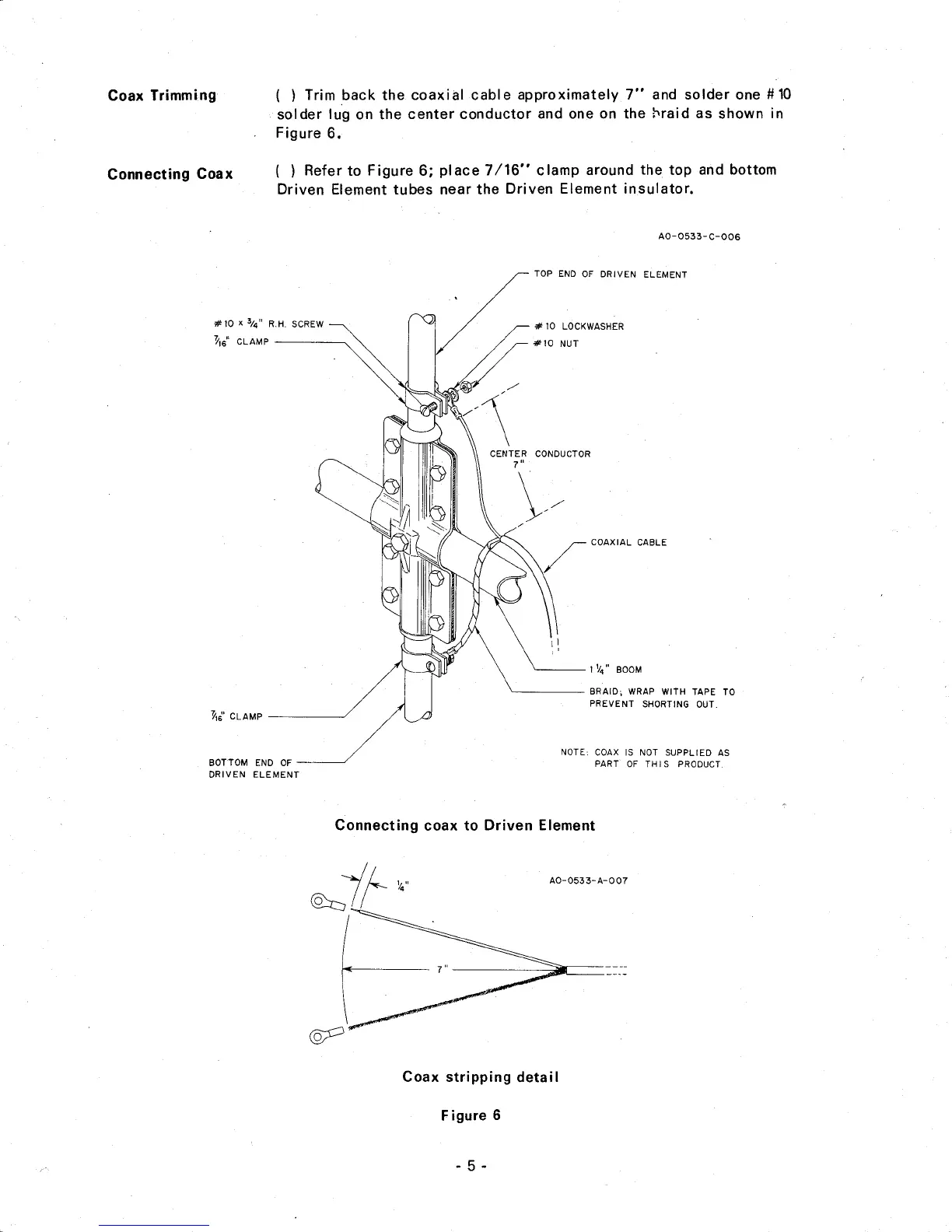

( ) Trim back the coaxial cable approximately 7" and solder one #10
solder lug on the center conductor and one on the l"Iraid as shown in
Figure 6.
( ) Refer to Figure 6; place 7/16" clamp around the top and bottom
Driven Element tubes near the Driven Element insulator.
CENTER CONDUCTOR
7"
\/
