1.3
INSTALLATION OF THE CONTROL PANEL
The V18 comes equipped with an articulating control panel. This panel is normally removed and placed on the
saw table for shipping purposes. The control panel MUST BE REINSTALLED PRIOR TO MACHINE START
UP. Take lifting precautions when installing the panel as it weights 150 LB.
To re-install the panel, follow these steps:
1 Remove all of the packing material.
2 Remove the base front cover from the machine to gain access to the interior of the base.
3 Lift the panel and move it into position as shown below. Insert the extra length of hoses and conduit
back into the front of the saw base enclosure.
4 Insert the four studs into their respective holes and fasten the panel using the supplied 3/8-16 UNC nuts
and washers.
5 Level the panel and fully tighten the nuts to lock assembly in place.
6 Place excess cord and hose length neatly inside the base enclosure and replace the base front cover.
WARNING! PANEL WEIGHT 150 LB.

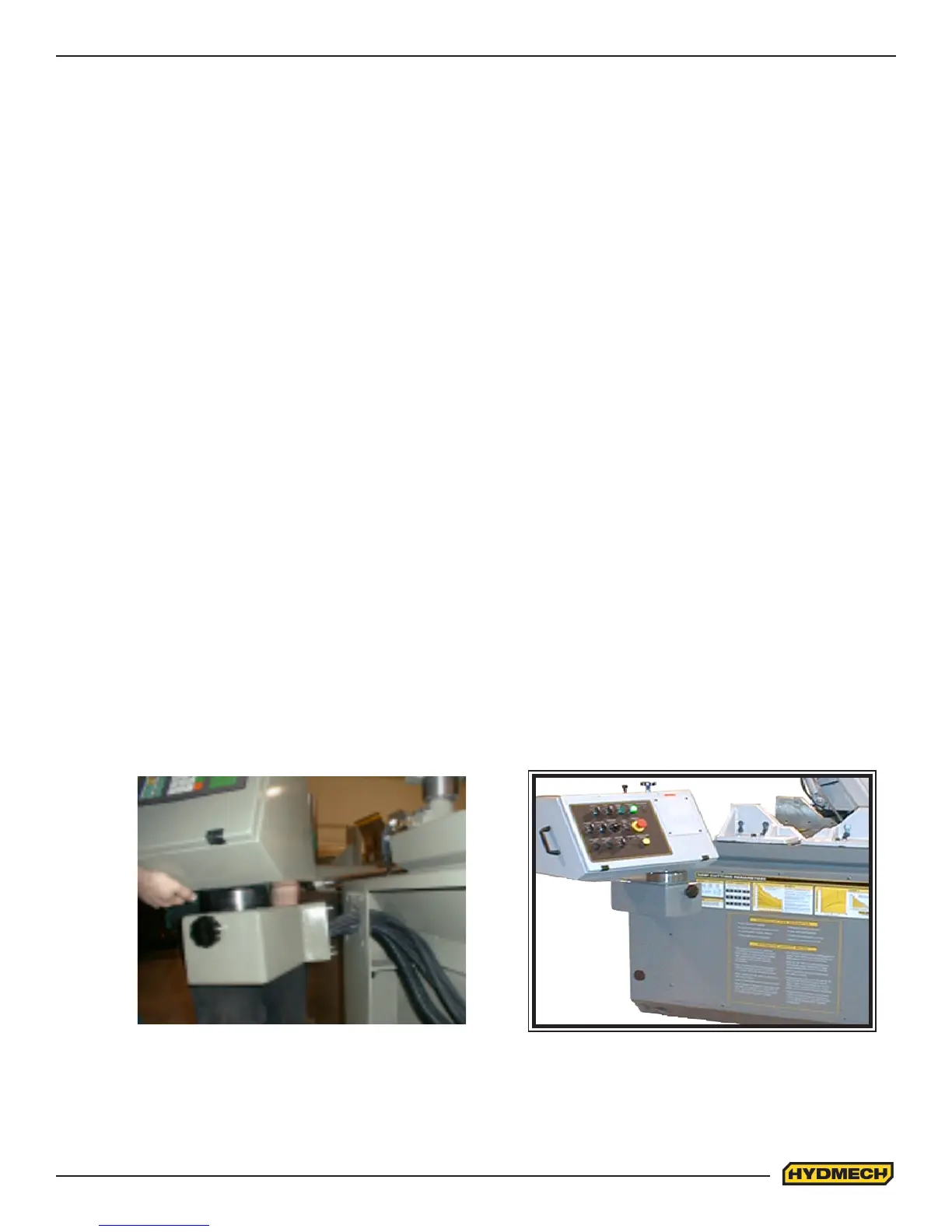

Placing the control panel on to the front hole
patern.
The control panel installed.
