EDS 300 9
Status: 19.09.2018 HYDAC ELECTRONIC GMBH Part No.: 669648 E
8.2 ANALOGUE OUTPUT
Depending on the model, the EDS 300 has one analogue output with a 4 .. 20 mA signal.
8.3 SETTING THE SWITCHING POINTS, HYSTERESES AND/OR SWITCHING VALUES
FOR THE WINDOW FUNCTION
• Press "mode" key
• "S.P.1" or "hi.1" is displayed
• Keep pressing the "mode" key until the required parameter is displayed (depending on the
basic setting: "S.P.1", "h.Y.1", "S.P.2", "h.Y.2", "hi.1", "Lo.1", "hi.2" or "Lo.2").
• After 2 seconds the actual setting flashes.
• Use the ▼ or the ▲ keys to alter the setting.
• Use the "mode" key to call up other parameters, if required, and alter the setting using the ▼
and the ▲ keys.
• If no keys are pressed for 3 seconds, the display changes back and the settings are saved.
NOTE:
• If "LOC" appears in the display when trying to alter the settings, programming is
disabled (locked).
Action: set programming enable to "ON"
• (see point 9 "Programming enable")
• If the ▼ or the ▲ key is held down during alteration, the value automatically advances.
• If a setting has been altered, "PRG" appears briefly in the display when the display is
switched over. The new setting is then saved in the unit.

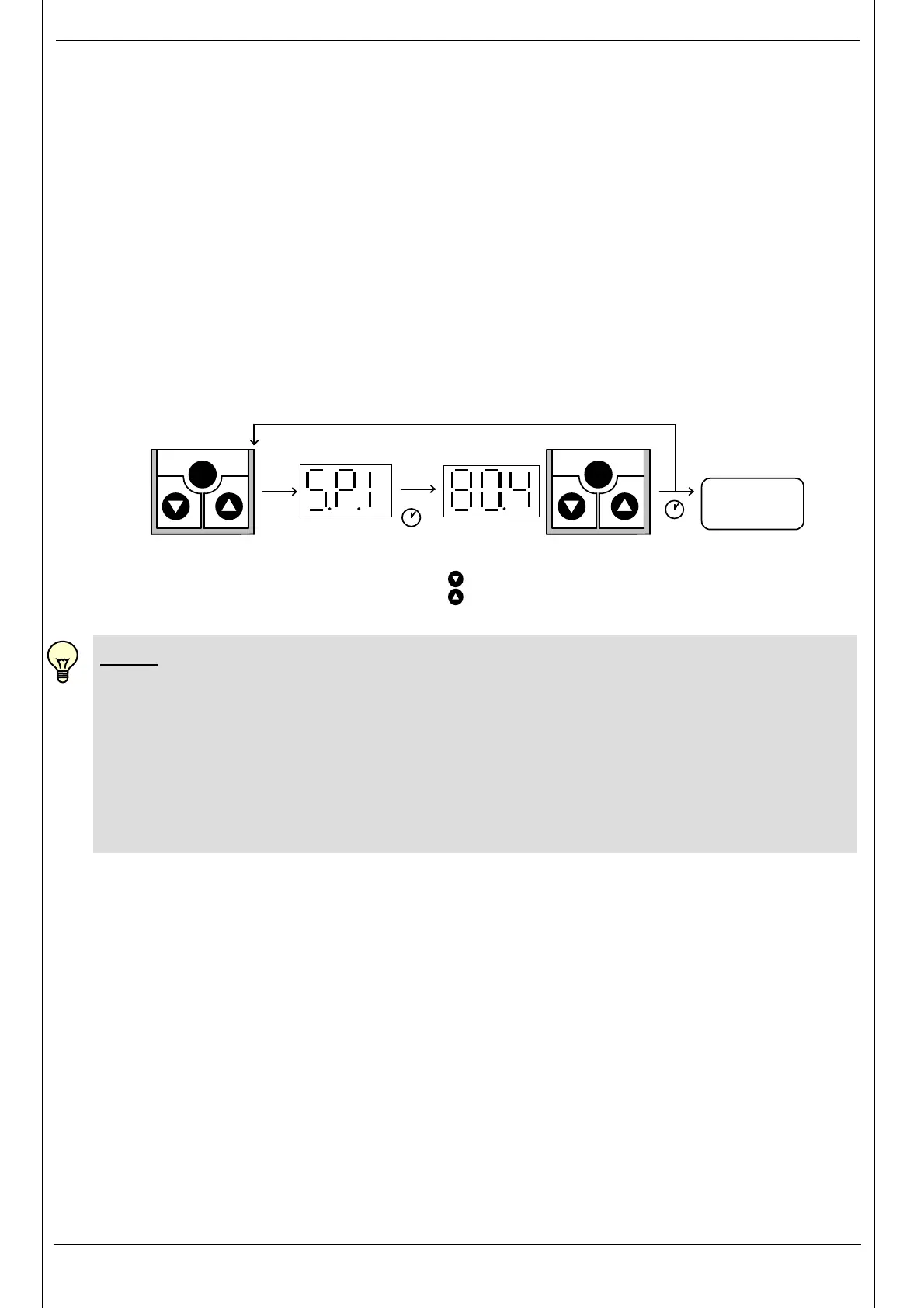

mode
2 s
3 s
pressure
display
press “mode” key until display set switching point

the required
parameter is reached.
mode

=smaller value
=larger value
