15.2 FOR MECHANICAL CONNECTION

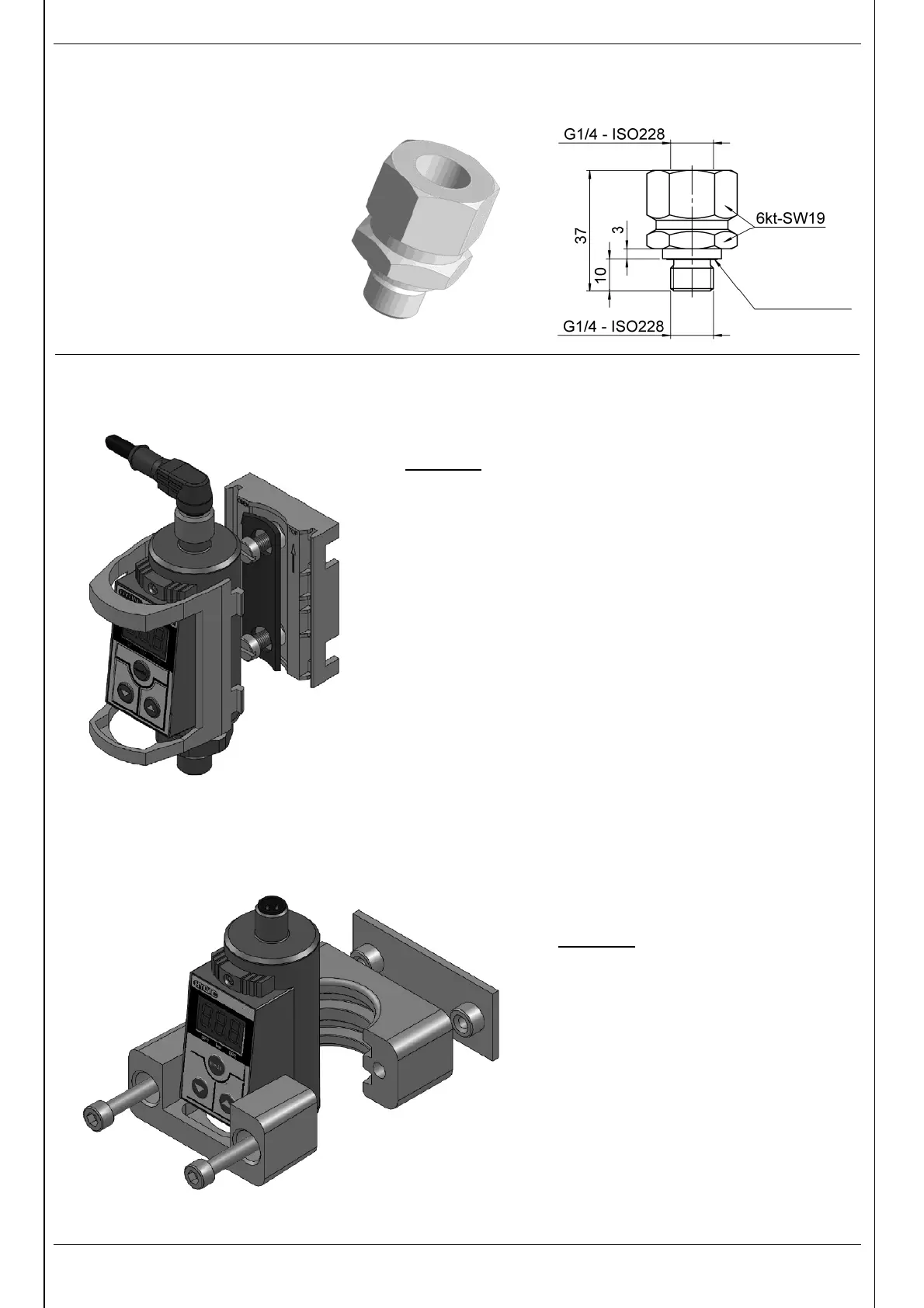

ZBM 14
Adapter
female thread G1/4 – male
thread G1/4 (rotating)
Part No.: 907818
ZBM 300 clamp for wall-mounting the EDS 300 (material: polypropylene)
Mounting:
• Glue damping strips into the
recesses of the base plate.
• Mount base plate, the top is
indicated by "OBEN ", "TOP " and
2 arrows.
• Insert EDS 300.
• Fit clip (only one possible position)
and press hard on the cross-pieces
until they engage.
ZBM 310 clamp for wall-mounting the EDS 300
material: polypropylene, aluminium AlSi12, steel)
Mounting:
• Weld on the steel base plate
• Mount EDS 300 according to
the illustration
elastomer
seal ring
DIN 3869
