Hydac EDS 300 - Accessories: Electrical Connectors (Part 2)

EDS 300 17
Status: 19.09.2018
HYDAC ELECTRONIC GMBH Part No.: 669648 E

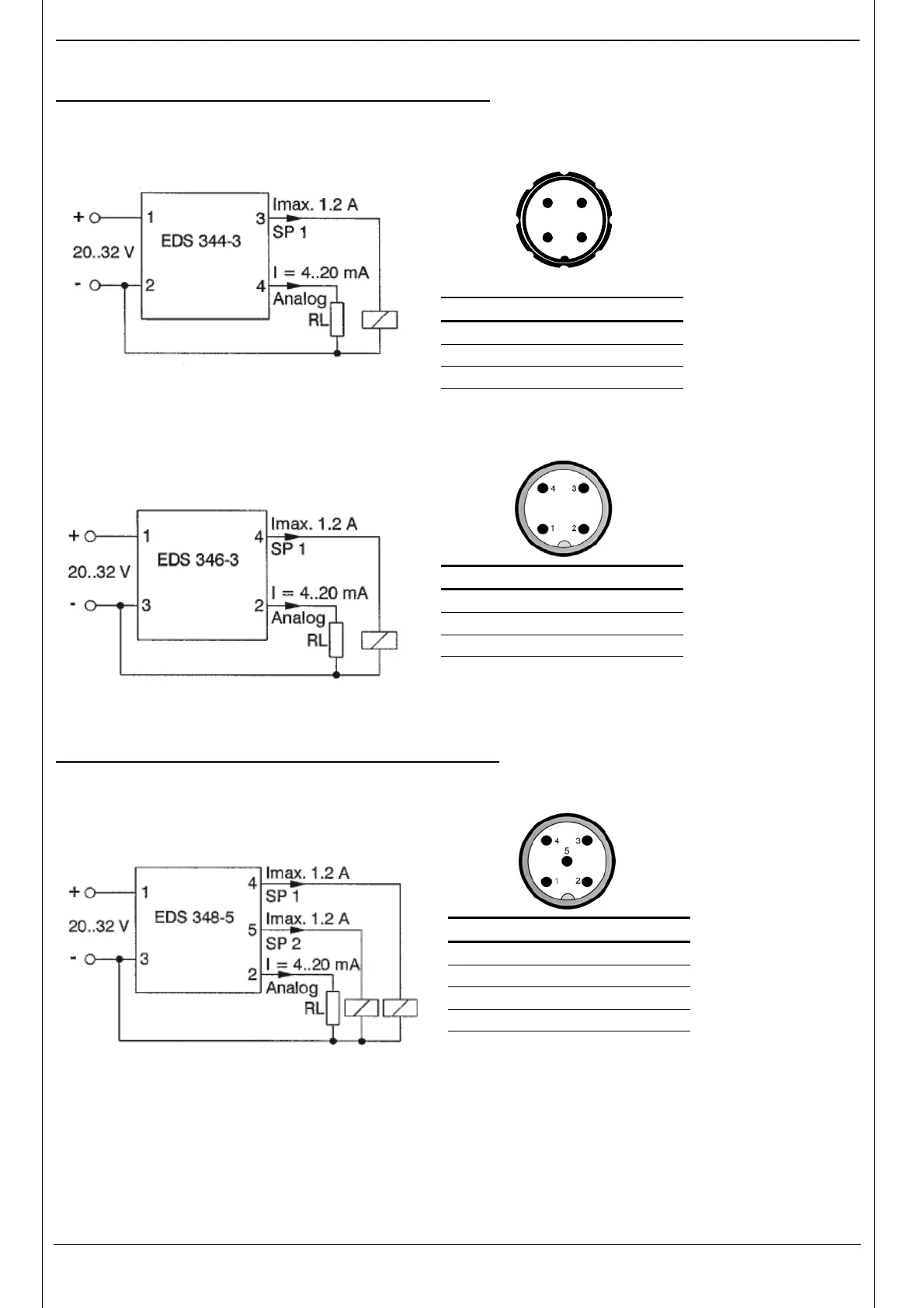

Model with 1 switching output and 1 analogue output
Male 4 pole Binder series 714 M18
Pin
1 + U
B
2 0 V
3 SP 1
4 Analogue
Male M12x1, 4 pole
Pin
1 + U
B
2 Analogue
3 0 V
4 SP 1
Model with 2 switching outputs and 1 analogue output
Male M12x1, 5 pole
Pin
1 + U
B
2 Analogue
3 0 V
4 SP 1
5 SP 2
2 3
1 4
